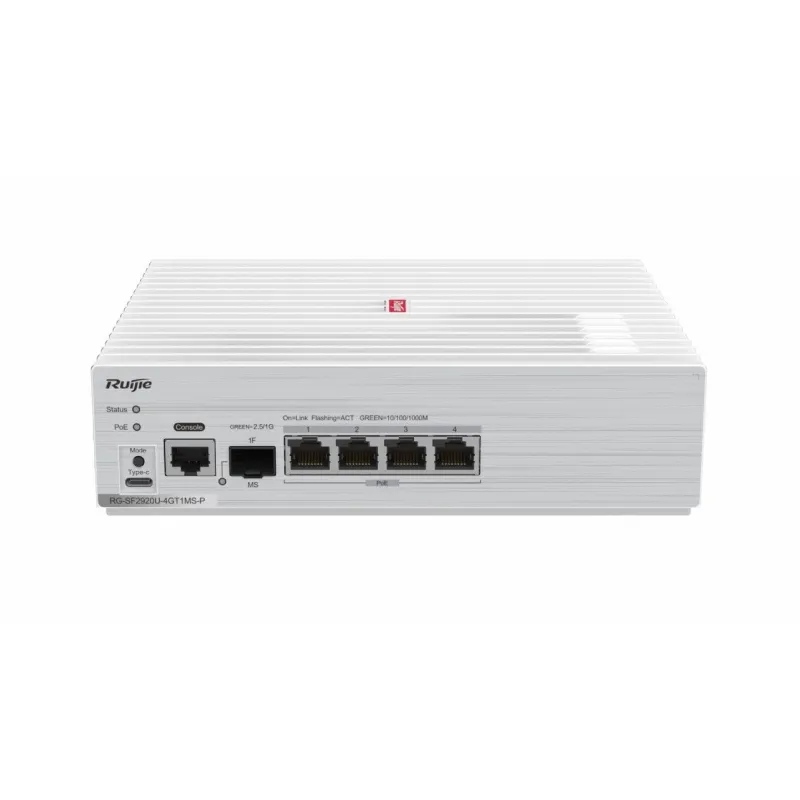

Ruijie RG-SF2920U-4GT1MS-P, 4-Port GE All-Optical PoE Switch, 2.5G Uplink Optical Port

Product Specification

Overview

Ruijie RG-SF2920U-4GT1MS-P, 4-Port Gigabit POE Switch, 2.5G SFP Port, Surge protection 8kV, POE 45W รองรับ 802.1Q VLANs

Fixed ports

4 × 10/100/1000M adaptive electrical ports, 1 × 1000M/2.5G
SFP port, fixed single AC power supply; electrical ports 1–4 support PoE/PoE+; maximum PoE output power: 45 W

Switching capacity

13Gbps

Packet forwarding rate

9.7Mbps

PoE

In compliance with IEEE 802.3af (15.4 W) and IEEE 802.3at (30W)
Automatic and energy-efficient power supply management modes
Warm start to implement uninterrupted power supply Port priority
Scheduled power-on/off of PoE ports

MAC address table

Static MAC addresses
MAC address filtering

802.1Q VLAN

The following items are supported:
4094 IEEE 802.1Q VLANs
Port-based VLAN

DHCP

The following are supported:
DHCP client
DHCP snooping

Security features

Filtering of invalid MAC addresses
Broadcast storm suppression
Password protection
CPP
Port protection

EEE

APD port sleeping

Management features

CLI-based configuration and management not required, visualized Web management
IoT MQTT
Syslog/Debug, NTP/SNTP

Size (W × D × H) (mm)

200 × 170 × 55

Power supply

AC input:
Rated voltage range: 200 V to 240 V
Maximum voltage range: 180 V to 264 V
Frequency: 50 Hz to 60 Hz
HVDC input:

Fan

Fanless design, natural heat dissipation

Temperature

Operating temperature: 0°C to 45°C
Storage temperature: –40°C to 70°C

Humidity

Operating humidity: 5% to 95% RH
Storage humidity: 5% to 95% RH

ประกัน

3 ปี
