Ruijie RG-SF2920 Series Switch Datasheet
RG-SF2920U-8GT1MS Highlight Features
- Various port combinations, rate increase, surge protection greater than 8 kV, 8 × 10/100/1000Mbps copper ports with auto-negotiation, and 1 × 2.5G uplink fiber port
- 2.5G uplink fiber port for a higher switching rate
- Reliability enhancement, metal enclosure, metal Ethernet ports, independent optical transceiver design, and more stable data forwarding
- Integrated deployment, achieving physical isolation of internal and external networks more easily
- Easy and effective network-wide management, ensuring high security and reliability for networksSmall size, flexible and fast installation, efficient heat dissipation, and low noise
Product Specification |
Overview | Ruijie RG-SF2920U-8GT1MS, 8-Port Gigabit Switch, 2.5G SFP Port, Surge protection 8kV รองรับ VLAN |

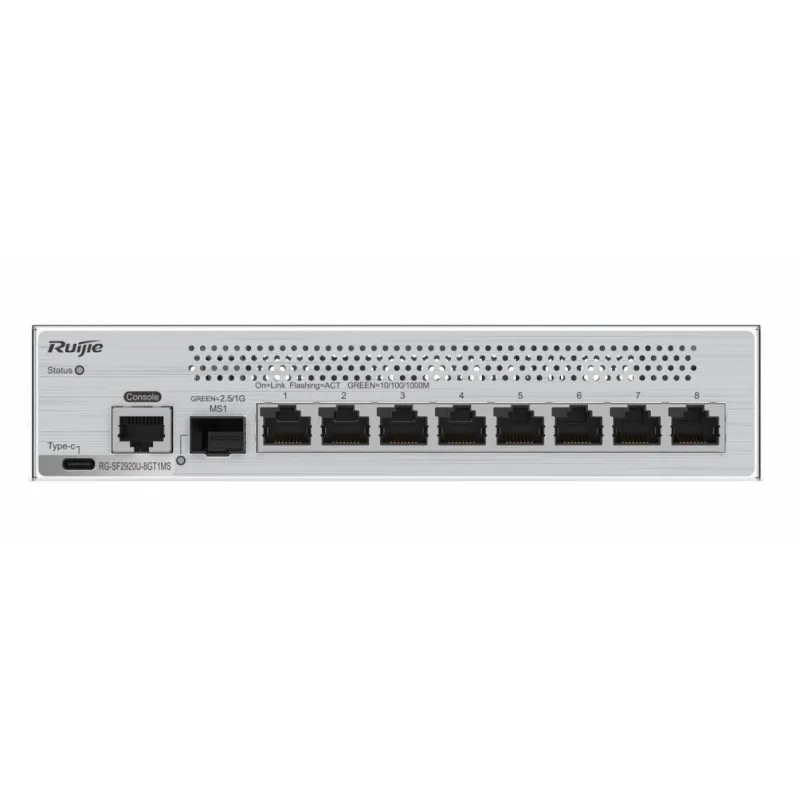

Fixed ports | 8 × 10/100/1000M adaptive electrical ports
1 × 1000M/2.5G SFP optical port, fixed single AC power supply |
Switching capacity | 21Gbps |
Packet forwarding rate | 16Mbps |
PoE | Not supported |
MAC address table | Static MAC addresses
MAC address filtering |
802.1Q VLAN | The following items are supported:
4094 IEEE 802.1Q VLANs
Port-based VLAN |
DHCP | The following are supported:
DHCP client
DHCP snooping |
Security features | Filtering of invalid MAC addresses
Broadcast storm suppression
Password protection
CPP
Port protection |
EEE | APD port sleeping |
Management features | CLI-based configuration and management not required, visualized Web management
IoT MQTT
Syslog/Debug, NTP/SNTP |
Size (W × D × H) (mm) | 200 × 170 × 43.6 |

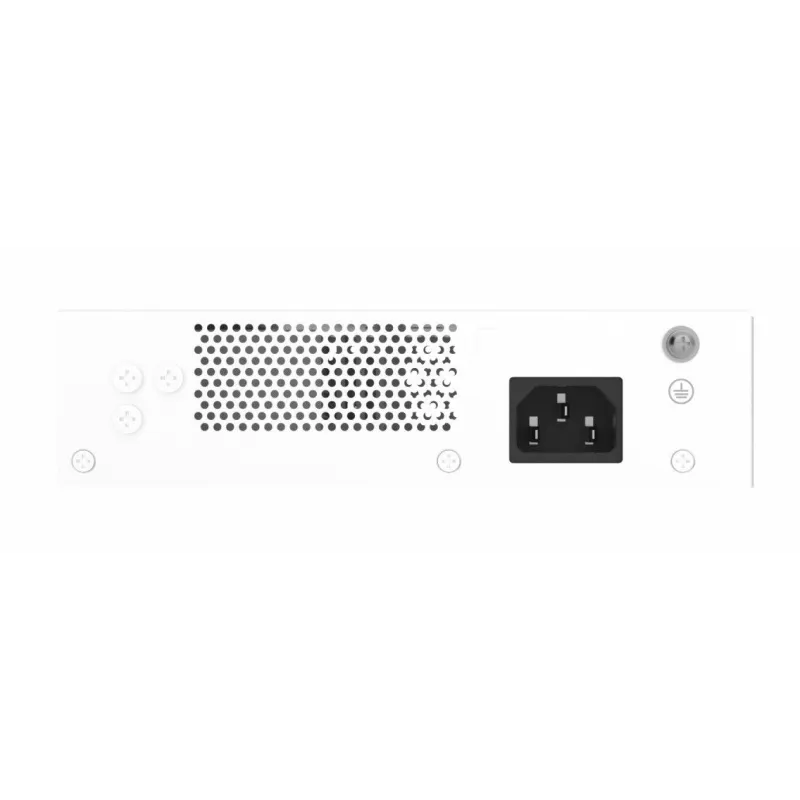

Power supply | AC input:
Rated voltage range: 200 V to 240 V
Maximum voltage range: 180 V to 264 V
Frequency: 50 Hz to 60 Hz
HVDC input: |
Fan | Fanless design, natural heat dissipation |
Temperature | Operating temperature: 0°C to 45°C
Storage temperature: –40°C to 70°C |
Humidity | Operating humidity: 5% to 95% RH
Storage humidity: 5% to 95% RH |
ประกัน | 3 ปี |

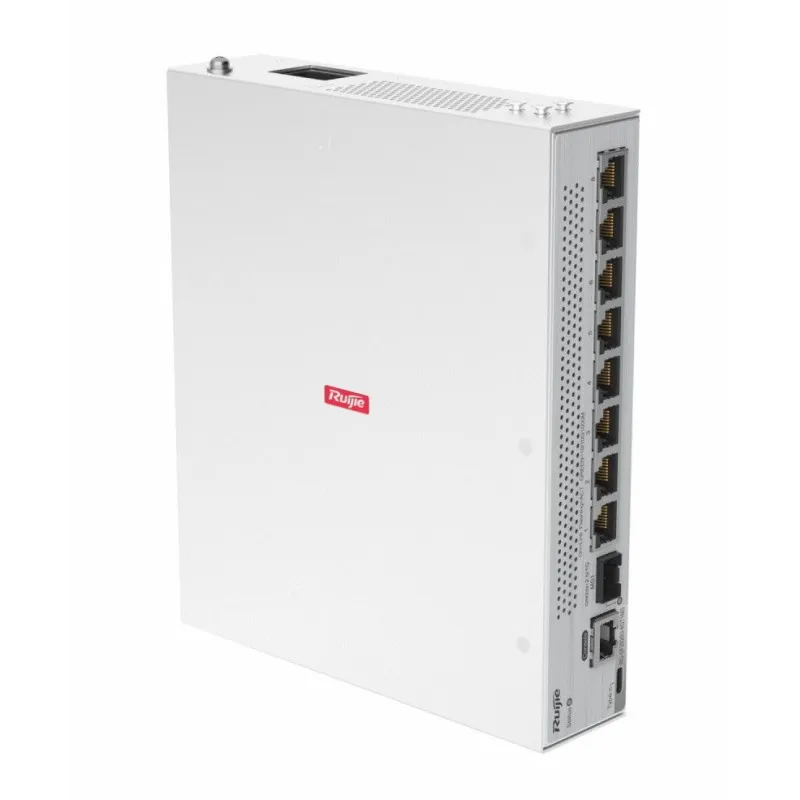

All-Optical Ethernet Switch RG-SF2920U-8GT1MS
The Ethernet architecture and novel Fiber-to-the-Room (FTTR) deployment delivers 2.5G fiber-to-the-room access.
This switch provides 8 × 1G Ethernet ports with auto-negotiation, 1 × 2.5G uplink optical port, rich interfaces, supporting full service expansion.
Small Size, Space Saving, Aesthetically Pleasing Design,
and No Security Concern
2.5G Uplink Optical Port for a Higher Switching Rate
One 2.5G optical port ensures faster data forwarding without packet loss, which properly meets requirements.
Greater data processing capability to address increasing multi-service needs.
Enhanced Reliability, Independent Optical Transceiver Design,
and More Stable Data Forwarding
In the traditional POL optical solution, ONUs use an on-board optical transceiver design. However, there is a trade-off between the signal quality and welding reliability, resulting in a high failure rate. The Simplified Optical Ethernet solution adopts point-to-point transmission and provides a more reliable independent optical transceiver design. The high-quality signal transmission is free from external interference and data forwarding is more stable.
Managed by the INC Controller to Achieve Easy and Efficient O&M Management
You can check the link health status, handle alarms and troubleshoot faults through the INC, which dramatically improves the O&M efficiency.
A switch can be flexibly replaced based on service needs without reconfiguration. Service ports supports auto-sensing, achieving automatic O&M.The switch automatically completes registration and configuration after it accesses the all-optical network, achieving plug and play, no commissioning and fast onboarding.
