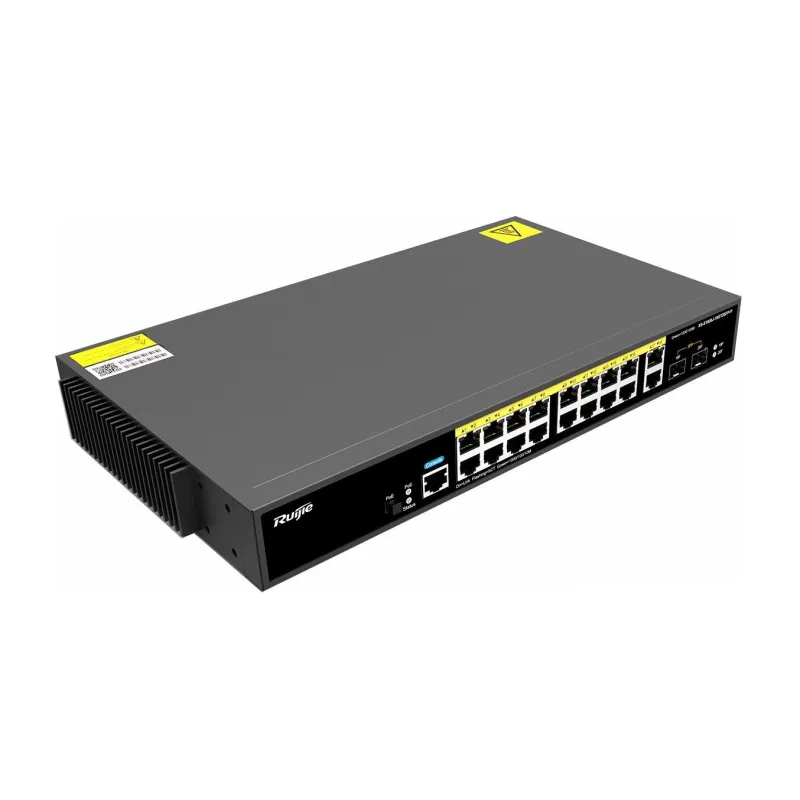

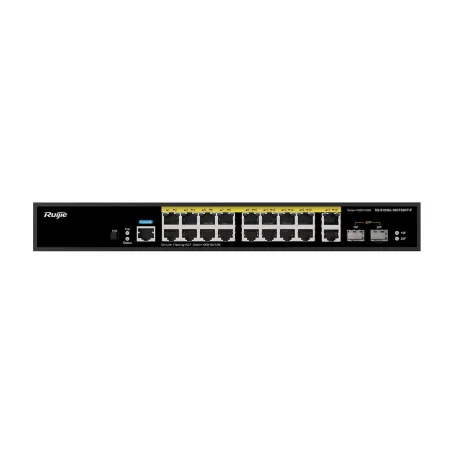

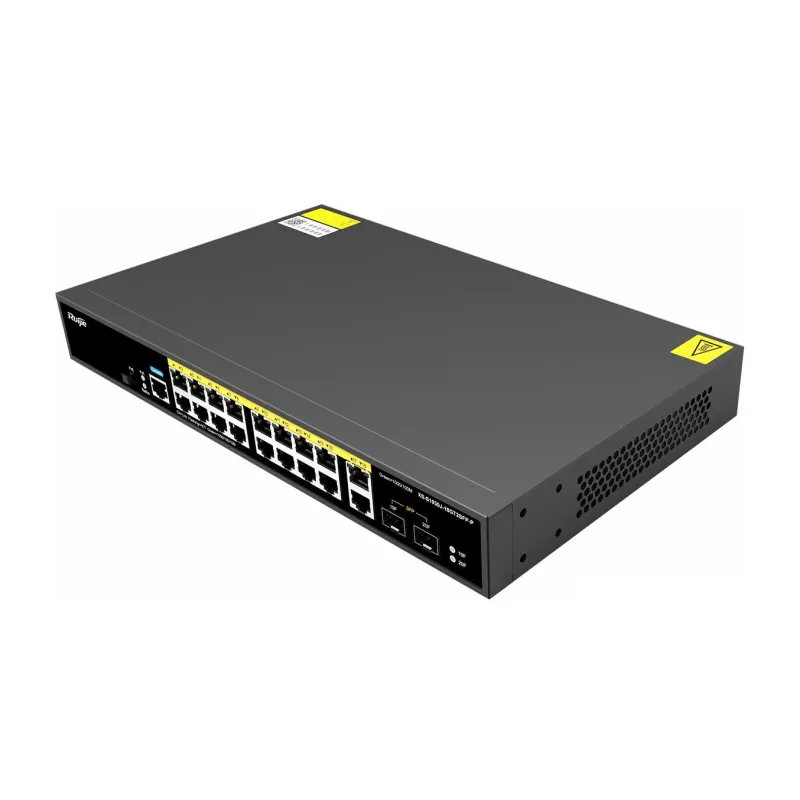

Ruijie XS-S1930J-18GT2SFP-P L2-Managed Gigabit POE Switch 18 Port, 2 Port SFP

Product Specification

Overview

Ruijie XS-S1930J-18GT2SFP-P L2-Managed Gigabit POE Switch 18 Port, 2 Port SFP รองรับ VLAN, LACP, IGMP Snooping รองรับ Managed ผ่าน Ruijie Cloud

จ่ายไฟ POE มาตรฐาน 802.3af/at 16 Port กำลังไฟสูงสุด 200W

Power over Ethernet

PoE/PoE+ Enabled Ports

IEEE 802.3af (PoE)

IEEE 802.3at (PoE+)

PoE Power Budget

Physical

Packet Buffer

4Mbits

CPU Memory

256MB

Flash

64MB

Dimensions (WxDxH)

340 x 200 x 44 mm

Unit Weight

≤ 2.5kg

Power Supply

Type

Internal power supply

AC Voltage

100~240V AC 50/60Hz

Power Consumption

≤ 250W

Cooling

Fanless

Certifications

VCCI Class A

Surge

Communication port lightning protection common mode 6kV
Power port lightning protection common mode 4kV, differential mode 2kV

RoHS

EEE(IEEE 802.3az)

Operating Temperature

-5ºC to 50ºC

Storage Temperature

-40ºC to 70ºC

Operating Humidity

10% to 90% RH

Storage Humidity

5% to 95% RH

Operating Altitude

-50 to 2000m

MTBF

>200,000 hours

Performance

Switching Capacity

40Gbps

Forwarding Rate

30Mpps

ARP Table Size

256

MAC Table Size

8000

L2 Switching

STP, RSTP, MSTP

Port Grouping

LACP, 8 ports

VLAN

(IEEE 802.1Q/ Private VLAN/ MAC VLAN/ Voice VLAN/ Protocol VLAN / VLAN Mapping)

IGMP Snooping

v1/v2

L3

IPv4 Routing

IPv6 Routing

Released in the future

Ping

Traceroute

DHCP Client

DHCP Relay

Released in the future

RLDP

64MB

Security

CPP

NFPP

Released in the future

SSH

SSL

IEEE 802.1X Released

Released in the future

Port Security

ACL

DHCP Snooping

Trusted Port Deployment

QoS

Stream Classification

Classification based on IEEE 802.1p/DSCP

Rate-Limit

Rate-Limit on ingress/egress traffic on interface

Congestion Avoidance

Tail drop

Congestion Management

8 queues

Management

Web User Interface

Loop Port Visualization

The detected loop port is displayed on the web

HTTP/HTTPS

Ruijie Cloud Management

TR069

Command Line Interface

Telnet / Console / SSH

SYSLOG

NTP

DNS Client

SPAN

Public MIBs

Private MIBs

Zero Config

Requiring connection with Ruijie Cloud Cloud

Firmware Upgrade

Upgrade via Ruijie Cloud / WEB / CLI

ประกัน

3 ปี
