Network Speaker

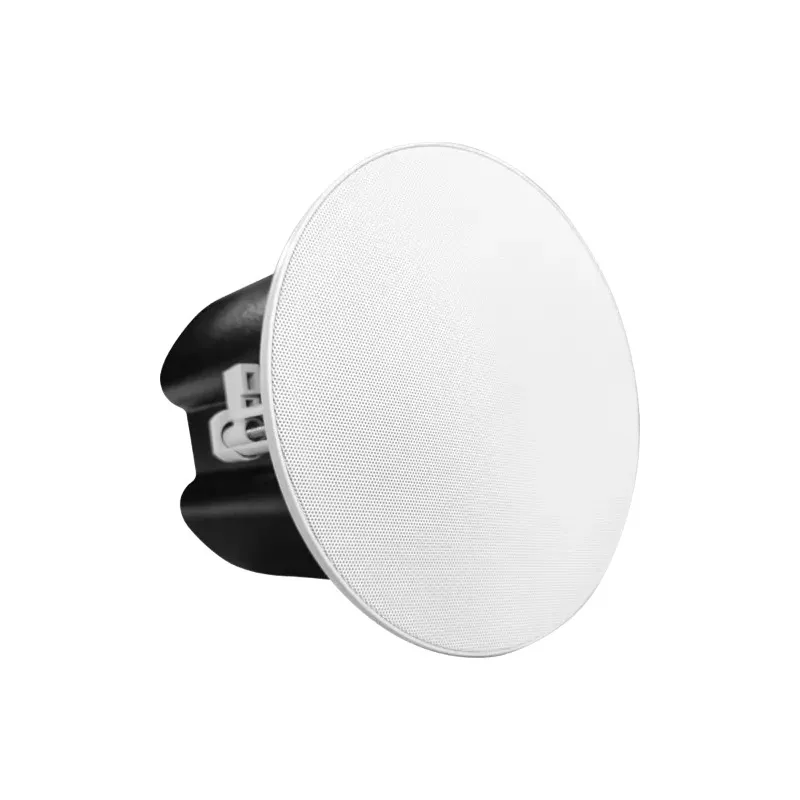

Zycoo SC10 Network Ceiling Speaker ลำโพงคอลัมน์ผ่าน SIP Protocol Built-in Class D Amplifier 10Wรองรับ POE
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
Zycoo SC10 User Guide
Zycoo SC10 Quick Install Guide
Product Specification | |
Overview | Zycoo SC10 Network Ceiling Speaker Network Speaker ลำโพงแบบติดบนฝ้า Built-in Class D Amplifier 10W เสียงครอบคลุมระยะ 30 ตารางเมตร รองรับ SIP Protocol รองรับ POE |
| Speaker Component | 4" woofer unit + 1" tweeter unit |
Sensitivity | 90dB/1m/1W |
Max sound pressure level | 100dB |
Amplifier | Built-in Class D Amplifier |
Coverage pattern | 90°H 90°V 30m² |
Rate power | 8Ω 10W |
Frequency range | 70Hz – 20KHz |
Material | - |
Acoustics | Mono |
Audio | |
Audio codecs | G.722, G.711 A-law, G.711 U-law, Opus |
Audio streaming | MP3 sampling rate 8 – 48KHz, bit rate 64 – 320kbps, mono or Stereo |
Network | |
Interface | RJ45 10BASE-T/100BASE-TX PoE |
4G LTE modules | - |
Network protocol | SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP,RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH |
Administration | |
Configuration | Web interface or auto provisioning server |
Provisioning method | MQTT IoT Protocol |
Mechanical Properties | |
Memory | 128MB RAM, 256MB Flash |
Power Input | PoE IEEE802.3at or DC 12V-2A |
Casing | Black plastic cement rear cover |
IP Rating | - |
Weight | 1.4KG |
Dimension | 150mm(H)*205mm(W)*205mm(D) |
Mounting Method | high strength anti-corrosion clamps |
Key | Press and hold for 1 second and release to broadcast the IP address. |
Environmental | |
Installation environment | Indoor |
Operating temperature | -20℃ - 50℃ (-4℉ - 122℉) |
Approvals | EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014,EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC Part 15B |
รับประกัน | 1 ปี |
