แบรนด์: Zycoo
Zycoo SC15 User Guide
Zycoo SC15 Quick Install Guide
Product Specification |
|
Overview |

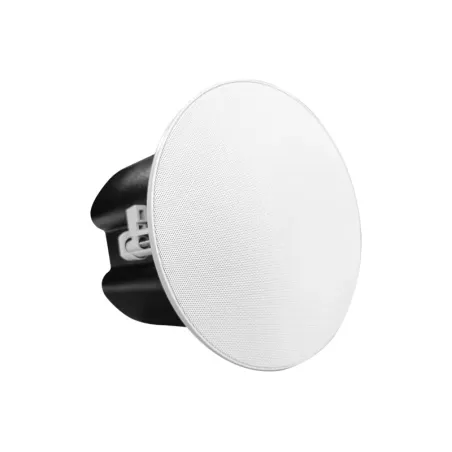

Zycoo SC15 Network Ceiling Speaker Network Speaker ลำโพงแบบติดบนฝ้า Built-in Class D Amplifier 15W เสียงครอบคลุมระยะ 30 ตารางเมตร รองรับ SIP Protocol รองรับ POE |
Speaker Component |
5.25" woofer unit + 1" tweeter unit |
Sensitivity |
85dB/1m/1W |
Max sound pressure level |
100dB |
Amplifier |
Built-in Class D Amplifier |
Coverage pattern |
90°H 90°V 30m² |
Rate power |
8Ω 15W |
Frequency range |
70Hz – 20KHz |
Material |
- |
Acoustics |
Mono |
Audio |
|
Audio codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
Audio streaming |
MP3 sampling rate 8 – 48KHz, bit rate 64 – 320kbps, mono or Stereo |
Network |
|
Interface |
RJ45 10BASE-T/100BASE-TX PoE |
4G LTE modules |
- |
Network protocol |
SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP,RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH |
Administration |
|
Configuration |
Network Speaker Web interface or auto provisioning server |
Provisioning method |
MQTT IoT Protocol |
Mechanical Properties |
|
Memory |
128MB RAM, 256MB Flash |
Power Input |
PoE IEEE802.3at or DC 12V-2A |
Casing |
Black plastic cement rear cover |
IP Rating |
- |
Weight |
3.45KG (7.6lb) |
Dimension |
φ240 x 210 mm (7.2 x 6.3 in) |
Mounting Method |
high strength anti-corrosion clamps |
Key |
Press and hold for 1 second and release to broadcast the IP address. |
Environmental |
|
Installation environment |
Indoor |
Operating temperature |
-20℃ - 50℃ (-4℉ - 122℉) |
Approvals |
EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014,EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC Part 15B |
รับประกัน |
1 ปี |
