AP9665 Access Point Product Specification |

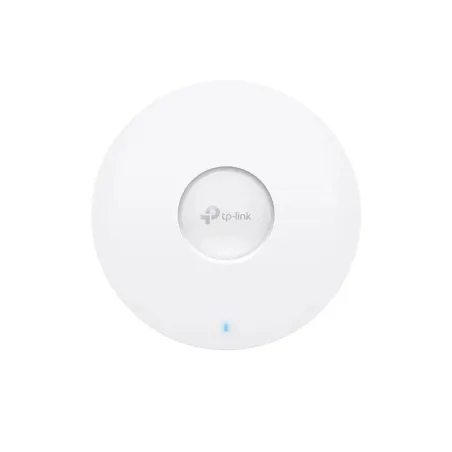

Overview | TP-LINK AP9665 AX3600 Ceiling Mount WiFi 6 Access Point 160MHz, Dual-Band 2.4/5GHz, Port LAN 2.5Gbps, กระจายรอบทิศทาง บริหารจัดการผ่าน Omada Controller |
HARDWARE FEATURES |

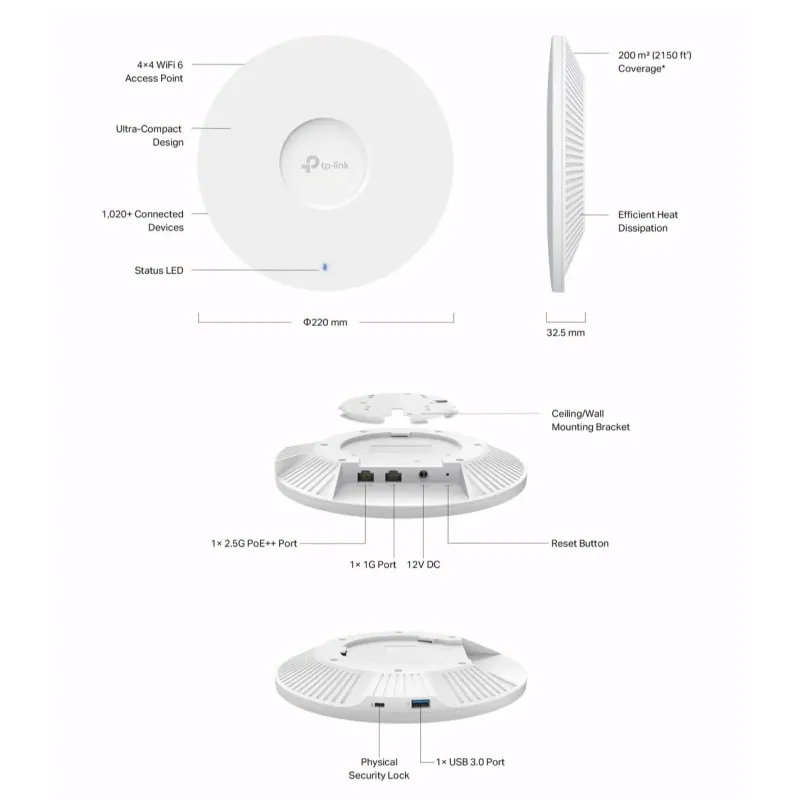

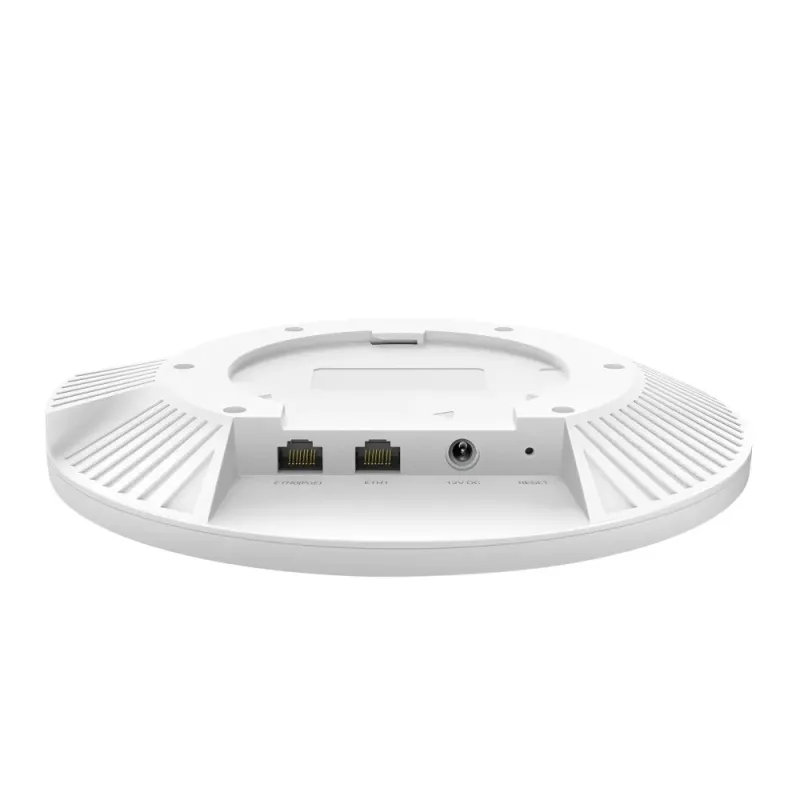

| Interface | 1× 2.5G RJ45 Port + 1x 1G RJ45 Port |
| Button | Reset |
| Power Supply | 802.3bt PoE or 12V/2.5A DC |
| Power Consumption | 28 W (For PoE);
27 W (For DC) |

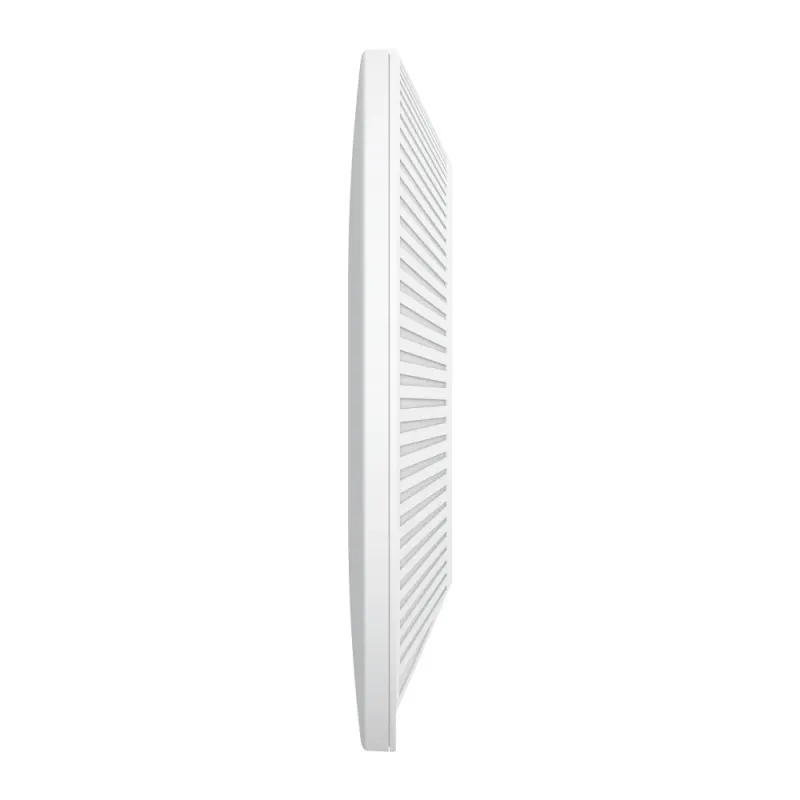

| Dimensions ( W x D x H ) | 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm) |
| Antenna Type | Internal Omni
• 2.4 GHz: 4× 4 dBi
• 5 GHz: 4× 4 dBi |
| Bluetooth | V5.2 |
| Mounting | Ceiling /Wall Mounting (Kits included)
Junction Box mouting |
WIRELESS FEATURES |
| Coverage | 200㎡(2150ft²)§ |
| Concurrent Clients | 1,020+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | • 5 GHz: 2402 Mbps
• 2.4 GHz: 1148 Mbps |
| Wireless Functions | • 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (16 SSIDs, 8 on each band)
• Enable/Disable Wireless Radio
• Enable/Disable SSID Broadcast
• Guest Network
• Automatic Channel Assignment
• Transmit Power Control: Adjust Transmit Power on dBm
• QoS(WMM)
• Seamless Roaming △
• Omada Mesh△
• Beamforming
• MIMO(2.4GHz:4*4 SU-MIMO/MU-MIMO DL; 5GHz: 4*4 SU-MIMO/MU-MIMO DL)
• Rate Limit: Based on SSID/Client
• Load Balance
• Airtime Fairness
• Band Steering
• RADIUS Accounting
• PPSK Pro
• Hotspot 2.0: to be supported with subsequent software update
• MAC Authentication
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics
• Static IP/Dynamic IP |
| Wireless Security | • WIDS/WIPS△
• Captive Portal Authentication△
• Access Control
• Maximum number of MAC Filter: 4000
• Wireless Isolation Between Clients
• VLAN
• WIDS/WIPS△
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • CE:
< 20 dBm (2.4GHz, EIRP)
< 23dBm (5 GHz, band1&band 2, EIRP)
< 28 dBm (5 GHz,band 3, EIRP) |
MANAGEMENT |
| Omada App | Yes |
| Centralized Management | • Omada Pro Software Controller
• Omada Pro Cloud-Based Controller |
| Cloud Access | Yes. Require the use of Omada Pro Cloud-Based Controller, or Omada Pro Software Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Require the use of Omada Pro Cloud-Based Controller. |
OTHERS |
| Certification | CE, FCC, RoHS |
| Package Contents | • AP9665
• Ceiling/Wall Mounting Kits
• Installation Guide |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
รับประกัน | Limited lifetime |
|
|
