Review TP-Link Omada Network Controller

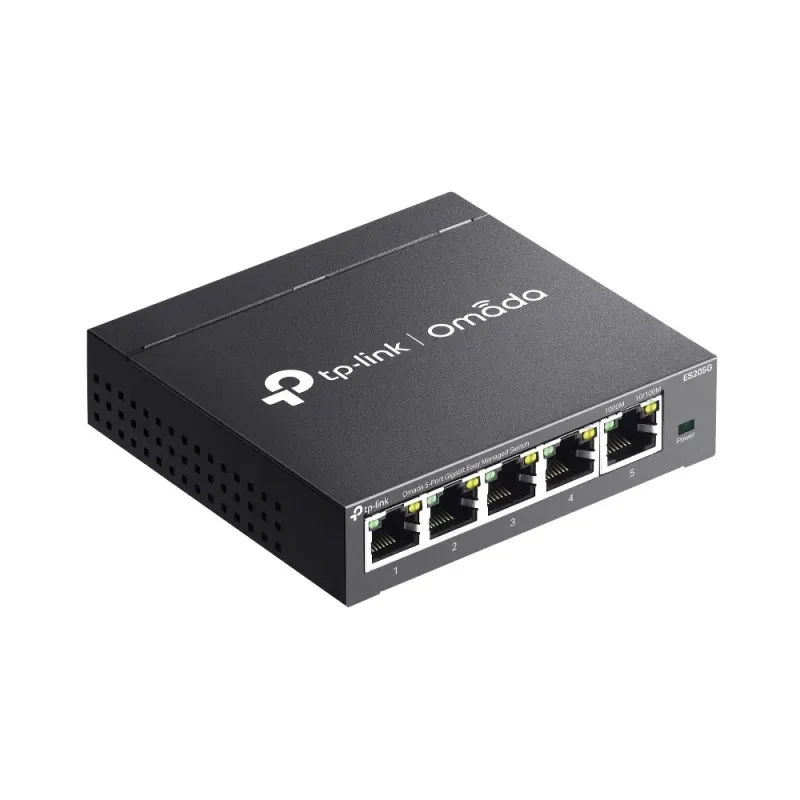

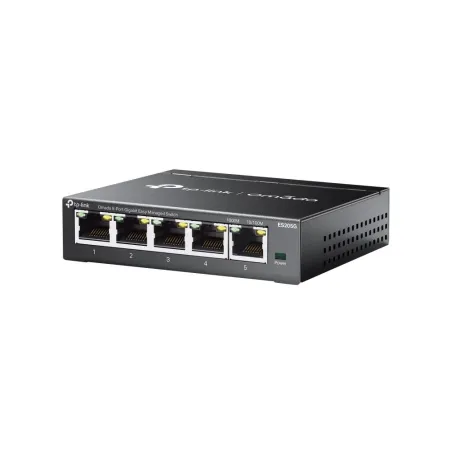

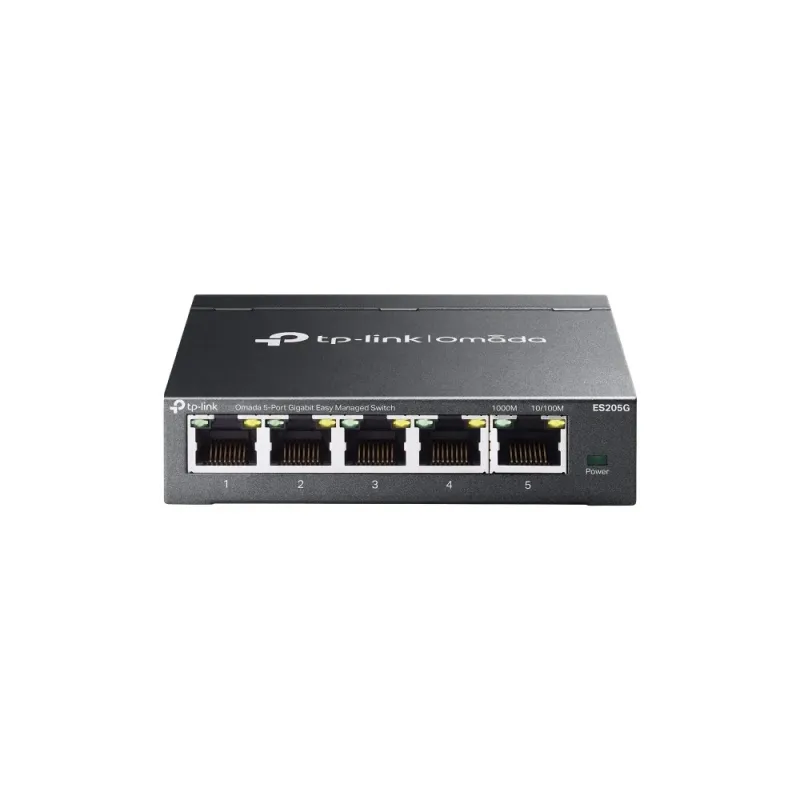

TP-Link ES205G
Omada 5-Port Gigabit Easy Managed Switch
- 5× 10/100/1000Mbps RJ45 ports
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
- Durable metal casing and desktop/wall mounting design
TP-Link ES205 Product Specification |
Overview | TP-LINK ES205G Omada 5-Port Gigabit Easy Managed Switch รองรับ VLAN 802.1q, Port Mirroring, Loop Prevention, IGMP Snooping |
HARDWARE FEATURES |
| Interface | • 5× 10/100/1000 Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |

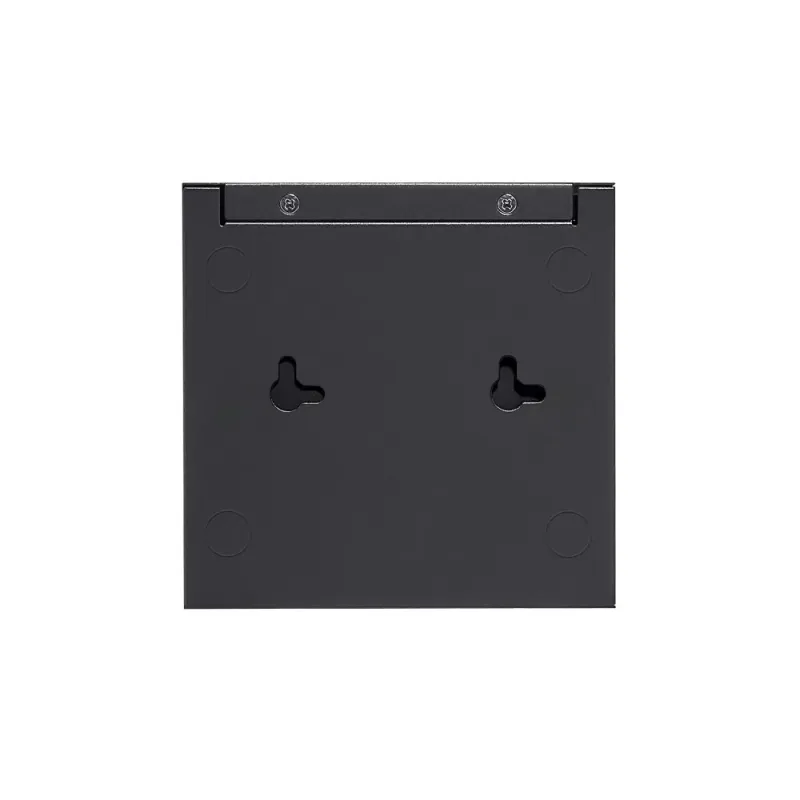

| Installation | • Desktop
• Wall Mount |
| Physical Security Lock | √ |

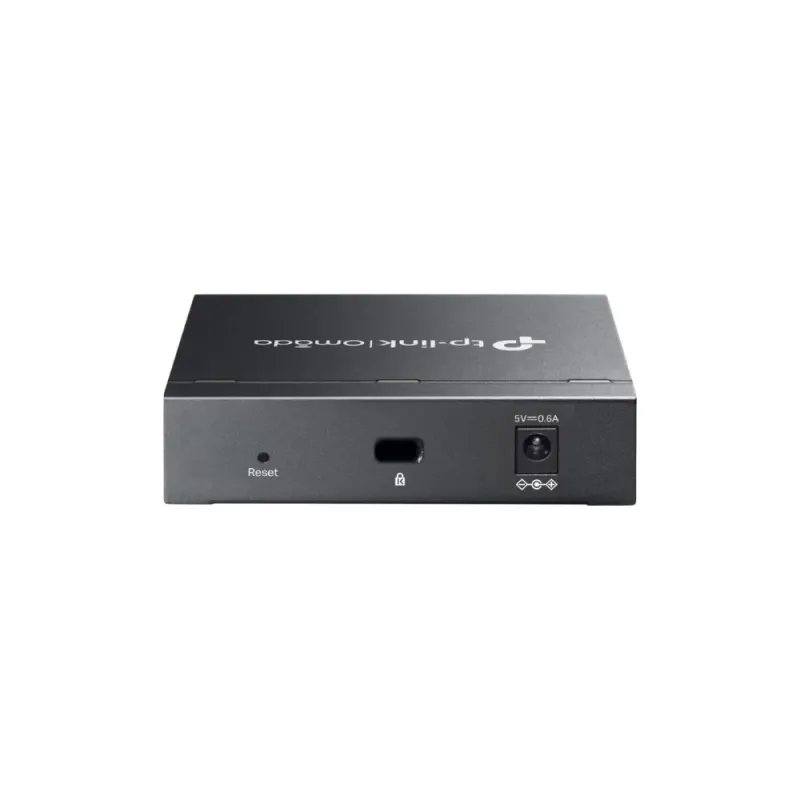

| Power Supply | External DC Power Adapter (Output: 5V DC / 0.6A) |
| Dimensions ( W x D x H ) | 3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm) |
| Surge Protection | ±6kV |
PERFORMANCE |
| Switching Capacity | 10 Gbps |
| Packet Forwarding Rate | 7.4 Mpps |
| MAC Address Table | 8 K |
| Packet Buffer Memory | 4 Mbits |
| Jumbo Frame | 15 KB |
SOFTWARE FEATURES |
| Quality of Service | • Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control△ |
| L2 Features | • Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave |
| VLAN | • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID |
| Transmission Method | Store-And-Forward |
Management Features |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration† |
OTHERS |
| Certification | FCC, CE, RoHS |
| Package Content | • ES205G
• Power Adapter
• Installation Guide
• Rubber Feet |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing |
รับประกัน | Limited lifetime |
รายละเอียดสินค้า
20 รายการ
ข้อมูลสินค้า
- ประเภท Switch
- Ethenet Switch
- Switches Layer
- L2 Managed
- จำนวน Port Lan
- 5 Port
- ความเร็ว Port Lan
- 1Gbps (Gigabit)
