IES206GPP Product Specification |

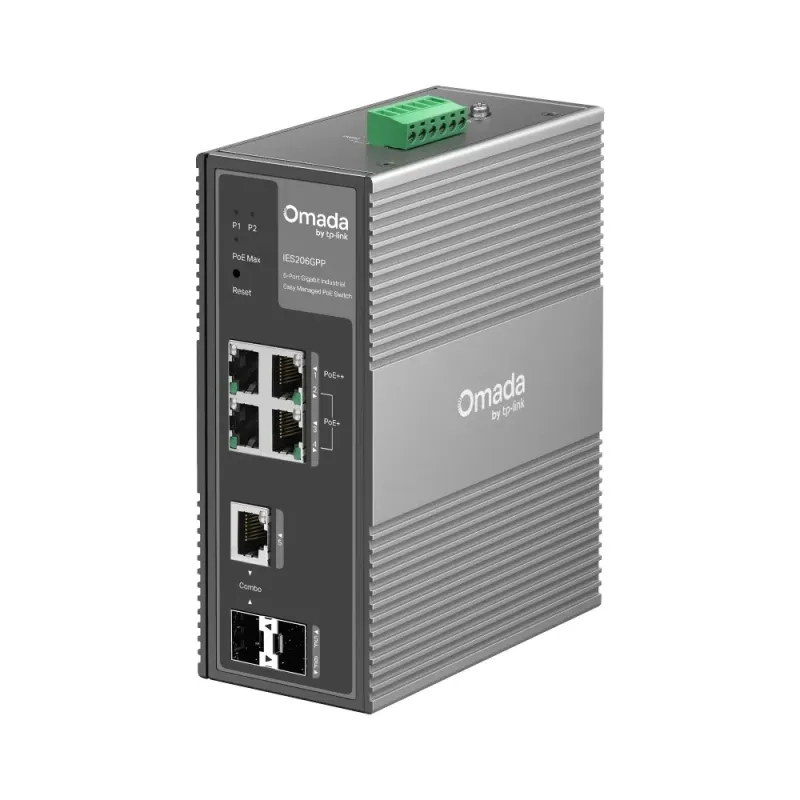

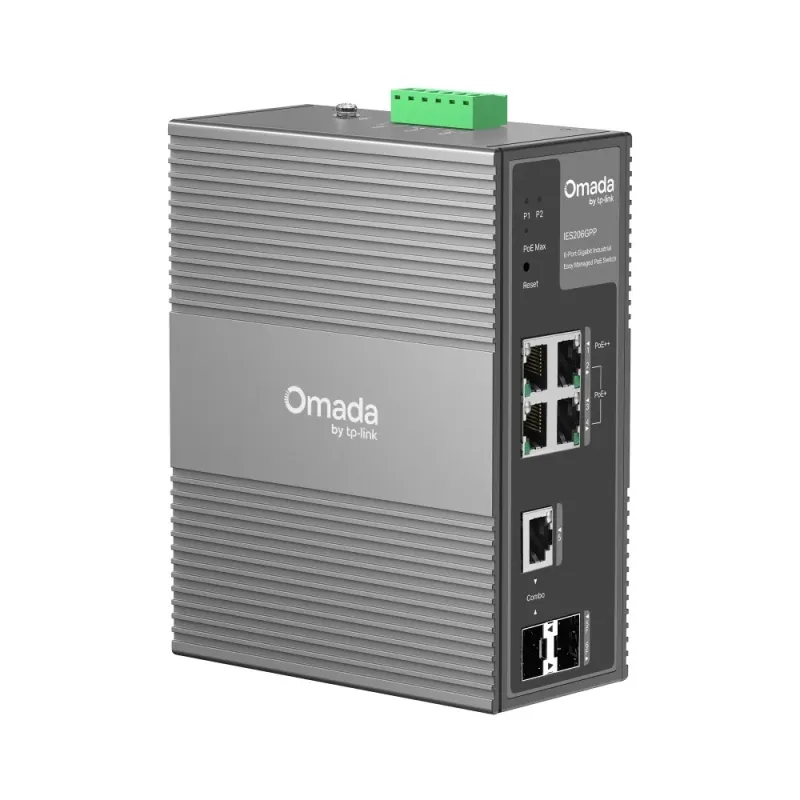

Overview | TP-Link IES206GPP Omada 10-Port Gigabit Industrial Easy Managed Switch 3-Port PoE+ และ 1-Port PoE++ จ่ายไฟสูงสุด 120W, Aluminum Casing รองรับ VLAN 802.1q, Port Mirroring, Loop Prevention, IGMP Snooping, Link Aggregation |
HARDWARE FEATURES |

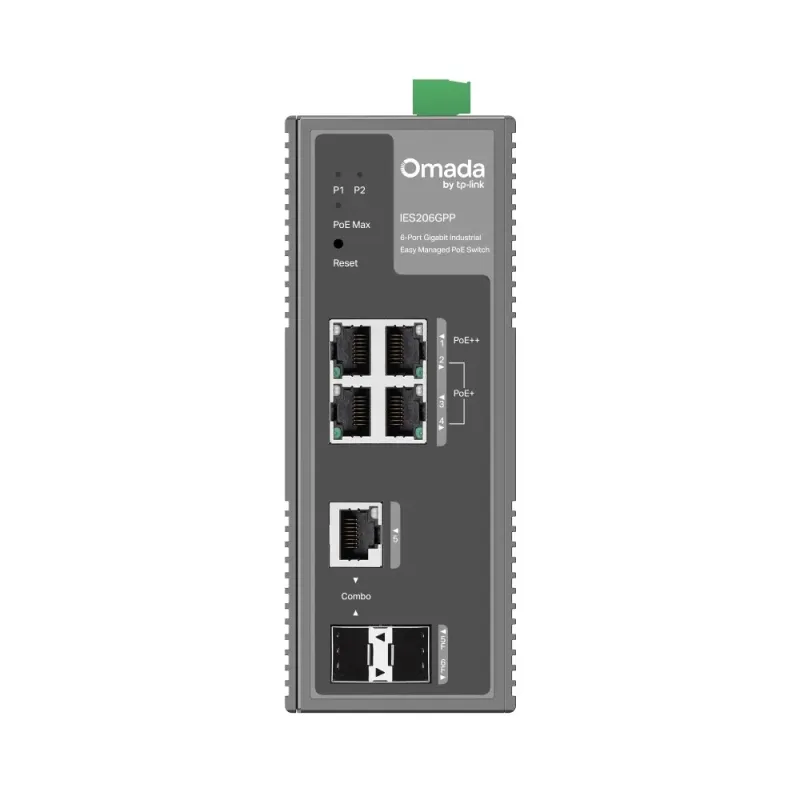

| Interface | • 1× 10/100/1000 Mbps PoE++ RJ45 Ports
• 3× 10/100/1000 Mbps PoE+ RJ45 Ports
• 1× Gigabit SFP/RJ45 Combo Slot
• 1× Gigabit SFP Slot
• Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |

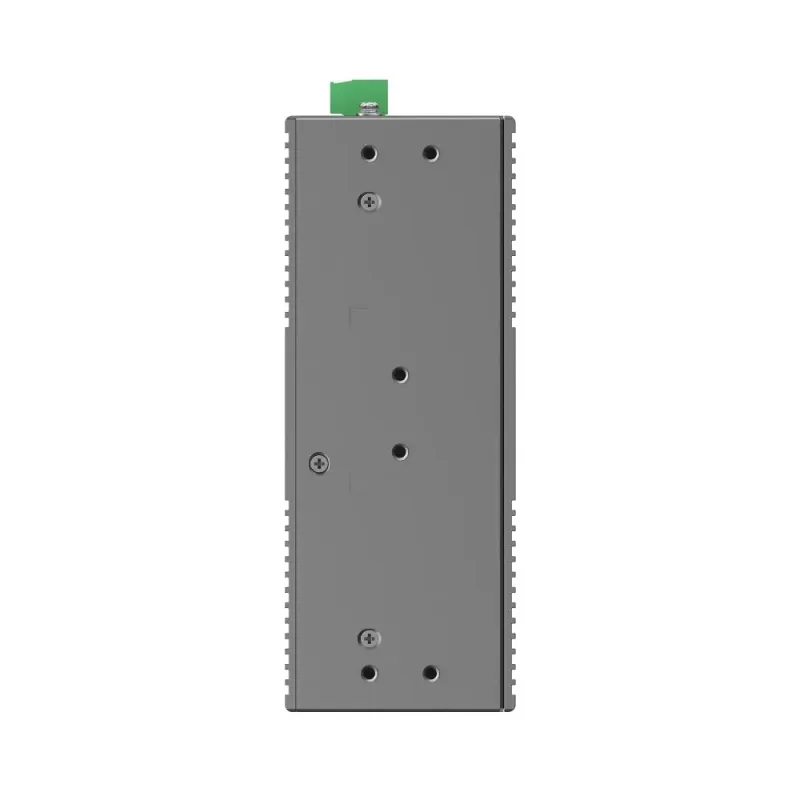

| Installation | • DIN-rail mounting
• Wall mounting |
| Physical Security Lock | √ |
| Power Supply | 12-57V 1+1 Redundant DC Power Input |
| PoE Ports (RJ45) | • Standard: 802.3af/at/bt compliant
• PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port
• PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port
• PoE Budget:
- 60W (Input: 12V / 7.0A - 21V / 3.5A))
- 120W (Input: 21V / 6.5A - 57V / 2.3A) |

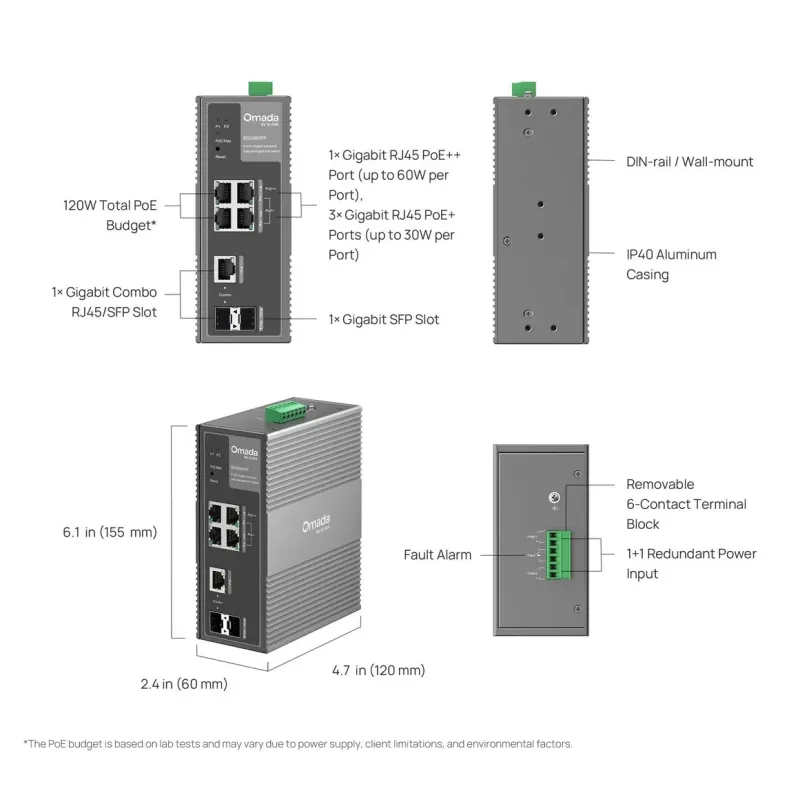

| Dimensions ( W x D x H ) | 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm) |
| Surge Protection | • ±6 kV in common mode for Ethernet ports
• ±4 kV in common mode for DC power input ports |
PERFORMANCE |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.93 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
SOFTWARE FEATURES |
| Quality of Service | • 802.1p DSCP Priority
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rate Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Link Aggregation
- Static Link Aggregation
- Up to 2 aggregation groups and up to 4 ports per group
• Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
• Spanning Tree
- STP (802.1d)
- RSTP (802.1w) |
| L2 Multicast | • IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave |
| VLAN | • MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID |
| Transmission Method | Store-And-Forward |
Management Features |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | • Web-based GUI
• DHCP Client
• Cable Diagnostics
• Digital Diagnostic Monitoring (DDM)
• Automatic Device Discovery†
• Batch Configuration†
• Batch Firmware Upgrading†
• Unified Configuration† |
OTHERS |
| Certification | FCC, CE, RoHS |
| Package Content | • IES206GPP
• DIN-Rail Mounting Bracket
• Wall-Mounting Plates
• Installation Guide |
| Environment | • Operating Temperature: -40℃~75℃ (-40℉~167℉)
• Storage Temperature: -40℃~85℃ (-40℉~185℉)
• Operating Humidity: 5%~95% non-condensing
• Storage Humidity: 5%~95% non-condensing |
รับประกัน | Limited lifetime |
