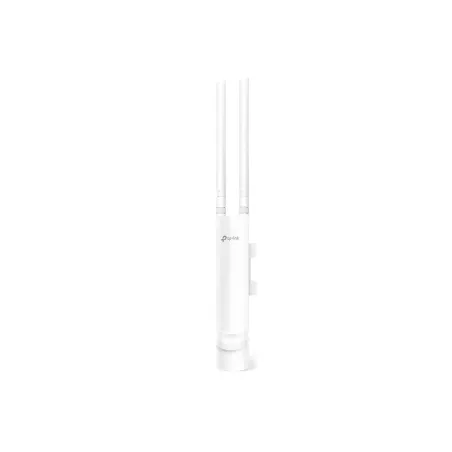

TP-LINK EAP225-OUTDOOR AC1200 Wireless AP MU-MIMO Wave2 1200Mbps รองรับ Controller

Product Specification

Overview

TP-LINK EAP225-Outdoor AC1200 Wireless มาตรฐาน AC MU-MIMO Wave2 1200Mbps Indoor/Outdoor Access Point เสาภายใน 4dBi กระจายสัญญาณรอบทิศทาง รองรับ OMADA Controller รองรับ POE มาตรฐาน 802.3af กันน้ำ กันฝุ่น มาตรฐาน IP65

Gigabit Ethernet (RJ-45)Port*1(Support 802.3af PoE and Passive PoE)

Reset

802.3af PoE and 24 Passive PoE(PoE Adapter Included)

10.5W

8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm)

2.4GHz: 2 * 3dBi, 5GHz: 2 * 4dBi

IP65

Pole/Wall Mounting (Kits included)

Yes

IEEE 802.11a/b/g/n/ac

2.4GHz, 5GHz

802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Multiple SSIDs（Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support

CE:<20dBm(2.4GHz,EIRP),<25dBm(5GHz,EIRP)
FCC:<23dBm(2.4GHz),<22dBm(5GHz)

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

CE、FCC、RoHS

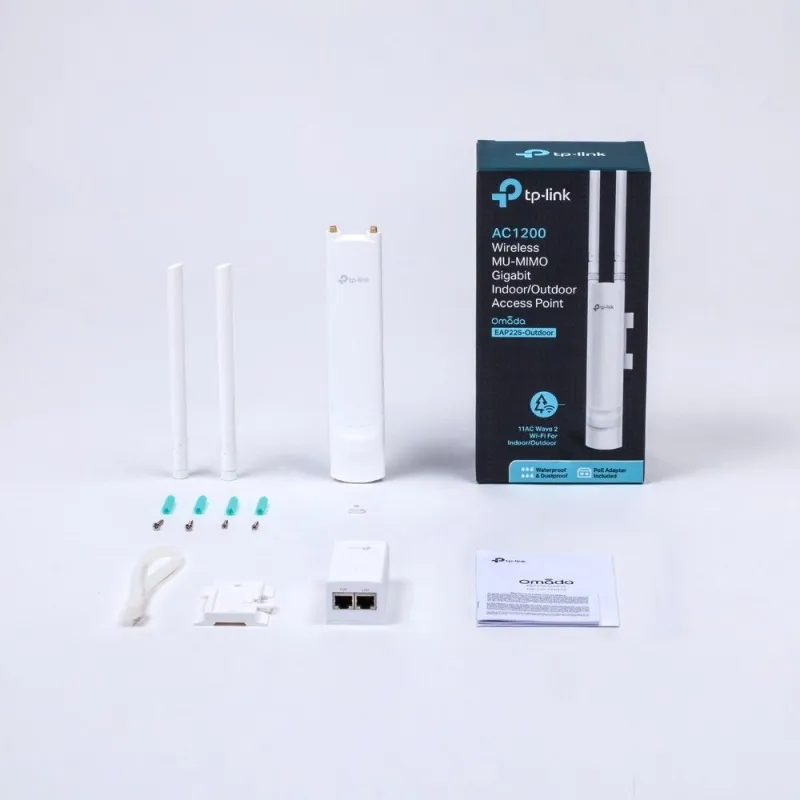

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
EAP225-Outdoor
Power Adapter
Mounting Kits
Installation Guide

Operating Temperature: -30℃~70℃ (-22℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

รับประกัน

Limited lifetime
