TP-Link OC200
Omada Cloud Controller
- Professional centralized management for Wi-Fi network
- Auto-detect and centralized management, up to 50 EAPs
- Free cloud access to manage from anywhere, anytime
- PoE (802.3af/802.3at) supported for easy installation
- Industry leading hardware design with powerful chipset, durable metal casing, and USB port for auto backup
- Omada App for a convenient management (iOS and Android)
- Secure guest network with multiple login options (Facebook Wi-Fi, SMS login, Vourcher)
|
Overview
|

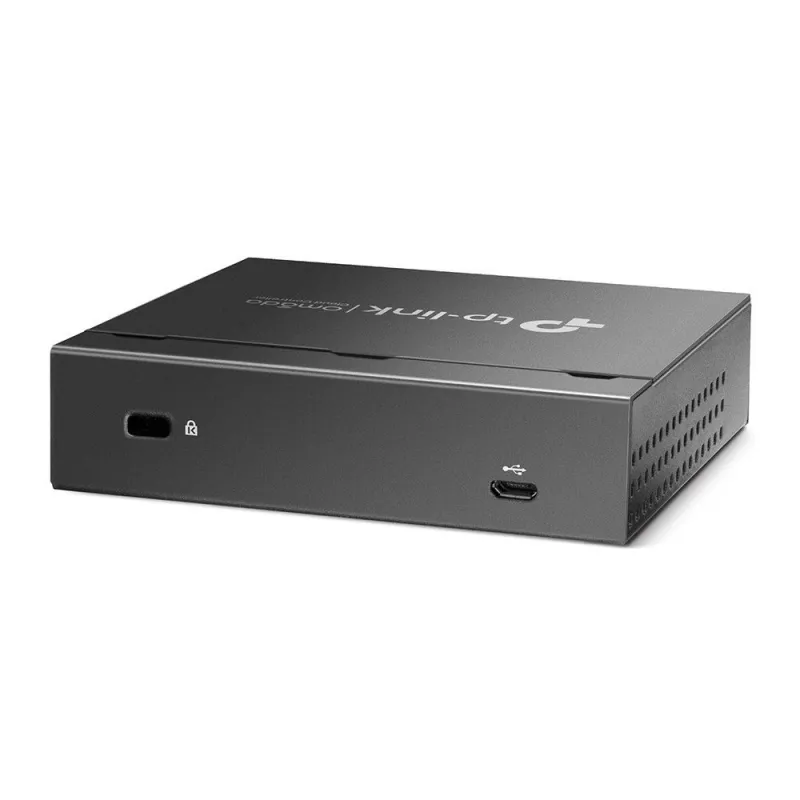

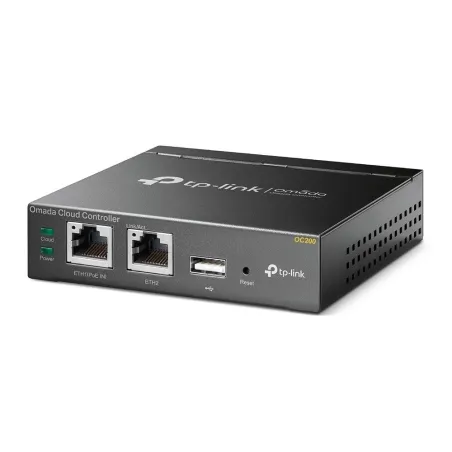

TP-Link OC200 Omada Cloud Controller
Network Controller สำหรับบริหารจัดการ รองรับการ Centralize Manage / Monitor อุปกรณ์ TP-Link Omada Series เช่น TP-Link Access Point, TP-Link JetStream Switch และ TP-Link SafeStream Router ผ่าน Cloud และ Mobile App
|
|

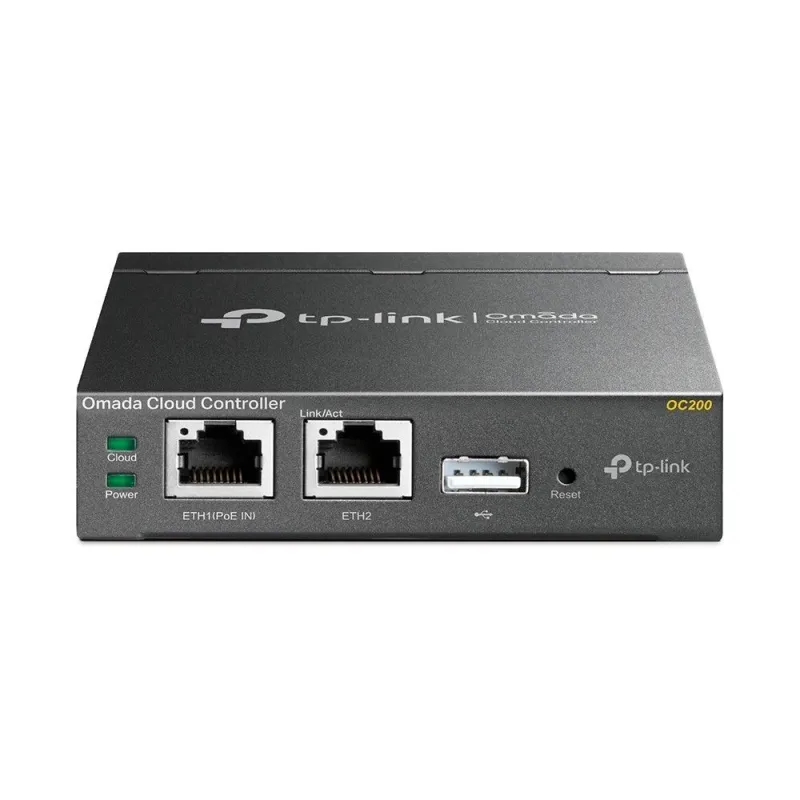

Interface
|
2 x 10/100Mbps Ethernet Port
1 x USB 2.0 Port for configuration backup
1 x Micro USB Port for power
|
|
Power Supply
|
802.3af/at PoE or Micro USB（DC 5V/Minimum 1A）
|
|
Power Consumption
|
5 W
|
|
Dimensions
|
3.9×3.9×1.0in.
(100×98×25mm)
|
|
Management Scale
|
100 EAPs
|
|
Wireless Fuction
|
L3 Management
Multi-SSID
Load Balance
Band Steering
Airtime Fairness
Beamforming
Rate Limit
Wireless Schedule
QoS
|
|
Wireless Security
|
WEP/WPA-PSK/WPA2-PSK/WPA/WPA2 Encryption
Access Control
SSID to VLAN Mapping
Guest Network
|
|
AP Management
|
Support Omada EAP Series
Cloud Access
Omada App Support
Reboot& Wireless Schedule
Auto Backup & Restore
Batch Firmware Upgrade
|
|
Authentication
|

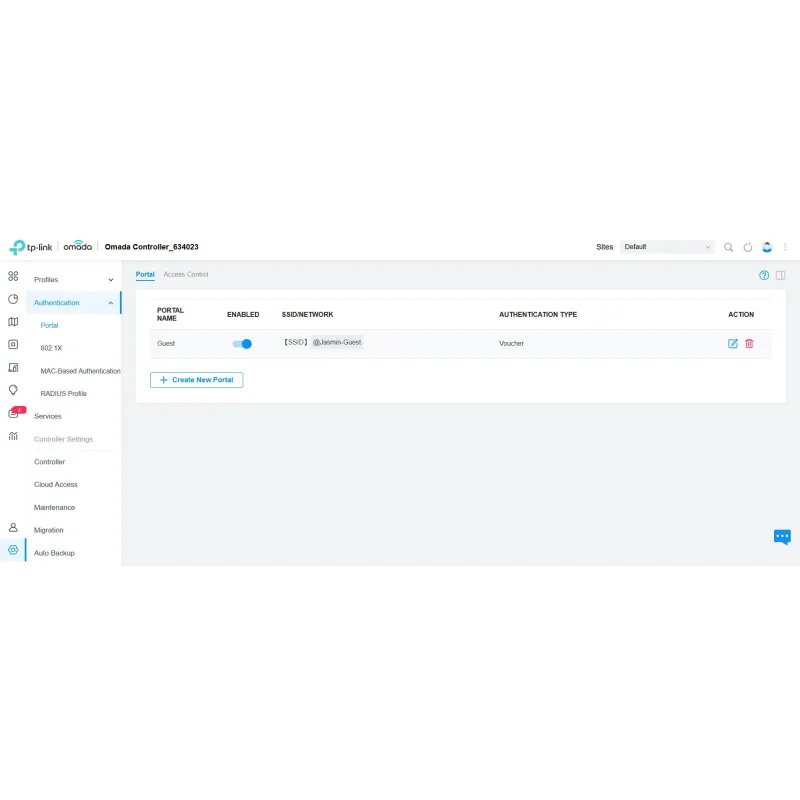

Captive Portal
|
|
Certification
|
CE, FCC, RoHS
|
|
Package Contents
|
Omada Cloud Controller OC200
Quick Installation Guide
Ethernet Cable
|
|
System Requirements
|
Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
|
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
|
รับประกัน
|
Limited lifetime
|
