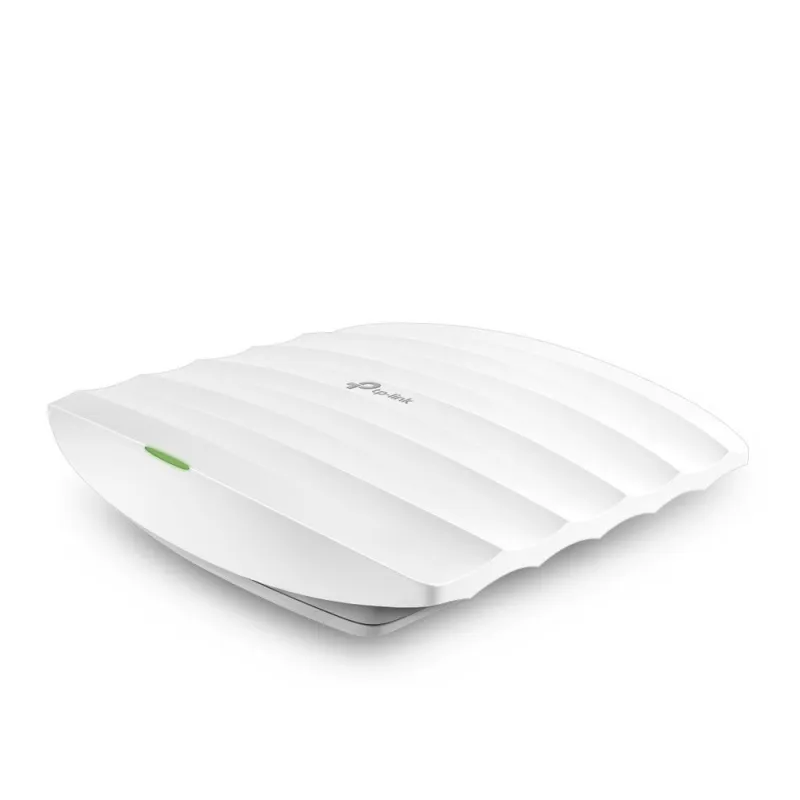

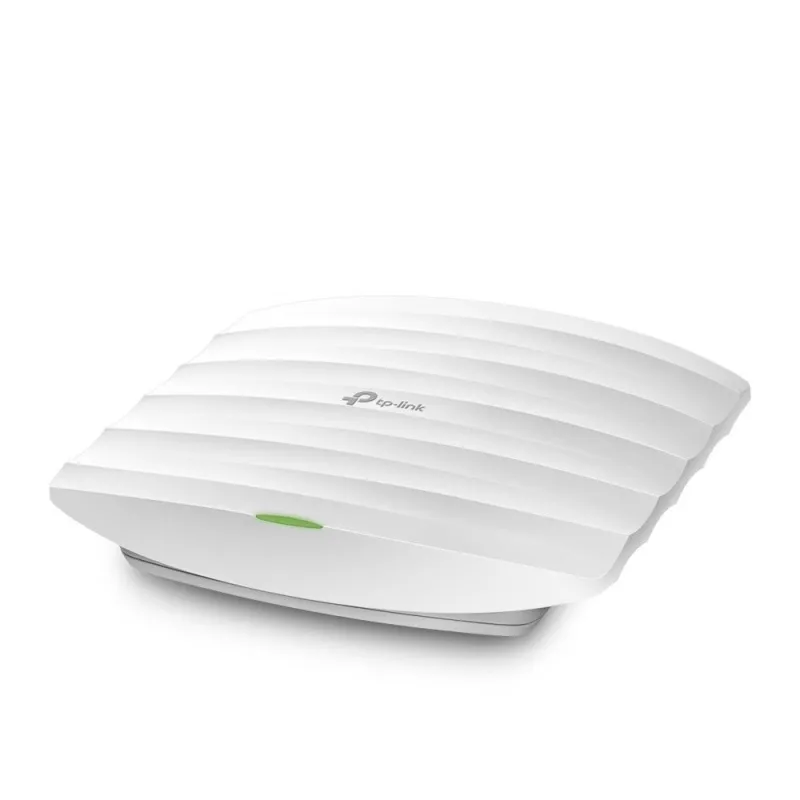

TP-LINK EAP245 OMADA AC1750 Wireless Gigabit Ceiling Mount Access Point รองรับ Omada Cloud

Product Specification

Overview

TP-LINK EAP245 Wireless Access Point Dual-Radio กระจายสัญญาณ 2 ย่านความถี่ 2.4/5GHz มาตรฐาน AC ความเร็วสูงสุดรวม 1750Mbps กระจายสัญญาณรอบทิศทาง รองรับ Omada Cloud App

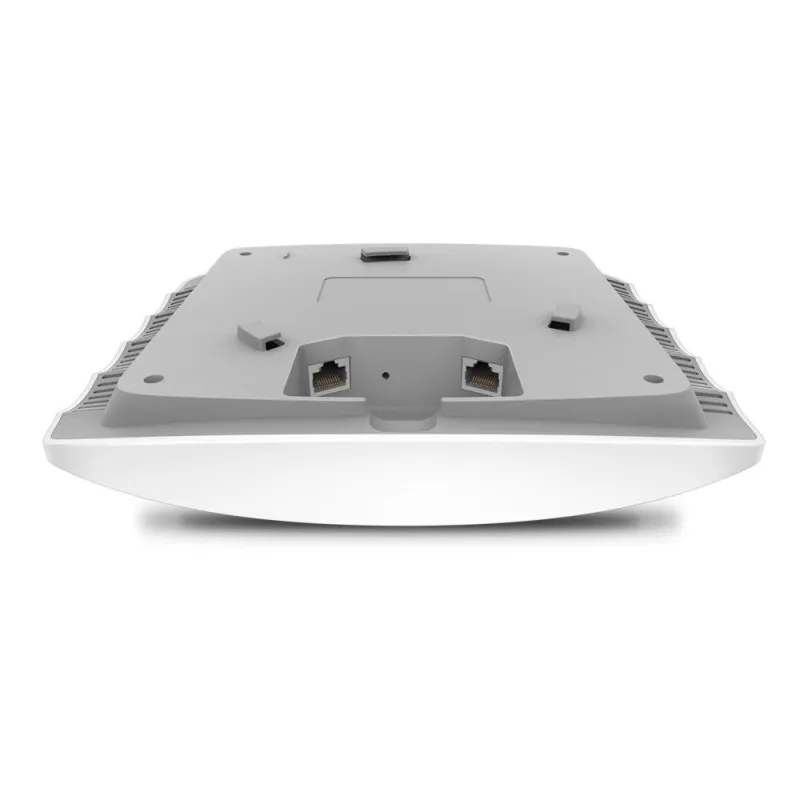

2 × Gigabit Ethernet (RJ-45) Port (One port supports IEEE802.3at PoE and Passive PoE In. Another port supports Passive PoE Out, and the power consumption of its downlink terminal devices should not exceed 5W)

Reset

• 802.3at PoE
• 48V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included)

EU: 14.3 W
US: 16.1 W

8.1 × 7.1 × 1.5 in (205.5 × 181.5 × 37.1 mm)

Internal Omni
2.4GHz: 3* 3.5dBi
5GHz: 3*4dBi

Ceiling /Wall Mounting (Kits included)

Kensington Lock Slot

Yes

Yes

IEEE 802.11ac/n/g/b/a

2.4GHz and 5GHz

5GHz:Up to 1300Mbps
2.4GHz:Up to 450Mbps

• Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz, 7 for 5GHz)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming*
• Omada Mesh*
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client

Yes

• Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Yes

Yes

Yes

Yes

Local/Remote Syslog

Yes

HTTP/HTTPS

Yes

Yes

Yes

Yes. Requiring the use of Omada Cloud-Based Controller.

CE, FCC, RoHS

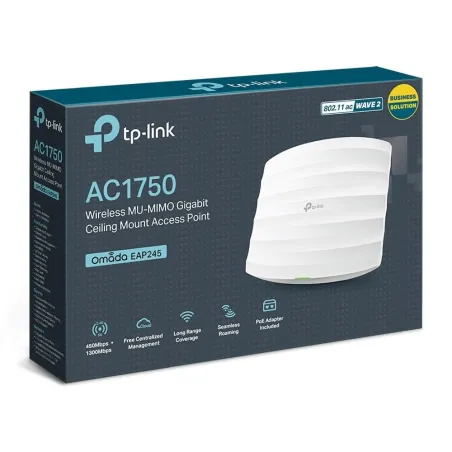

• AC1750 Wireless MU-MIMO Gigabit Ceiling Mount Access Point EAP245
• Gigabit 48V Passive PoE Adapter
• Power Cord
• Mounting Kits
• Installation Guide

• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

รับประกัน

Limited lifetime
