Product Specification
|
|
Overview
|

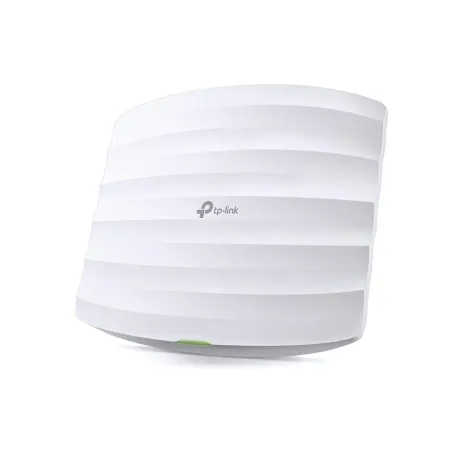

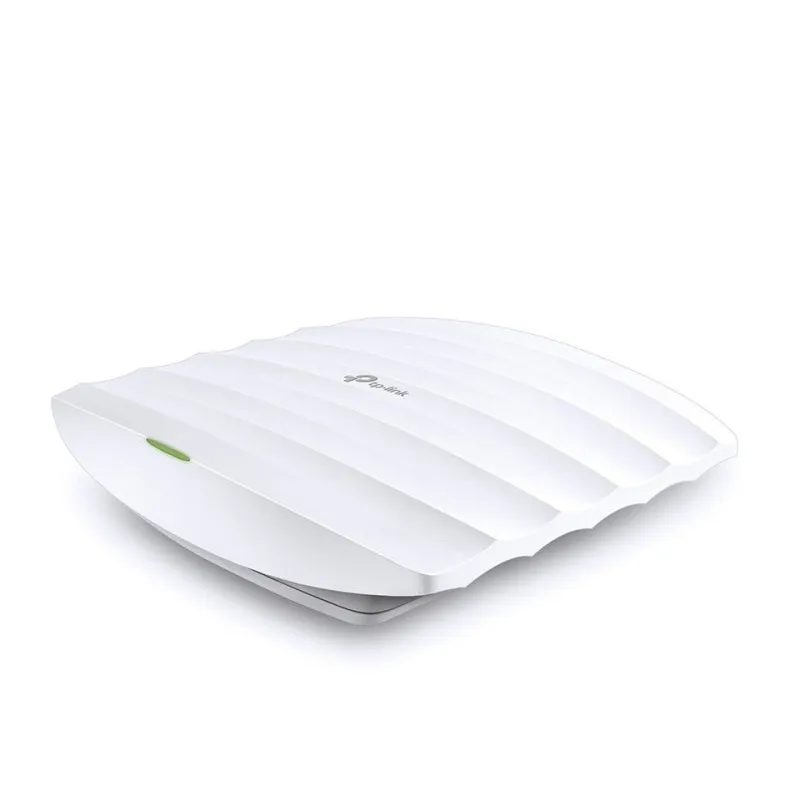

TP-LINK EAP320 Wireless Access Point Dual-Radio กระจายสัญญาณ 2 ย่านความถี่ 2.4ฝ5GHz มาตรฐาน AC ความเร็วสูงสุดรวม 1200Mbps เสาภายใน 5dBi/ 6dBi กระจายสัญญาณรอบทิศทาง รองรับ EAP Software Controller, Captive portal รองรับ POE มาตรฐาน 802.3af
|
|
Interface
|
Gigabit Ethernet (RJ-45) Port x 1（Support IEEE802.3at PoE）
Console Port x 1
|
|
Button
|
Reset
|
|
Power Supply
|
802.3af PoE or External 12VDC / 1.5A Power Supply
|
|
Power Consumption
|
16 W
|
|
Antenna Type
|
Internal Omni
2.4GHz: 2 x 5dBi
5GHz: 2 x 6dBi
|
|
Mounting
|
Ceiling /Wall Mounting (mounting kit included)
|
|
Physical Security Lock
|
Kensington Lock Slot
|
|
Hardware Watch Dog
|
Yes
|
|
Wireless Standards
|
IEEE 802.11ac/n/g/b/a
|
|
Frequency
|
2.4GHz and 5GHz
|
|
Signal Rate
|
5GHz:Up to 867Mbps
2.4GHz:Up to 300Mbps
|
|
Transmit Power
|
< 27dBm
|
|
Wireless Functions
|
Multiple SSIDs （Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
|
|
Wireless Security
|
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
|
|
EAP Controller Software
|
Yes
|
|
Email Alerts
|
Yes
|
|
LED ON/OFF Control
|
Yes
|
|
Management MAC Access Control
|
Yes
|
|
SNMP
|
v1,v2c
|
|
System Logging Local/Remote Syslog
|
Local logging or remote syslog
|
|
Telnet
|
Yes
|
|
Web-based Management
|
HTTP/HTTPS
|
|
CLI (Command Line Interface)
|
Yes
|
|
L3 Management
|
Yes
|
|
Multi-site Management
|
Yes
|
|
Management VLAN
|
Yes
|
|
Certification
|
FCC, RoHS
|
|
Package Contents
|
AC1200 Wireless Dual Band Gigabit Access Point EAP320
Power Adapter
Mounting Kit
Installation Guide
|
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
|
รับประกัน
|
Limited lifetime
|
