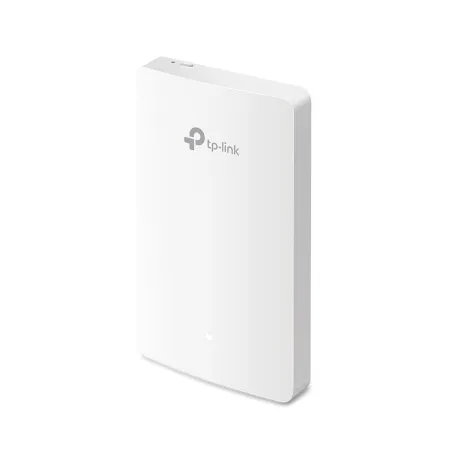

TP-Link TP-LINK EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
  • TP-Link TP-LINK EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
  • TP-Link TP-LINK EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
  • TP-Link TP-LINK EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
  • TP-Link TP-LINK EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
  • TP-Link TP-LINK EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

TP-LINK EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

TP-Link
Rating

TP-LINK EAP235-Wall Wireless Access Point MU-MIMO Dual-Radio มาตรฐาน AC 1750Mbps แบบ Wall Plate เสาภายใน 4dBi กระจายรอบทิศทาง รองรับ EAP Controller Software

฿2,650.00
ยังไม่ได้รวมภาษี
จำนวน
สินค้าหมด



Line: @sysnet

Click โทรสอบถามข้อมูลเพิ่มเติม
รายละเอียด

TP-Link EAP Datasheet
TP-Link EAP Controller User Guide

TP-Link EAP235-Wall

Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point

  • Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds with MU-MIMO.

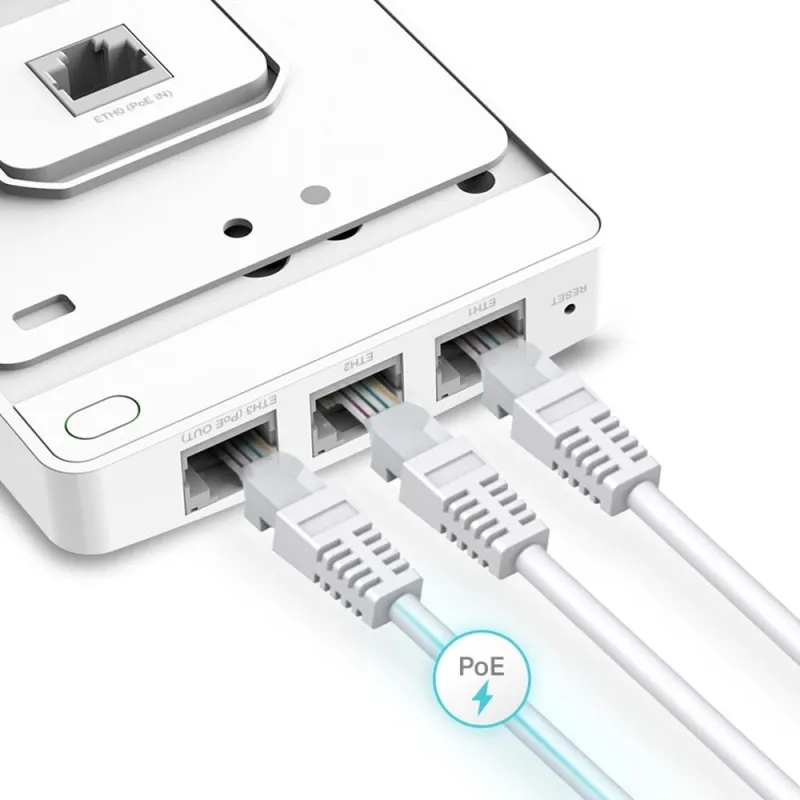

  • Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Elegant Appearance: Ultra slimmest and conspicuous design blends into hotel rooms, hospitals, offices, dormitories and any other environments.
  • Easy Installation and PoE Support: Easy-mount construction, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.
  • Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, and Beamforming technologies.



Product Specification

Overview

TP-LINK EAP265 HD Wireless Access Point Dual-Radio กระจายสัญญาณ 2 ย่านความถี่ 2.4/5GHz มาตรฐาน AC ความเร็วสูงสุดรวม 1750Mbps เสาภายใน 4dBi กระจายสัญญาณรอบทิศทาง รองรับ EAP Software Controller, Captive portal รองรับ POE มาตรฐาน 802.3at

HARDWARE FEATURES

Interface

Uplink: 1× 10/100/1000 Mbps Ethernet Port
Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input and the maximum output is 13 W.)

Physical Security Lock

Yes

Button

Reset

Power Supply

802.3af/802.3at PoE

Power Consumption

9.8 watts /24.4 watts (PoE Out Included)

Dimensions

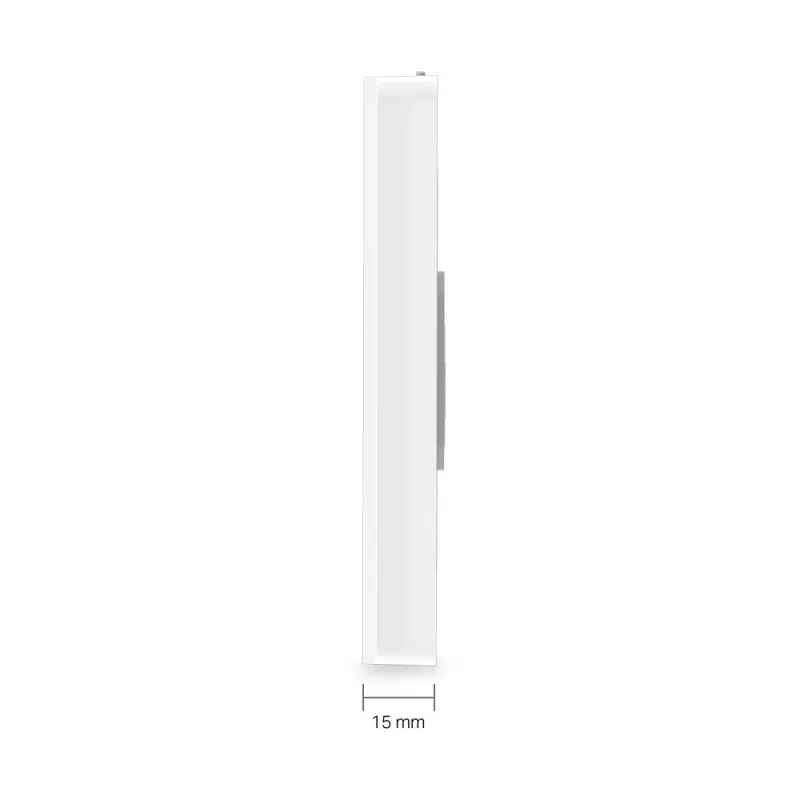

143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)

Antenna

2 Dual-Band Antennas
2.4 GHz: 2× 4 dBi
5 GHz: 2× 4 dBi

Mounting

Wall Plate Mounting

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/b/g/n/ac

Frequency

2.4 GHz and 5 GHz

Signal Rate

5 GHz: Up to 867 Mbps
2.4 GHz: Up to 300 Mbps

Wireless Functions

16 SSIDs (Up to 8 SSIDs on each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Band Steering
Beamforming
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security

Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Local LAN port based VLAN
Rogue AP Detection
802.1X Support
64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise

Transmission Power

CE:
≤20 dBm (2.4 GHz, EIRP)
≤23 dBm (5 GHz, EIRP)

FCC:
≤21 dBm (2.4 GHz)
≤21 dBm (5 GHz)

MANAGEMENT

Omada App

Yes

Centralized Management

Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller

Cloud Access

Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1,v2c

System Logging Local/Remote Syslog

Local/Remote Syslog

SSH

Yes

Web-based Management

HTTP/HTTPS

L3 Management

Yes

Multi-site Management

Yes

Management VLAN

Yes

OTHERS

Certification

CE, FCC, RoHS

Package Contents

Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point EAP235-Wall
Installation Guide
Mounting Screw

System Requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10

Environment

Operating Temperature: 0–40 ℃ (32–104 ℉)
Storage Temperature: -40–70 ℃ (-40–158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

รับประกัน

Limited lifetime



รายละเอียดสินค้า

Data sheet

ลักษณะงาน Wireless
กระจายสัญญาณ WIFI
ความเร็ว Wireless
WIFI-5 (802.11ac: 650Mbps+)
ย่านความถี่
Dual-Band 2.4/5GHz
รองรับ Controller
Hardware Controller
รองรับ POE
Yes
