รายละเอียด
SDN Controller(UN)_ Datasheet TP-Link Omada SDN Controller Software 4.1.5Windows/Linux_User Guide
คู่มือการ Config TP-Link Omada Series

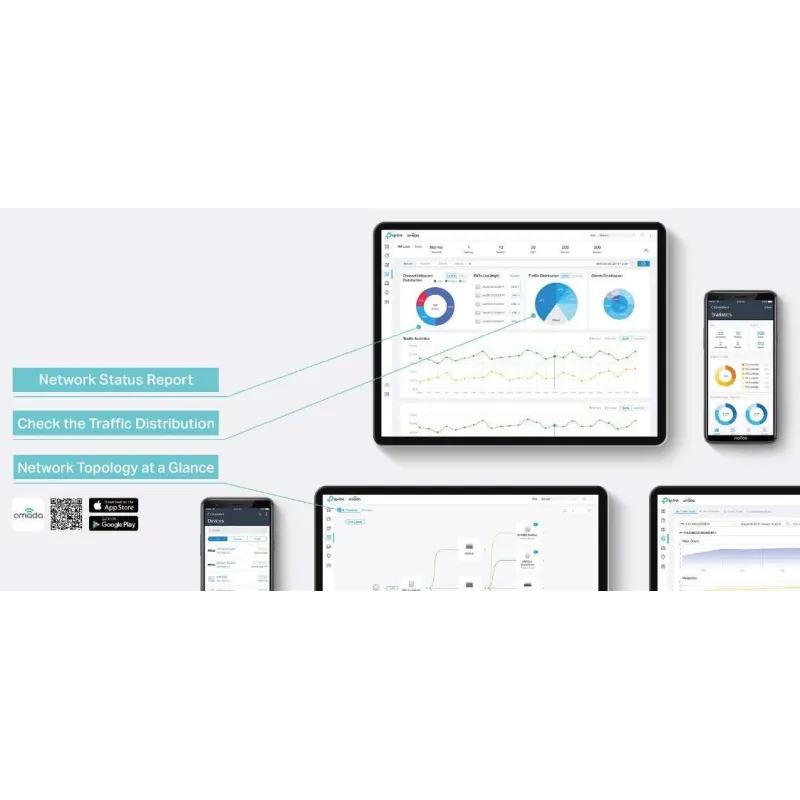

TP-Link OC300 Omada Hardware Controller Centralized management for up to 500 Omada access points, JetStream switches, and SafeStream routers. Cloud access to manage from anywhere, anytime. Locally monitor and manage devices with the ultimate security and stability. The Omada app for convenient management. Industry-leading hardware design with a powerful chipset, durable metal casing, and USB 3.0 port for auto backup. Batch management, multi-site management, and remote firmware updates benefit network maintenance. The easy-to-use dashboard makes it easy to see your real-time network status and check network usage and traffic distribution. Network topology helps IT admins quickly see and troubleshoot connections at a glance.
Product Specification Overview
TP-Link OC300 Omada Cloud Controller
Network Controller สำหรับบริหารจัดการ รองรับการ Centralize Manage / Monitor อุปกรณ์ TP-Link Omada Series เช่น TP-Link Access Point , TP-Link JetStream Switch และ TP-Link SafeStream Router ผ่าน Cloud และ Mobile App
HARDWARE FEATURES Interface
2× 10/100/1000 Mbps Ethernet Ports
Processor
Quad-Core A72 @ 1.2 GHz
Memory Information
2 GB DDR4
Storage
2MB Nor Flash; 8 GB eMMC
Power Supply
100–240 V~50/60 Hz, 0.6 A
Dimensions
11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
MANAGEMENT Omada App
Yes
Centralized Management
Up to 500 Omada access points, JetStream switches, and SafeStream routers*
Cloud Access
Yes
L3 Management
Yes
Multi-site Management
Yes
Management Features
• Automatic Device Discovery
OTHERS Certification
CE, FCC, RoHS
Package Contents
• Omada Hardware Controller OC300
System Requirements
Microsoft® Windows®10, 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment
• Operating Temperature: 0–50 ℃ (32–122 ℉)
รับประกัน
Limited lifetime
รายละเอียดสินค้า
สินค้ามีในสต็อค 10 รายการ
