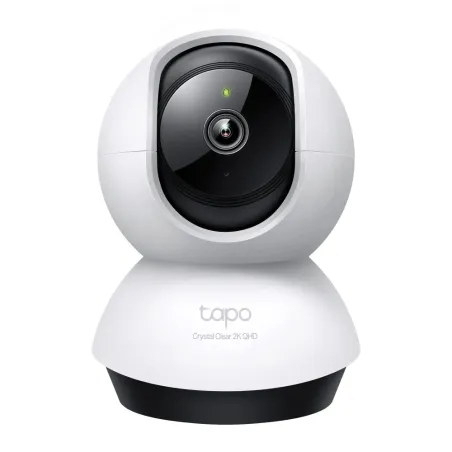

TP-LINK Tapo C220 Pan/Tilt AI Home Security Wi-Fi Camera ความละเอียด 2K QHD 4MP, เชื่อมต่อด้วย WIFI, Night Vision, AI Detection, Two-Way Audio, รองรับ MicroSD 512GB, รองรับดูผ่าน Cloud
Support / ติดตั้งด้วยทีมงาน Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
คู่มือติดตั้ง Tapo C310 ฉบับภาษาไทย
Tapo App User Guide (for Tapo Indoor Outdoor Cameras)
Tapo C220_V1_Datasheet
Tapo C220_V1_Quick Installation Guide
Tapo C220(EU)_V1_Quick Installation Guide(27 Languages)
Tapo C220(EU)_V1_User Guide
Product Specification | |
Overview | TP-LINK Tapo C220 Pan/Tilt AI Home Security Wi-Fi Camera ความละเอียด 2K QHD 4MP, เชื่อมต่อด้วย WIFI, Night Vision, AI Detection, Two-Way Audio Software รองรับการติดตั้งบน Smartphone iOS และ Android รองรับ MicroSD ความจุสูงสุด 512GB (ไม่มีในชุด) รองรับการดูผ่าน Cloud ไม่ต้อง Forward Port หรือ ทำ Dynamic DNS |
CAMERA | |
| Image Sensor | 1/3” Progressive Scan CMOS Starlight Sensor |
| Lens | Focal Length: 4 mm Aperture: F2.0 Field of View: 88° (Diagonal), 75°(Horizontal), 41°(Vertical) |
| Motion Range | Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 69° (110° Tilt Coverage) |
| Night Vision | 850nm IR LED Night Vision |
| Lighting | / |
| Interface & Button | 1× RESET Button 1× MicroSD Card Slot (Up to 512GB) |
| Hub Compatibility | / |
| IR Working Distance | Up to 30ft |
| Pan/Tilt Range | 360° Horizontal 114° Vertical |
| Resolution | 2K 4MP QHD （2560 * 1440 px） |
HUB | |
| Device Compatibility | / |
| Connection Capacity | / |
| Interface & Button | / |
VIDEO & AUDIO | |
| Maximum Resolution | 1× RESET Button 1× MicroSD Card Slot (Up to 512GB) |
| Frame Rate | 15/20/25/30 fps (Default 15fps) |
| Digital Zoom | 12x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3D DNR BLC |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 99dB (Level measured at 4-inch/10-cm dstance) |
STORAGE | |
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
VIDEO | |
| Frame Rate | 2560×1440@30fps |
DETECTION and NOTIFICATIONS | |
| Sensor | / |
| AI Detection | Motion Detection Person Detection Line-Crossing Detection Tamper Detection BabyCry Detection Vehicle Detection Pet Detection Meow Detection Bark Detection Glass-Breaking Detection |
| Activity Zones | Yes |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
NETWORK | |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n/ax, 2.4 GHz Wi-Fi |
| Protocol | IEEE802.11 b/g/n |
| Wireless Rate | 11Mbps(802.11b) 54Mbps(802.11g) 72.2Mbps(802.11n) |
| Ethernet Port | / |
| RTSP | Yes |
| ONVIF | Yes |
| Security | 128 bit AES encryption with SSL/TLS |
SECURITY | |
| Security | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
POWER | |
| Power Source | 9V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 9V, 0.6 A (DC Power) |
| Camera input | 3 Meter Power Cable |
GENERAL | |
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | / |
| Mounting Options | Tabletop Ceiling-Mounted |
| Operating Temperature | 0℃~40℃ |
| Storage Temperature | -20℃~70℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 5%~90% RH, Non-condensing |
| Charging Temperature | / |
| Dimensions | 3.36 × 3.42 × 4.63 in (85.4 × 86.8 × 117.7 mm) |
| Package Contents | Tapo C220 Camera Power Adapter Quick Start Guide Mounting Screws Mounting Anchors Mounting Template Camera Base |
| Certifications | CE, FCC, RCM, WEEE, EAC |
PACKAGE CONTENTS | |
| Package Contents | Tapo Pan/Tilt Home Security Wi-Fi Camera Power Adapter Quick Start Guide Mounting Screws Mounting Plate Camera Base |
HARDWARE | |
| Button | Reset Button |
| Indicator LED | System LED |
รับประกัน | 2 ปี |
