TP-LINK Tapo C510W Outdoor Pan/Tilt Security Wi-Fi Camera ความละเอียด 2K, Motion Detection & Notifications, Advanced Night Vision 10 เมตร, ระบบ Two-Way Audio รองรับ MicroSD 512GB, กันน้ำกันฝุ่น IP65, รองรับดูผ่าน Cloud
Support / ติดตั้งด้วยทีมงาน Certificate
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
คู่มือติดตั้ง Tapo C310 ฉบับภาษาไทย
Tapo C510W_V1_Datasheet
Tapo App User Guide (for Tapo Indoor Outdoor Cameras)
Tapo Camera(27 Languages)_Quick Installation Guide
Tapo C510W_V1_Quick Installation Guide
Tapo C510W_V1_User Guide
How to Set Up Your Outdoor Pan&Tilt Security Wi-Fi Camera (Tapo C500/TC40/Tapo C510W)
How to Mount Your Outdoor Pan&Tilt Security Wi-Fi Camera (Tapo C500/TC40/Tapo C510W/Tapo C520WS)
Product Specification | |
Overview | TP-LINK Tapo Tapo C510W Outdoor Pan/Tilt Security Wi-Fi Camera ความละเอียด 2K, Motion Detection & Notifications, Advanced Night Vision 10 เมตร, ระบบ Two-Way Audio รองรับ MicroSD 512GB, กันน้ำกันฝุ่น IP65, รองรับดูผ่าน Cloud Software รองรับการติดตั้งบน Smartphone iOS และ Android รองรับ MicroSD ความจุสูงสุด 512GB (ไม่มีในชุด) รองรับการดูผ่าน Cloud ไม่ต้อง Forward Port หรือ ทำ Dynamic DNS |
| CAMERA | |
| Image Sensor | 1/2.8'' CMOS |
| Lens | 2.0±5%; Focal Length: 3.9mm±5% |
| Motion Range | Pan Mechanical Range: 340° (360° Pan Coverage) Tilt Mechanical Range: 60° (130° Tilt Coverage) |
| Night Vision | IR LED (Up to 98 ft), Full-Color Night Vision |
| Lighting | 2× Built-in Spotlights |
| Interface & Button | 1× RESET Button 1× MicroSD Card Slot |

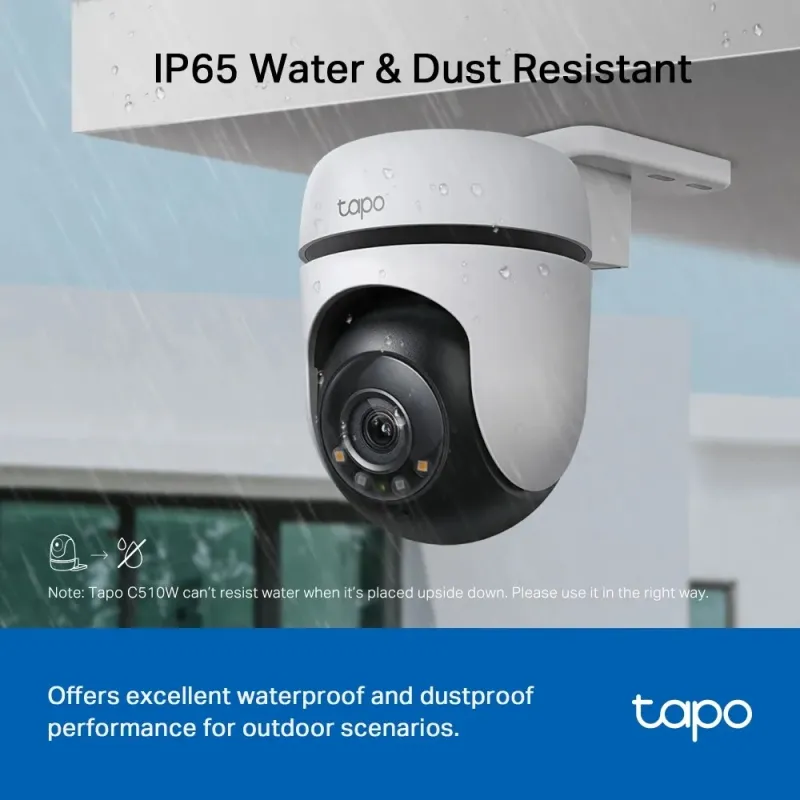

| Weatherproof Rating | IP65 |

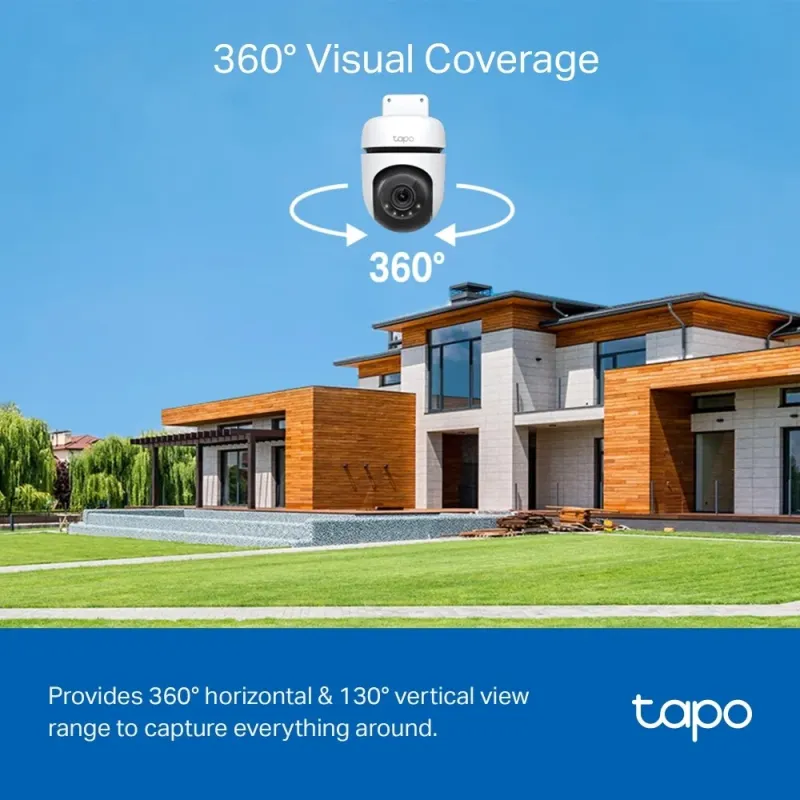

| View Range | 360° horizontal and 130° vertical |
| Resolution | 2K 3MP (2304 × 1296 px) |
| VIDEO & AUDIO | |
| Maximum Resolution | 2304 × 1296 px |
| Frame Rate | 15 fps |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 90 dB (Level measured at 4-inch/10-cm distance) |
| STORAGE | |

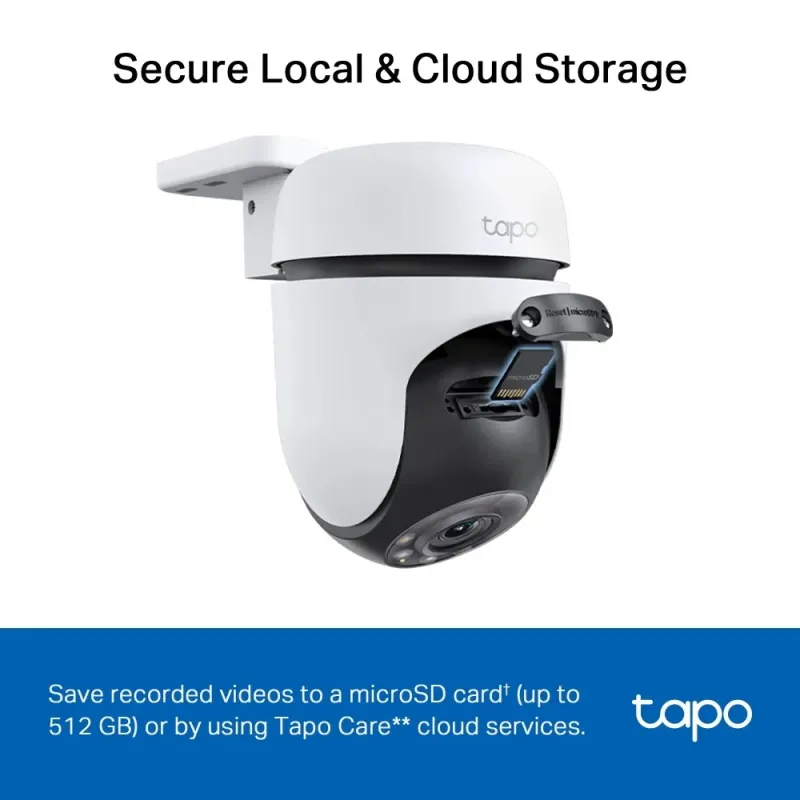

| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| VIDEO | |
| Frame Rate | 15 fps |
| Video Streaming | 2K |
| Video Compression | H.264 |
| DETECTION and NOTIFICATIONS | |
| AI Detection | Motion detection Person detection Tamper detection |
| Activity Zones | Yes |
| Output Notification | System Notification System Notification with Snapshot (Tapo Care Services) |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input & Output: | Built-in Microphone and Speaker |
| NETWORK | |
| Network Connectivity | Connect via Wi-Fi |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Wireless Security | WPA/WPA2-PSK |
| RTSP | Yes |
| ONVIF | Yes |
| Standards and Protocols | IEEE 802.11b/g/n |
| Security | 128 bit AES encryption with SSL/TLS |
| Frequency | 2.4 GHz |
| SECURITY | |
| Security | On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
| POWER | |
| Power Source | 12V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 12 V, 1 A (DC Power) |
| GENERAL | |
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP65 |
| System Requirements | Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
| Mounting Options | Ceiling-Mounted Wall-Mounted Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -30℃~60℃ |
| Storage Temperature | -40℃~60℃ |
| Operating Humidity | 10%~90%RH, Non-condensing |
| Storage Humidity | 0~90%RH, Non-condensing |
| Dimensions | 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm) |
| Package Contents | Tapo C510W Camera Power Adapter Mounting Anchors Mounting Screws Bracket Screws Mounting Template Mounting Bracket Waterproof Seal Quick Start Guide |
| Certifications | CE, FCC, RoHS, RCM |
| ACTIVITY NOTIFICATIONS | |
| Input Trigger | Person Detection, Motion Detection |
| Output Notification | Snapshot(Tapo care), Clips(Tapo care) |
| HARDWARE | |
| Button | RESET Button |
| Indicator LED | System LED |
| Adapter Input | 100-240V, 50/60Hz |
| Adapter Output | 12.0V/1.0A |
| Product Dimensions (W x D x H) | 4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm) |
| OTHERS | |
| Certification | CE, FCC, RoHS, RCM |
| Package Contents | Tapo C510W Camera Power Adapter (3.0m) Mounting Anchors Mounting Screws Bracket Screws Mounting Template Waterproof Seal Mounting Bracket Quick Start Guide |
รับประกัน | 2 ปี |
