Product Specification |

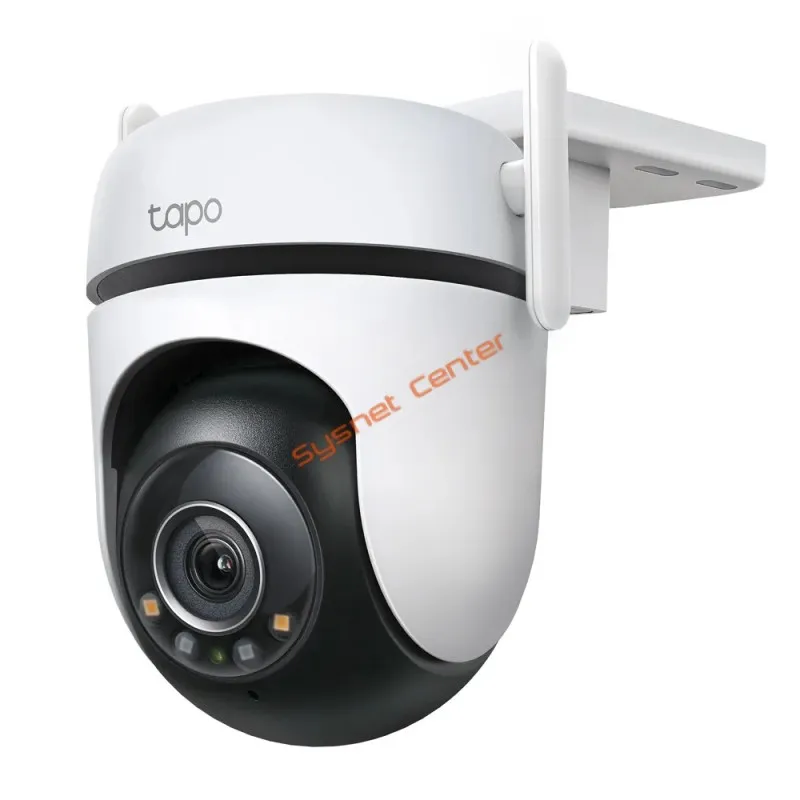

Overview | TP-LINK Tapo C520WS Outdoor Pan/Tilt Security Wi-Fi Camera ความละเอียด 2K QHD 4MP, Motion Detection & Notifications, Advanced Night Vision 10 เมตร, ระบบ Two-Way Audio รองรับ MicroSD 512GB, กันน้ำกันฝุ่น IP66, รองรับดูผ่าน Cloud Software รองรับการติดตั้งบน Smartphone iOS และ Android รองรับ MicroSD ความจุสูงสุด 512GB (ไม่มีในชุด) รองรับการดูผ่าน Cloud ไม่ต้อง Forward Port หรือ ทำ Dynamic DNS |
|
| Image Sensor | 1/3‘’ CMOS |
| Lens | F/NO: 1.61±10%; Focal Length: 3.18mm±5% |
| Motion Range | Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 60° (130° Tilt Coverage) |
| Night Vision | 850 nm IR LED (up to 98 ft), Starlight Color Night Vision |
| Lighting | 2× Built-in Spotlights |
| Interface & Button | 1× Ethernet Port
1× RESET Button
1× MicroSD Card Slot (Up to 512GB) |

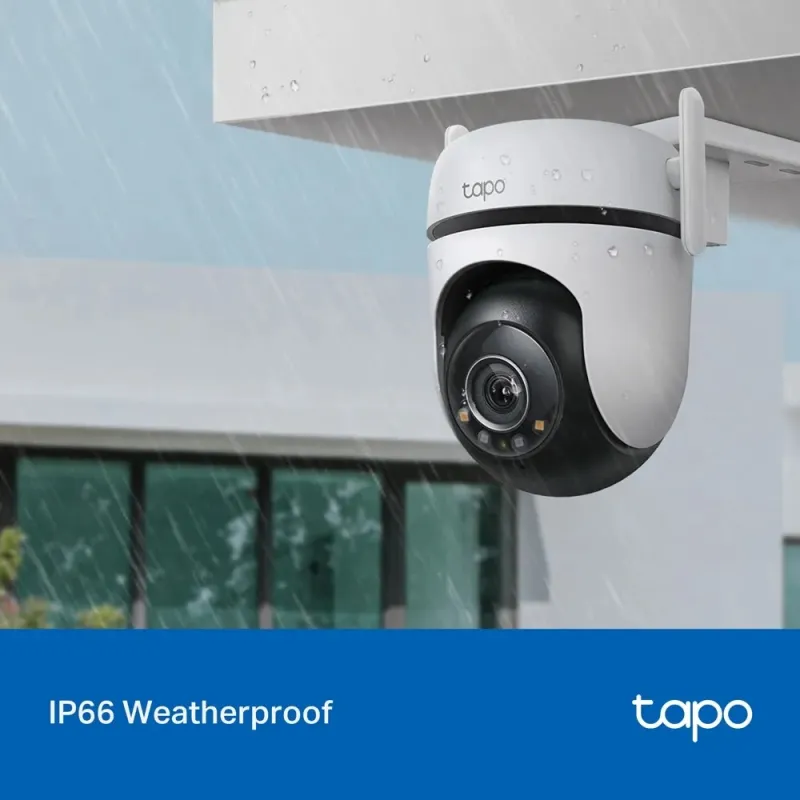

| Weatherproof Rating | IP66 |
| View Range | 360° horizontal and 130° vertical |
| Resolution | 2K QHD 4MP (2560 × 1440 px) |
|
| Maximum Resolution | 2K QHD 4MP (2560 × 1440 px) |
| Frame Rate | 15/20/25/30 fps (Default 15 fps) |
| Digital Zoom | 12x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3DNR
WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 93 dB (Level measured at 4-inch/10-cm distance) |
|
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
|
| Frame Rate | Up to 25/30fps |
| Video Streaming | 2K QHD |
| Video Compression | H.264 |
|
| AI Detection | Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Line-Crossing Detection
Tamper Detection |
| Activity Zones | Yes |
| Output Notification | System Notification
System Notification with Snapshot (Tapo Care Services) |
|
| Audio Communication | Two-Way |
| Audio Input & Output: | Built-in Microphone and Speaker |
|
| Network Connectivity | Connect via Wi-Fi or Ethernet |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Protocol | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Ethernet Port | 1× 10/100 Mbps RJ45 Port on Camera |
| Wireless Security | WPA/WPA2-PSK |
| RTSP | Yes |
| ONVIF | Yes |
| Standards and Protocols | IEEE 802.11b/g/n |
| Security | 128 bit AES encryption with SSL/TLS |
| Frequency | 2.4GHz |
|
| Security | On-Device Machine Learning
128-bit AES Encryption with SSL/TLS
WPA/WPA2-PSK |
|
| Power Source | 9V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 9 V, 0.85 A (DC Power) |
|
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP66 |
| System Requirements | Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher |
| Mounting Options | Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -30℃~60℃ |
| Storage Temperature | -40℃~60℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| Dimensions | 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm) |
| Package Contents | Tapo C520WS Camera
Power Adapter
Mounting Anchors
Mounting Screws
Bracket Screws
Mounting Template
Mounting Bracket
Waterproof Seal
Waterproof Cable Attachments
Quick Start Guide |
| Certifications | CE, FCC, RoHS, RCM |
|
| Input Trigger | Motion detection, Person detection, Pet detection, Vehicle detection, Line-Crossing detection |
| Output Notification | Snapshot(Tapo care), Clips(Tapo care) |
|
| Operating Temperature | -30 ℃ ~ 60 ℃ (-22 °F ~ 140 °F) |
| Storage Temperature | -40 ℃ ~ 60 ℃ (-40 °F ~ 140 °F) |
| Operating Humidity | 10%~90%RH, Non-condensing |
| Storage Humidity | 0~90%RH, Non-condensing |
|
| Button | RESET Button |
| Indicator LED | System LED |
| Adapter Input | 100-240V, 50/60Hz |
| Adapter Output | 9V, 0.85A (DC Power) |
| Product Dimensions (W x D x H) | 4.9 x 4.8 x 3.5 in. (123.8 x 123 x 90 mm) |
|
| Certification | CE, FCC, RoHS, RCM |
| Package Contents | Tapo C520WS Camera
Power Adapter (3.0m)
Mounting Anchors
Mounting Screws
Bracket Screws
Mounting Template
Mounting Bracket
Waterproof Seal
Waterproof Cable Attachments
Quick Start Guide |
รับประกัน | 2 ปี |
| |
