Product Specification |

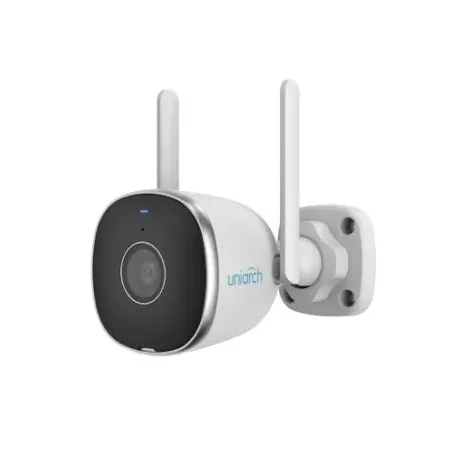

Product Overview | Uho-B2D-M3F3D Uniarch กล้อง IP-Camera แบบ Outdoor เชื่อมต่อ WIFI, ความละเอียด 3MP Lens 2.8mm, Build-In Mic, Speaker, รองรับ Micro-SD 128GB กันน้ำกันฝุ่น IP67 |
รับประกัน | 3 ปี |
Camera |
| Sensor | 1/3.0", 3.0 megapixel, progressive scan, CMOS |
| Minimum Illumination | Colour: 0.003 lux (F1.6 AGC ON)0 lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° |
| S/N | >52dB |
| WDR | DWDR |
Lens |
| Lens Type | [email protected] |
| Iris | Fixed |
| Field of View (H) | 97.5° |
| Field of View (V) | 52.9° |
| Field of View (D) | 108.0° |
DORI |
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 2.8mm | 46.7 | 18.7 | 9.3 | 4.7 |
| 4.0mm | 66.7 | 26.7 | 13.3 | 6.7 |
Illuminator |
| IR Range | Up to 20m (66ft) |
| Warm Light Range | Up to 10m (33ft) |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
Video |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main profile, High profile |
| Frame Rate | Main Stream: 3MP (2304*1296) ), Max 25fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate | 128 Kbps~6 Mbps |
| U-code | Support |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 8 areas |
| Video stream | Dual streams |
Image |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal/Vertical/Horizontal/180° |
| Dewarping | N/A |
| HLC | N/A |
| BLC | N/A |
| Defog | Digital Defog |
Events |
| Basic Detection | Motion detection, Ultra motion detection, Audio detection, Tampering alarm |
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
Audio |
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8KHZ |
Storage |
| Edge Storage | Micro SD, up to 128GB |
| Network Storage | ANR |
Network |
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna |
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP |
| Compatible Integration | API , SDK |
| User/Host | Up to 6 users. 2 user levels: administrator and common user |
| Client | Uniarch ClientUniarch APP |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above |
Interface |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | Support |
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
Certifications |
| EMC | CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)FCC (FCC 47 CFR part15 B) |
| RF | FCC ID (FCC CFR 47 part15 C)CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) |
| Safety | CE LVD (EN 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
General |
| Power | DC 12V±25% |
| Power consumption: Max 5.7W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions (L x W x H) | 148 × 78 × 78mm (5.8" × 3.1" × 3.1") |
| Weight | 0.31 kg (0.68 lb) |
| Material | Metal + Plastic |
| Working Environment | -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Support |
| LED indicator | 1, red/blue |
