Product Specification
|
|
Overview
|

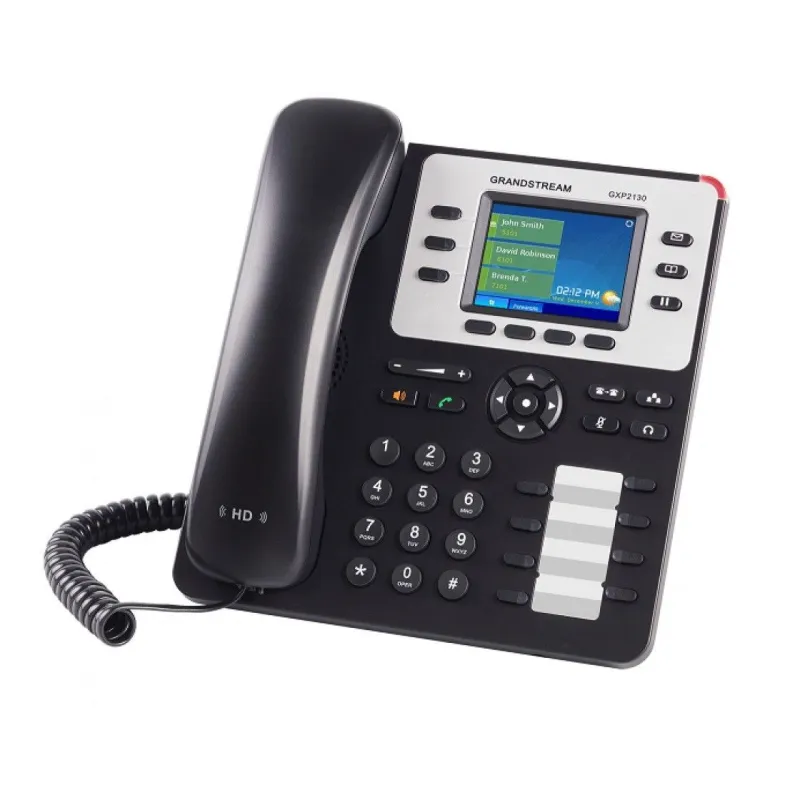

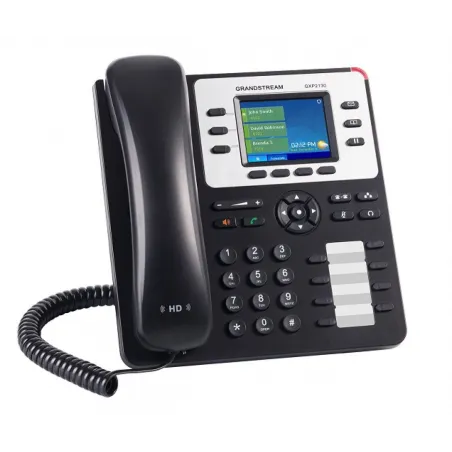

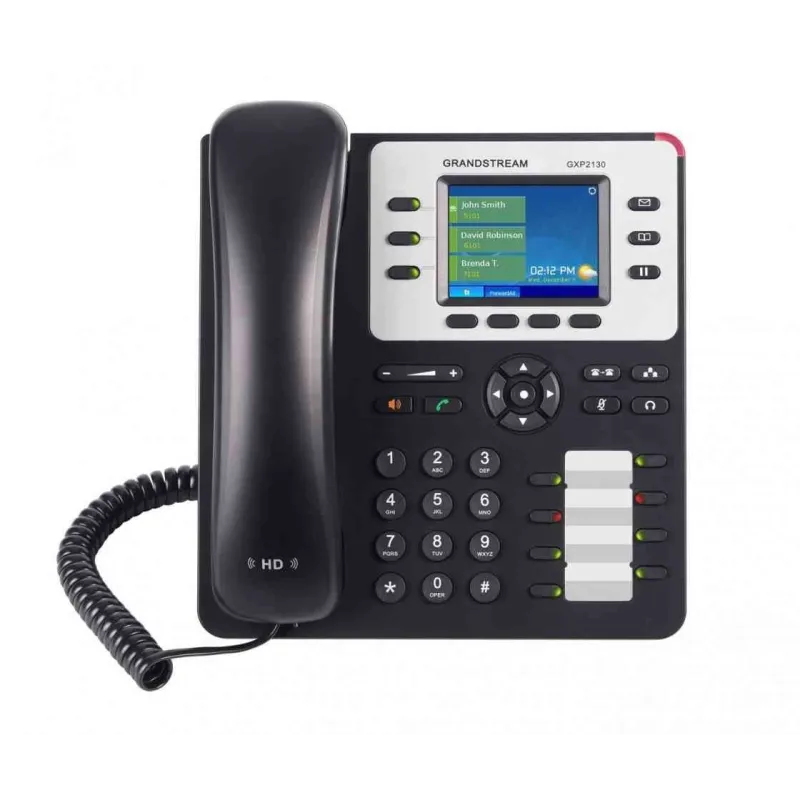

GrandStream GXP-2130 อุปกรณ์ IP-Phone 3 คู่สาย (3 SIP Account), Bluetooth, 2 Port Lan หน้าจอสี TFT LCD, HD Audio รองรับประชุม 4 สาย รองรับ Bluetooth, รองรับ POE 802.3af
|
|
Protocols/Standards
|
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6
|
|
Network Interfaces
|
Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE
|
|
Graphic Display
|
2.8 inch (320x240) TFT color LCD
|
|
Bluetooth
|
Yes, Bluetooth V2.1
|
|
Feature Keys
|
3 line keys with up to 3 SIP accounts, 8 speed-dial/BLF extension keys with dual-color LED, 4 programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for: MESSAGE (with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL-
|
|
Voice Codecs
|
Support for G.729A/B, G.711?/a-law, G.726, G.722 (wide-band), in-band and out-ofband
DTMF (in audio, RFC2833, SIP INFO)
|
|
Auxiliary Ports
|
RJ9 headset jack (allowing EHS with Plantronics headsets), USB
|
|
Telephony Features
|
Hold, transfer, forward, 4-way audio conference, call park, call pickup, shared-call-appearance (SCA)/bridged-line-appearance (BLA), downloadable phonebook (XML, LDAP, up to 2000 items), call waiting, call log (up to 500 records), customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over
|
|
Sample Applications
|
Weather, currency, news, XML
|
|
HD Audio
|
Yes, both on handset and speakerphone
|
|
Base Stand/Wall Mountable
|
Yes, allow 2 angle positions
|
|
QoS
|
Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
|
|
Security
|
User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
|
|
Multi-language
|
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more
|
|
Upgrade/Provisioning
|
Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES
|
|
Power & Green Energy Efficiency
|
Universal power adapter included: Input: 100-240VAC; Output: +12VDC, 0.5A (6W)
Integrated PoE (Power-over-Ethernet) 802.3af, Class 2
|
|
Physical
|
Dimension: 193mm (W) x 211mm (L) x 85mm (H) Unit weight: 0.81kg; Package
weight: 1.44kg
|
|
Temperature and Humidity
|
Operation: 0?C to 40?C, Storage: -10?C to 60?C , Humidity: 10% to 90% Non-condensing
|
|
Package Content
|
GXP2130 phone, handset with cord, base stand, universal power supply, network cable, Quick Start Guide
|
|
Compliance
|
FCC Part 15 ClassB, EN55022 ClassB, EN61000-3-2, EN61000-3-3, EN55024, EN60950-1, EN62479
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950
|
|
รับประกัน
|
Lifetime
|
|
|
