Product Specification |

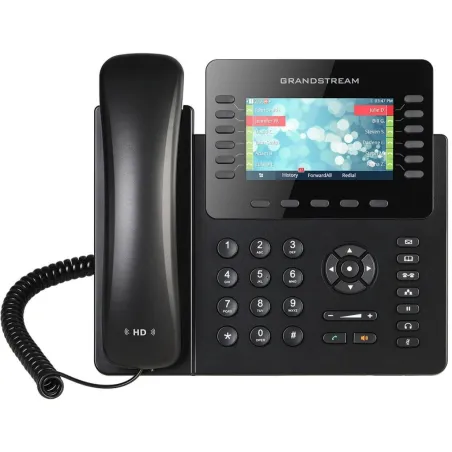

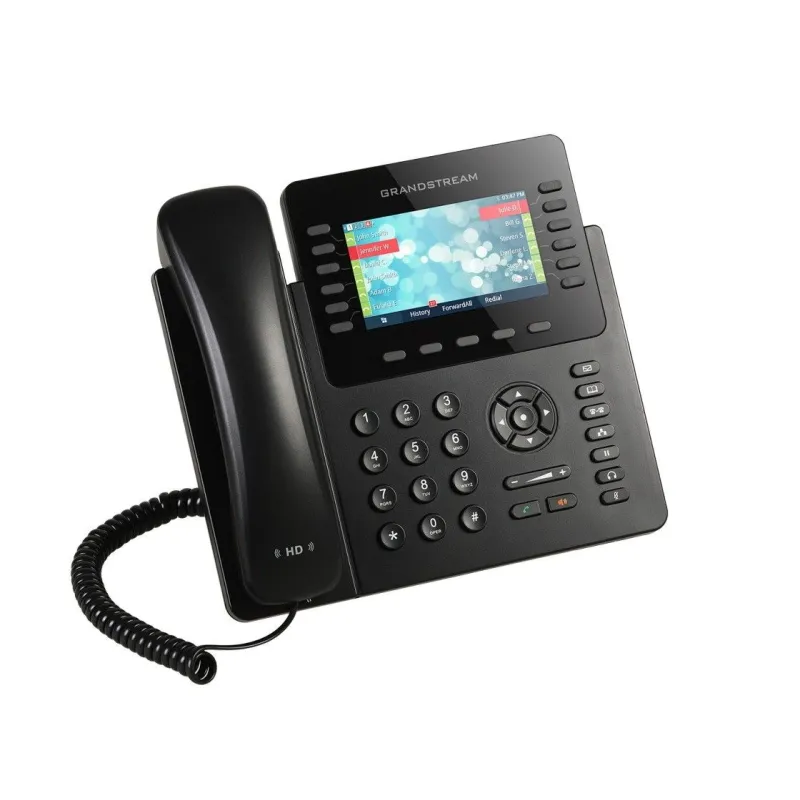

Overview | GrandStream GXP-2170 อุปกรณ์ IP-Phone 3 คู่สาย (3 SIP Account), Bluetooth, 2 Port Lan หน้าจอสี TFT LCD, HD Audio รองรับประชุม 4 สาย รองรับ Bluetooth, รองรับ POE 802.3af |
Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPv6 |
Network Interfaces | Dual switched auto-sensing 10/100/1000 Mbps Gigabit Ethernet ports with integrated PoE |
Graphic Display | 4.3 inch (480x272) TFT color LCD |
Bluetooth | Yes, Bluetooth V2.1 |
Feature Keys | 12 line keys with up to 6 SIP accounts, 5 XML programmable context sensitive softkeys, 5 navigation/menu keys, 11 dedicated function keys for : MESSAGE(with LED indicator), PHONEBOOK, TRANSFER, CONFERENCE, HOLD, HEADSET, MUTE, SEND/REDIAL, SPEAKERPHONE, VOL+, VOL- |
Voice Codecs | Support for G7.29A/B, G.711?/a-law, G.726, G.722(wide-band), in-band and outof-band DTMF(in audio, RFC2833, SIP INFO) |
Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), USB, extension module port |
Telephony Features | Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 2000 items), call waiting, call log(up to 500 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over |
Sample Applications | Weather, currency, news, XML |
HD Audio | Yes, HD handset and speakerphone with support for wideband audio |

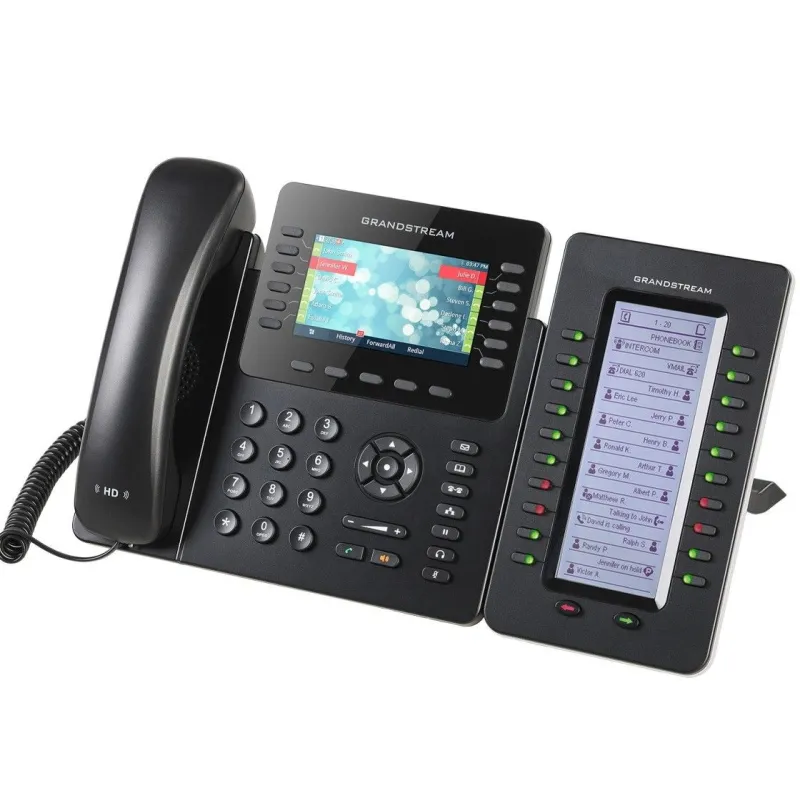

Extension Module | Yes, can power up to 4 GXP2200EXT modules which features a 128x384 graphic LCD, 20 quick-dial/BLF keys which dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit. |

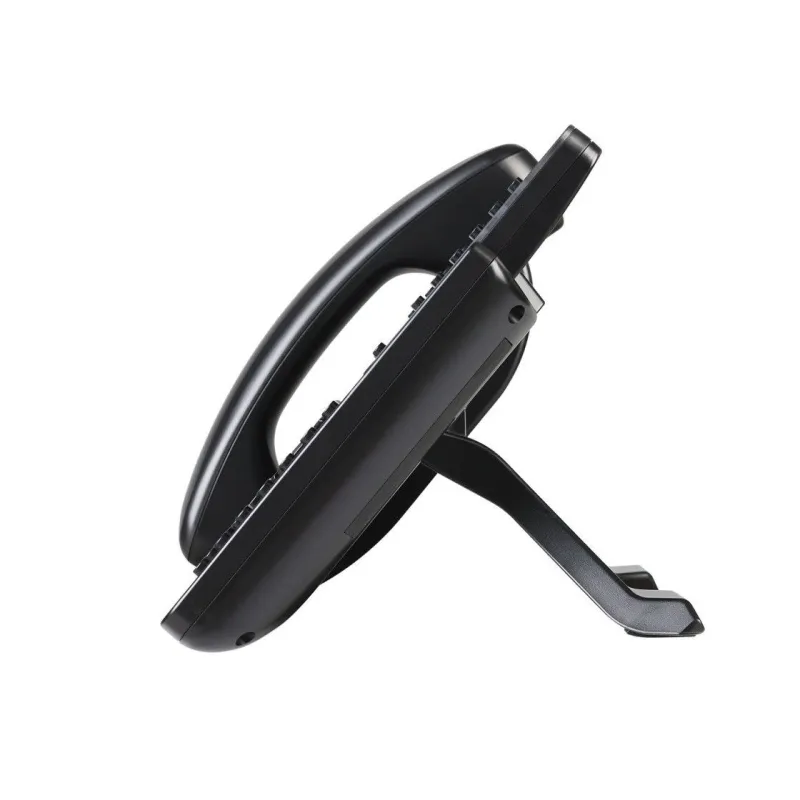

Base Stand/Wall Mountable | Yes, allow 2 angle positions |
QoS | Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS |
Security | User and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control |
Multi-language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more |
Upgrade/Provisioning | Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file. |
Power & Green Energy Efficiency | Universal power adapter included: Input:100-240V ; Output: +12V, 1.0A ;
Integrated Power-over-Ethernet(802.3af)
Max power consumption : 5.4W(without GXP2200EXT) or 9.2W(with 4 cascaded GXP2200EXTs) |
Physical | Dimension: 228mm(W) x 206mm(L) x 46mm(H); Unit weight:0.98kg ; Package
weight:1.43kg |
Temperature and Humidity | Operation: 0?C to 40?C, Storage: -10?C to 60?C , Humidity: 10% to 90% Non-condensing |
Package Content | GXP2170 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, GPL license |
Compliance | FCC: Part 15 (CFR 47) Class B
CE: EN55022 Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1 |
รับประกัน | Limited Life Time |
|
