GXV3240 Administration Guide
GXV3240 User Guide
GXV3240 Quick User Guide
GXV3240 Quick Install Guide
GXV Series Comparison Chart
IP Phone Use Case Scenarios

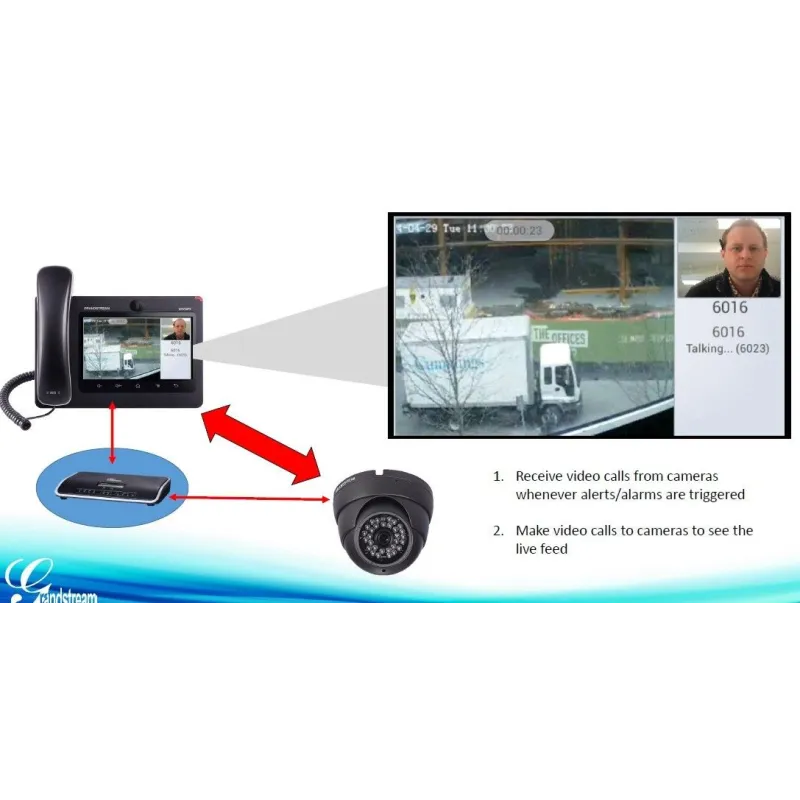

Door Phone Guide
Product Specification | |

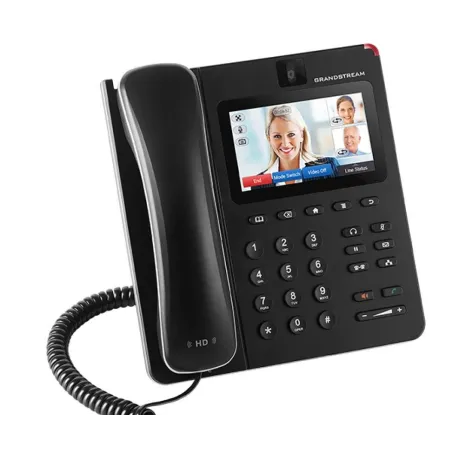

Overview | GrandStream GXV-3240 อุปกรณ์ Video IP-Phone, ระบบปฏิบัติการ Android 4.2 ,6 คู่สาย (6 SIP Account), Build-In Camera, Bluetooth หน้าจอสี Touch Screen, HD Audio รองรับ Wifi, Bluetooth, POE 802.3af |
Protocols/Standards | SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP |
Network Interface | Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE |
Graphic Display | 4.3?(480?272) capacitive (5 points) touch screen TFT LCD |
Camera | Tiltable mega pixel CMOS camera with privacy shutter |
Bluetooth | Yes, integrated. Bluetooth 4.0 + EDR |
Wi-Fi | Yes, integrated. 802.11 b/g/n |
Auxiliary Ports | RJ9 headset jack (allowing EHS with Plantronics headsets), USB, SD, Mini-HDMI, extension module port |
Feature Keys | 11 function keys for PHONEBOOK, BACKSPACE, HEADSET, MUTE, HOLD, MESSAGE, TRANSFER, CONFERENCE, SPEAKERPHONE, SEND?REDIAL, VOLUME. 3 dedicated Android keys for HOME, MENU, and BACK |
Voice Codecs | Support f or G.711?/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729 A/B, in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO) |
Video Codecs and Capabilities | H.264 BP/MP/HP, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conference, anti-flickering, auto focus and auto exposure, PIP (Picture-in-Picture), on-screen-display, camera block, still picture capture/store, video recording, visual voice message indicator |
Telephony Features | Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 6-way audio conference, shared-call-appearance (SCA) / bridged-line-appearance (BLA), virtual MPK, downloadable phone book (XML, LDAP), call waiting, call history, boss-secretary virtual button, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over |
Sample Applications | Skype, Google Hangouts, Microsoft Lync, Web browser, Adobe Flash, Facebook, Twitter, YouTube, news, weather, stock, Internet radio, Pandora, Last.fm, Yahoo Flickr, Photobucket, alarm clock, Google calendar, mobile phone data import/export via Bluetooth, etc. API/SDK available for advanced custom application development |
Applications Deployment | Allows Android OS version 4.2 compliant applications to be developed, downloaded and run in the embedded device with provisioning control |
HD Audio | Yes, both handset and speakerphone support HD (wide-band) audio |

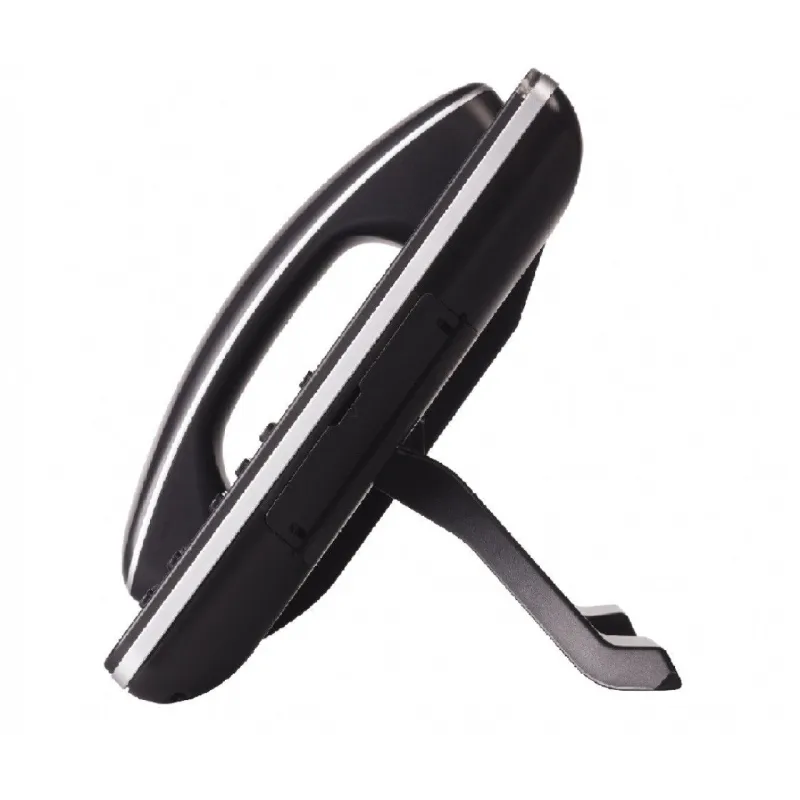

Base Stand | Yes, integrated stand with 2 adjustable angles. Wall mountable |

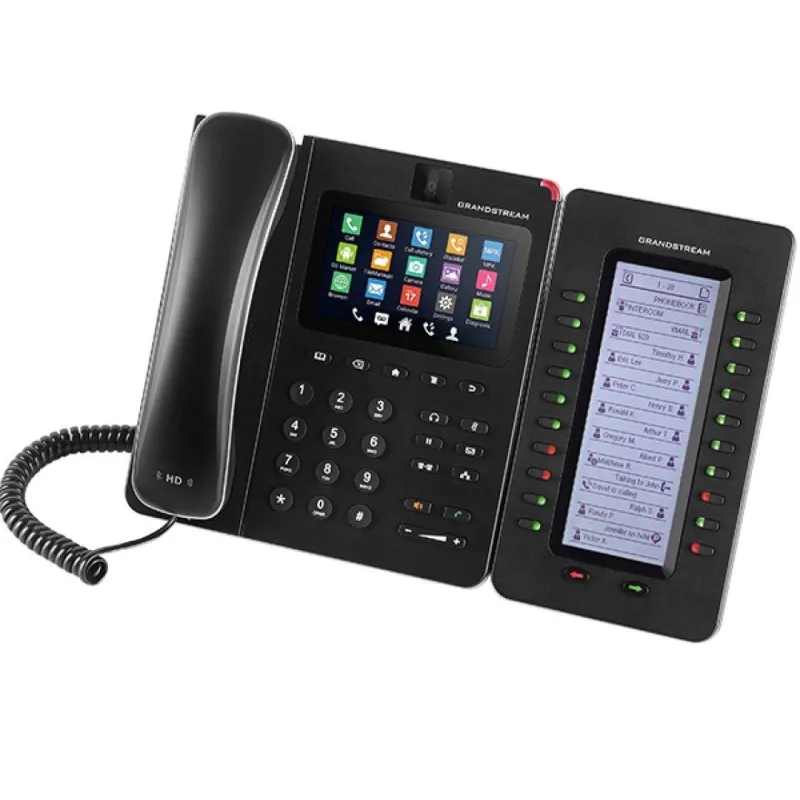

Extension Module | Yes, can power up to 4 GXP2200EXT modules which feature a 128x384 graphic LCD, 20 quick-dial/ BLF keys with dual-color LED, 2 navigation keys, and less than 1.2W power consumption per unit |
QoS | Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS |
Security | User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control |
Multi-language | English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more |
Upgrade/Provisioning | Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file |
Power & Green Energy Efficiency | Universal power adapter included: Input 100-240VAC 50-60Hz; Output 12VDC, 1.5A (18W), Integrated PoE+ (Power-over-Ethernet) 802.3at, Class 4 |
Physical | Dimension: 196.5mm (W) x 206.2mm (L) x 85.2mm (H) |
Temperature and Humidity | Operation: 0?C to 40?C, Storage: -10?C to 60?C, |
Package Content | GXV3240 phone, handset with cord, base stand, universal power supply, network cable, lens cleaning cloth, quick installation guide, brochure, GPL license |
Compliance | FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter) |
รับประกัน | 1 ปี |
