Product Specification
|
|
Overview
|

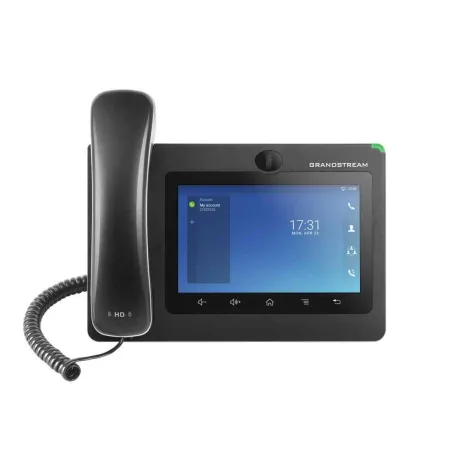

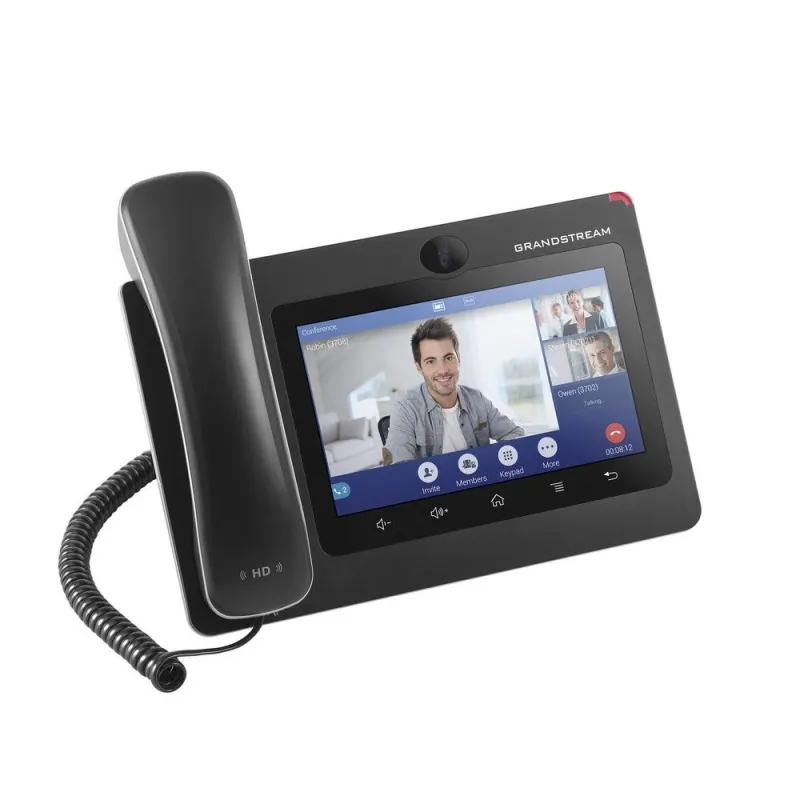

GrandStream GXV-3370 อุปกรณ์ Video IP-Phone, ระบบปฏิบัติการ Android 7 ,16 คู่สาย (16 SIP Account), Build-In Camera, Bluetooth หน้าจอสี Touch Screen 7", HD Audio รองรับ Wifi, Bluetooth, POE 802.3af
ทำ Video Conference ความละเอียดระดับ HD 720p 30fps
|
|
Protocols/Standards
|
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDP-MED, LDAP, TR-069, 802.1x, TLS, SRTP
|
|
Network Interface
|
Dual switched 10/ 100/ 1000 Mbps ports with integrated PoE/PoE+
|
|
Graphic Display
|
7 inch (1024?600) capacitive (5 points) touch screen TFT LCD
|
|
Camera
|
Tiltable mega pixel CMOS camera with privacy shutter
|
|
Bluetooth
|
Yes, integrated. Bluetooth 4.0 + EDR
|
|
Wi-Fi
|
Yes, dual-band 802.11a/b/g/n (2.4GHz & 5GHz)
|
|
Auxiliary Ports
|
RJ9 headset jack (allowing EHS with Plantronics headsets), 3.5mm stereo headset with microphone, USB port, SD, HDMI-out (1.4 up to 720p 30fps)
|
|
Feature Keys
|
2 function keys VOLUME +/-, 3 dedicated Android keys for HOME, MENU, and BACK
|
|
Voice Codecs
|
Support for G.711?/a, G.722 (wide-band), G.726-32, iLBC, Opus, G.729, in-band and out-ofband DTMF (In audio, RFC2833, SIP INFO), VAD, CNG, AEC, PLC, AJB, AGC
|
|
Video Codecs and Capabilities
|
H.264 BP/MP/HP, H.263 CIF/QCIF resolution, video resolution up to 720p, frame rate up to 30 fps, bit rate up to 2Mbps, 3-way video conference, anti-flickering, auto focus and auto exposure, PIP (Picture-in-Picture), on-screen-display, camera block, still picture capture/store, video recording, visual voice message indicator
|
|
Telephony Features
|
Hold, transfer, forward (unconditional/no-answer/busy), call park/pickup, 6-way audio conference, shared-call-appearance (SCA) / bridged-line-appearance (BLA), virtual MPK, downloadable phone book (XML, LDAP), call waiting, call history, boss-secretary virtual button, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over
|
|
Sample Applications
|
Local apps: Contacts, Call History, File Manager, MPK, Settings, Browser, Voicemail, Clock, Recorder, GS Market, etc.
Support 3rd party apps: Skype, Google Hangouts, Skype for Business, etc.
API/SDK available for advanced custom application development
|
|
Applications Deployment
|
Android 7.0 compliant applications to be developed, downloaded and run on the device with provisioning control
|
|
HD Audio
|
Yes, both handset and speakerphone support HD (wide-band) audio
|
|
Base Stand
|
Yes, built-in stand with multiple adjustable angles. Wall mountable.
|
|
QoS
|
Layer 2 QoS (802.1Q, 802.1p) and Layer 3 (ToS, DiffServ, MPLS) QoS
|
|
Security
|
User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
|
|
Multi-language
|
English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese, and more
|
|
Upgrade/Provisioning
|
Firmware upgrade via TFTP / HTTP / HTTPS or local HTTP upload, mass provisioning using TR-069 or AES encrypted XML configuration file
|
|
Power & Green Energy Efficiency
|
Universal power adapter included: Input: 100-240VAC 50-60Hz; Output 12VDC 1.5A Integrated PoE* 802.3af Class 3, PoE+ 802.3at, Class 4
*USB enabled only when power supply or PoE+ is used.
|
|
Temperature and Humidity
|
Operation: 0?C to 40?C, Storage: -10?C to 60?C,
Humidity: 10% to 90% Non-condensing
|
|
Package Content
|
GXV3370 phone, handset with cord, universal power supply, network cable, screen cleaning cloth, quick installation guide, GPL license, wall mount bracket
|
|
Compliance
|
FCC: Part 15 (CFR 47) Class B; UL 60950 (power adapter); Part68 (HAC)
CE : EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, EN60950-1, EN62479, RoHS
RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268 EAC/NZS CISPR22/24; AS/NZS 60950; AS/NZS 4268
|
|
รับประกัน
|
Lifetime
|
|
|
