Product Specification
|
|
Overview
|

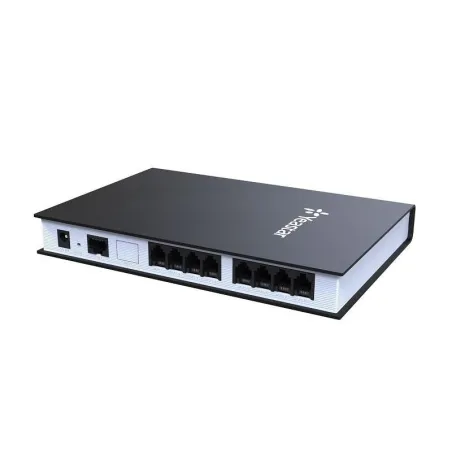

Yeastar TA810 FXO VoIP Gateway 8-FXO Port เชื่อมต่อเครือข่ายโทรศัพท์เข้ากับระบบ IP-PBX ได้ 8 คู่สาย (8 FXO RJ11), 1 Port Lan
เหมาะสำหรับเชื่อมต่อกับระบบโครงข่ายโทรศัพท์แบบเดิมที่เดินสายโทรศัพท์เส้นทองแดงเข้ามาภายในอาคาร
|
|
Features
|
Answer Detection
API
Attack Alert
Auto Provisioning with Yeatsar PBX
Backup and Restore
Call Back
Call Detail Records
Caller ID Display
Firewall
Firmware Upgrade by HTTP/TFTP
Hangup Detection
Hotline
IP Blacklist
Nat Traversal
Packet Capture Tool
Programmable AC Impedance
System Logs
Two-stage Dialing
Web-based Management
|
|
RJ11 FXO Ports
|
8
|
|
LAN
|
1 Port 10/100 Mbps
|
|
WAN
|
N/A
|
|
Protocol
|
SIP (RFC3261), IAX2
|
|
Transport
|
UDP, TCP, TLS, SRTP
|
|
Codec
|
G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM
|
|
Voice Capability
|
ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC
|
|
DTMF Mode
|
RFC2833, SIP Info, In-band
|
|
Fax
|
T.30,
|
|
QoS
|
DiffServ, ToS, 802.1 P/Q VLAN tagging
|
|
Network
|
DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN
|
|
Network Protocol
|
FTP, TFTP, HTTP, HTTPS, SSH
|
|
Management Protocol
|
RADIUS
|
|
Remote Management
|
N/A
|
|
Signaling
|
FXS Loop Start, FXS Kewl Start
|
|
Caller ID
|
BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
|
|
Disconnect Methods
|
Busy Tone, Polarity Reversal
|
|
FXO Connectivity
|
Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection
|
|
Power
|
12V, 1A
|
|
Dimensions (L ? W ? H) (mm)
|
200 ? 137 ? 25
|
|
Operation Range
|
0?C to 40?C, 32?F to 104?F;
|
|
Storage Range
|
-20?C to 65?C, -4?F to 149?F
|
|
Humidity
|
10-90% non-condensing
|
|
Mounting
|
Desktop, Wall-mount
|
|
Compatibility
|
Interoperable with Asterisk, Lync Server, FreePBX and certified with Elastix.
|
|
รับประกัน
|
1 ปี
|
|
|
|
