Product Specification
|
|
Overview
|

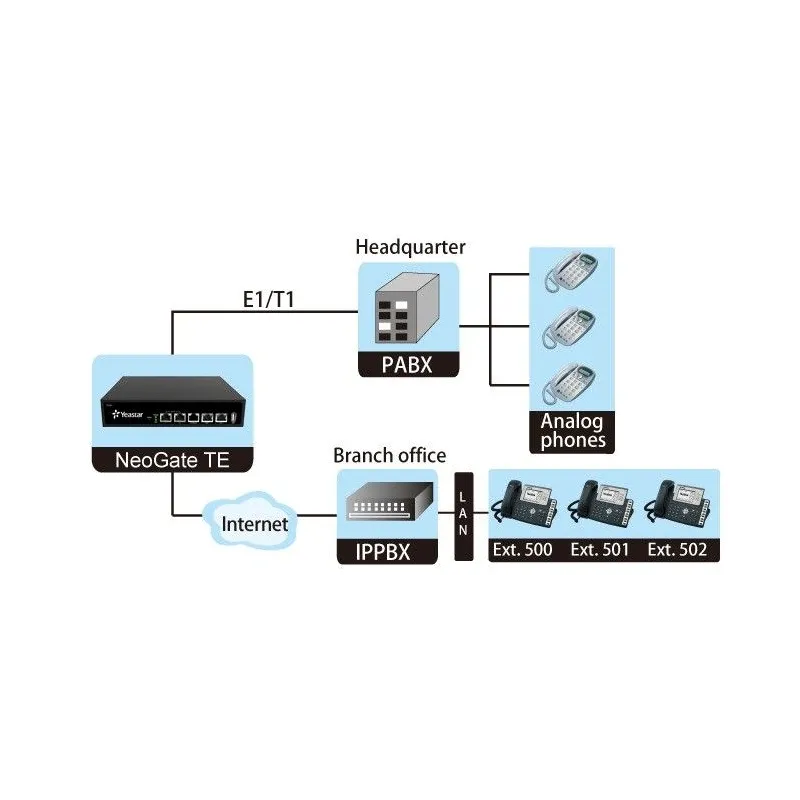

Yeastar TE200 VoIP E1/ T1 /J1 Gateway เชื่อมต่อเครือข่ายโทรศัพท์ E1/ T1 /J1 x 2 Port เข้ากับระบบ IP-PBX สูงสุด 30/60 Concurrent Calls
|
|
Features
|
Blacklist
Call Duration Limitation
Caller ID Prefix
Call Routing Rules
E1/T1/J1 Diagnostics
Firmware Upgrade by HTTP/TFTP
NAT Traversal
T.38 fax
SIP Trunk Support
SIP Registrar for IP phones
Web-based Configuration
Call Detail Record (CDR)
Caller ID
Configure backup/restore
Custom Prompts
Firewall
IP Blacklist
Packet Capture Tool
Trunk Group
SIP Peer Mode
System Logs
|
|
E1/T1/J1 Ports (Support PRI, E&M)
|
2
|
|
LAN
|
1 Port 10/100/1000 Mbps
|
|
WAN
|
1 Port 10/100/1000 Mbps
|
|
Protocol
|
SIP (RFC3261)
|
|
Transport
|
UDP, TCP, TLS, SRTP
|
|
Codec
|
G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
|
|
Echo Cancellation
|
ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer
|
|
DTMF Mode
|
RFC2833, SIP Info, In-band
|
|
Network
|
DDNS, Firewall, PPPoE, Static IP, QoS, Static Route
|
|
Network Protocol
|
FTP, TFTP, HTTP, HTTPS, SSH
|
|
PRI switch types
|
Euro ISDN, nation, Q.SIG
|
|
Caller ID
|
BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
|
|
USB
|
1
|
|
Signaling
|
FXS Loop Start, FXS Kewl Start
|
|
Caller ID
|
BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
|
|
Power Supply
|
AC 100-240V (12V 2A)
|
|
FXO Connectivity
|
Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID Detection
|
|
Power
|
12V, 1A
|
|
Dimensions (L ? W ? H) (mm)
|
213 x 160 x 44
|
|
Operation Range
|
0?C to 40?C, 32?F to 104?F;
|
|
Storage Range
|
-20?C to 65?C, -4?F to 149?F
|
|
Humidity
|
10-90% non-condensing
|
|
รับประกัน
|
1 ปี
|
|
|
|
