RG-RAP6262
Reyee AX3000 High-performance Outdoor Omni-directional Access Point
Pool, Parking, Beach, Warehouse, Traffic Station, Plaza, Playground, Stadium, Park, etc.
Highlight Features
- UFO-style design - perfect blend of high performance and full coverage.
- Wi-Fi 6 ultra-high-speed.
- Long-distance deployment with optical ports.
- IP68 rating, adapting to harsh environments.
- Easily adding extra outdoor Wi-Fi with Reyee mesh.
RG-RAP6262 Product Specification |
Overview | Reyee RG-RAP6262 AX3000 Wi-Fi 6 High-Performance Outdoor Omni-directional Access Point, มาตรฐาน WIFI-6 2.97Gbps, 1 Port Lan 1 Port SFP, กันน้ำ กันฝุ่นมาตรฐาน IP68, Manage ผ่าน Ruijie Cloud, Standalone พร้อม Ruijie Cloud License แบบ Lifetime |
Wi-Fi Standards | Wi-Fi 6 (IEEE 802.11ax)Wi-Fi 5 (IEEE 802.11ac Wave 2)Wi-Fi 4 (IEEE 802.11n)IEEE 802.11aIEEE 802.11b/g |
MIMO | 2.4GHz, 2×2, MU-MIMO5GHz, 2×2, MU-MIMO |
Max. Wi-Fi Speed | 2.4GHz: 574Mbps5GHz: 2402Mbps |
Antenna | 5 |
Antenna Type | Built-In Omnidirectional |
Antenna Gain | 2.4 GHz: 3 dBi5 GHz: 4 dBi |
Transmit Power | EIRP:≤32dBm (2.4GHz)≤34.7dBm (5GHz)country-specific restrictions apply Thailand:2400 MHz~2483.5 MHz ≤ 20 dBm5150 MHz~5350 MHz ≤ 23 dBm5470 MHz~5725 MHz ≤ 25 dBm5725 MHz~5850 MHz ≤ 30 dBm |
Fixed Ports | 1 × 10/100/1000 Base-T port 1 × 1GBase-X SFP port 1 × DC port 1 × Reset button |
Max. Clients | 512 |
Recommended Clients | 110 |
Max. SSIDs | 8 |
Basic Feature |
Recommended Wi-Fi Coverage Radius | 2.4GHz: 50 meters5GHz: 150 metersThe Wi-Fi coverage is related to the installation environment of the access point. |
Max. Wi-Fi Coverage Radius | 300 meters |
Operation Frequency Bands | 802.11b/g/n/ax: 2.400 GHz to 2.4835 GHz802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz , 5.725 GHz to 5.850 GHzcountry-specific restrictions apply |
Software Feature |
Power Adjustment | Support |
Frequency Bandwidth | 2.4 GHz: Auto/20/40 MHz 5 GHz: Auto/20/40/80/160 MHz |
Roaming | Layer 2 roamingLayer 3 roaming |
OFDMA | Support |
Beamforming | Support |
WMM | Support |
Radar Signal Detection and Frequency Hopping (DFS) | Support |
Security Mode | WPA-PSK, WPA2-PSK, WPA/WPA2-PSK |
Blacklist and Whitelist | Support |
Wi-Fi Optimization | Support |
STA Limit | Support |
Removing Low-RSSI STAs | Support |
Adjusting Sending Rate of Beacon and Probe Response | Support |
Syslog Recording Why Users Lose Connection | Support |
Auto Channel and Power Adjustment on Cloud | Support |
RSSI Threshold for STA Access | Support |
Load Balancing | Support |
Network Access Mode | PPPoE ClientDHCP ClientStatic IP |
VLAN | Support |
DHCP Server | Support |
Cloud Management | Support |
APP Management | Support |
APP Upgrade | Support |
APP Restart | Support |
Scheduled Restart | Support |
Default Access/Password | 10.44.77.253 No Password Required by Default |
| Upgrade | Local UpgradeOnline Upgrade |
Dual-bin Backup | Support |
Factory Reset | Support |
System Log | Support |
Diagnostics | Support |
Network Check | Support |
Physical |
LED Indicator | 1 × System LED indicator 1 × Wi-Fi LED indicator 1 × SFP LED indicator 1 × LAN LED indicator |
Buttons | 1 × Reset button |
Dimensions (W × D × H) | 230 mm x 230 mm x 195 mm (Without Mounting Bracket) |
Weight | ≤ 1.4 kg (Without Mounting Bracket) |
Power Supplies | IEEE 802.3at PoEDC 12V/2A |
Power Consumption | ≤ 24W |
Operating Temperature | -30°C to 65°C |
Storage Temperature | -40°C to 85°C |
Operating Humidity | 5% to 95% Noncondensing |
Storage Humidity | 5% to 95% Noncondensing |
IP(Ingress Protection) | IP68 |
Port Surge | 4kV |
ประกัน | 3 ปี |
RG-RAP6262 A Perfect Blend of High Performance and Full Coverage
Enter the Era of Ultra-high Wi-Fi 6 Speed
With a revolutionary combination of OFDMA and 1024QAM, the latest 802.11ax standard, and the 160MHz band,RG-RAP6262 wireless aggregation rate reaches 2.976Gbps.
Support Extra-Distance Access Point Deployment
With gigabit SFP port, the device supports up to 20kmtransmission from datacenter with single mode fiber
Rock-solid in Harsh Environments
Adopts completely sealed, waterproof, dustproof, moisture proof and flame-retardant, wind erosion protection,wide temperature range, and 4kV surge protection design.
Omni-directional Coverage with Long Range

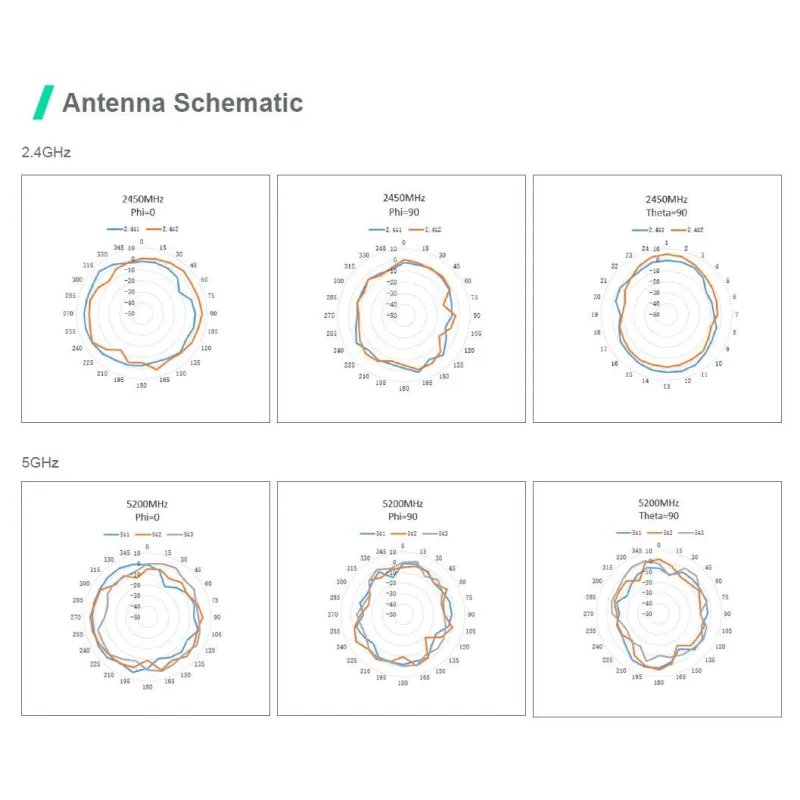

Built-in 5 high gain antennas, supports full coverage with radius of 100 meters at 2.4GHz, and 300 meters at 5GHz*.
Easily Expand Extra Outdoor Wi-Fi with Reyee Mesh
Less wiring, more relaxing

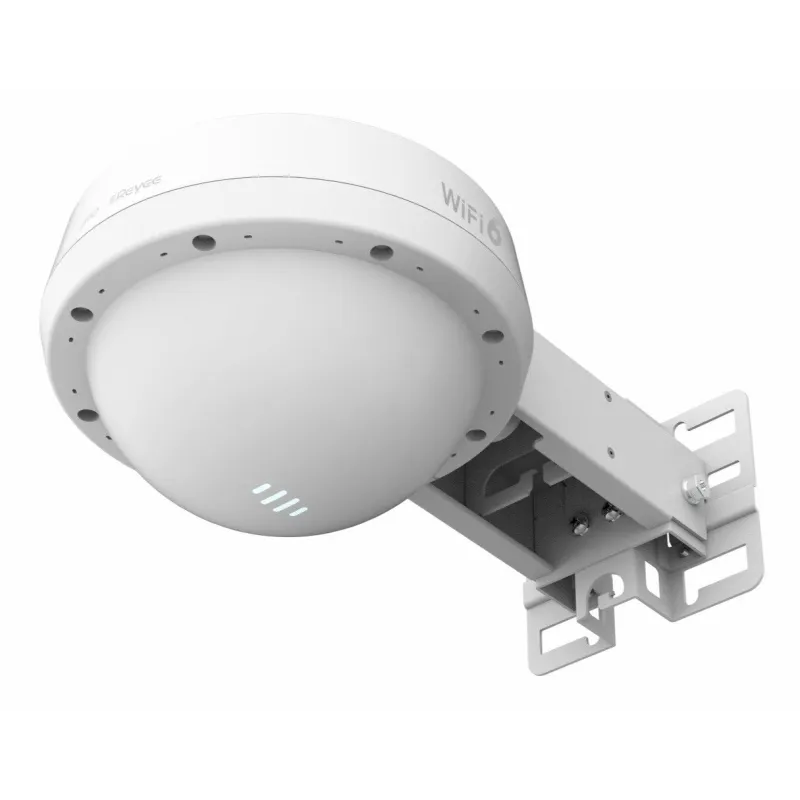

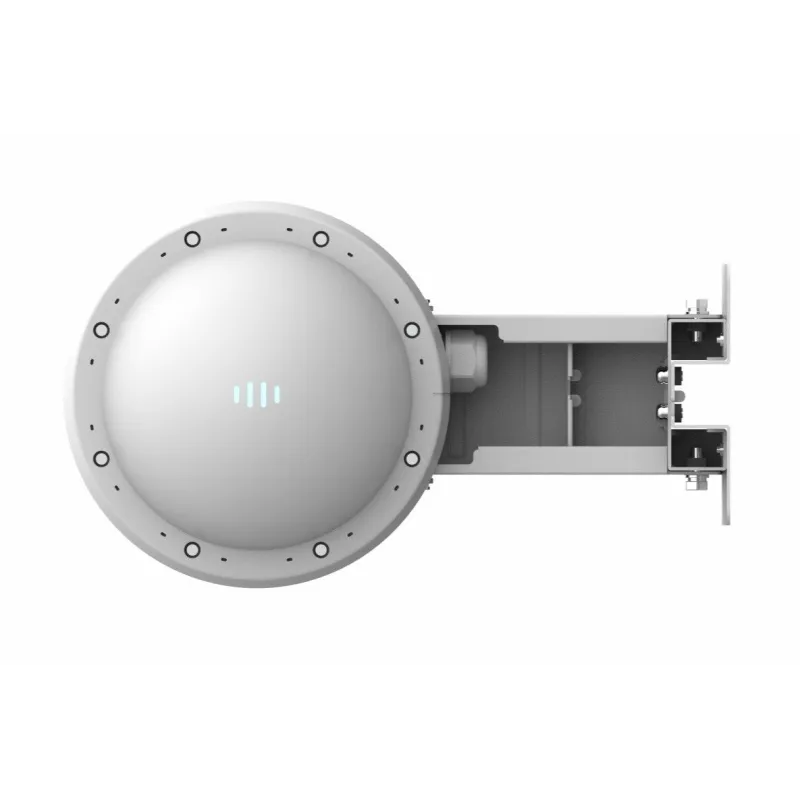

Easy Installation, Firmly Fixed
Rack-separated mounting design, easily installation on high. Replace plastic cable ties by iron hoop.
Cloud, Make Your Business Easy
- Remote monitoring
- Remote Wi-Fi management
- Cloud portal authentication
- Wireless intelligent optimization
