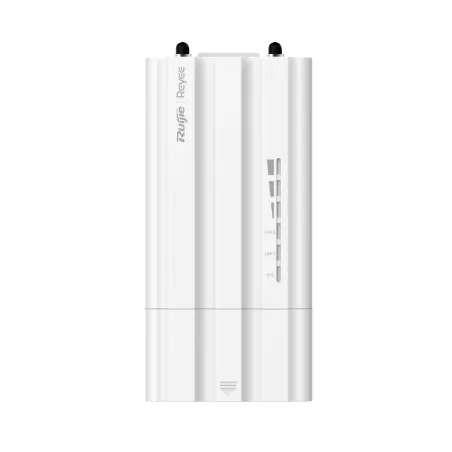

RG-AirMetro550G-B Reyee Base Station Wireless Bridges AC 5GHz

Product Specification

Reyee RG-AirMetro550G-B, Base Station of RG-AirMetro Series Wireless Bridges มาตรฐาน AC, 2 Port LAN Gigabit ใช้ร่วมกับเสาอากาศ AirMetro สำหรับทำ PTP, PTMP ระยะทางสูงสุด 10Km, มาตรฐานกันน้ำ IP55 รองรับ POE

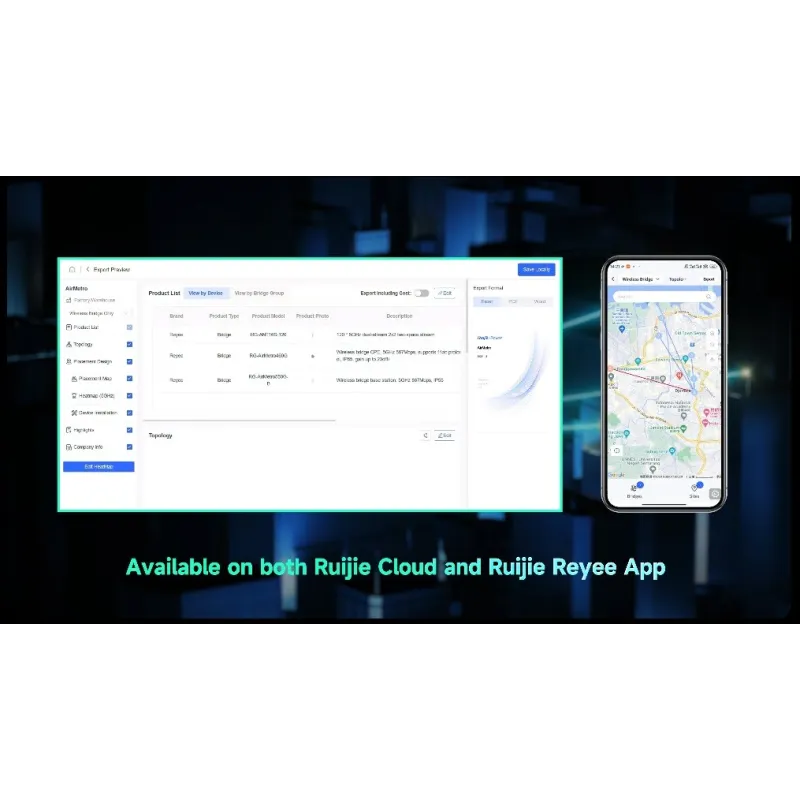

รองรับการ Managed/Monitor ด้วย Ruijie Cloud

Hardware Features

Radio

5 GHz dual-stream
2.4 GHz single-stream

Protocol and Standard

5 GHz: 802.11ac/n/a
2.4 GHz: 802.11b/g/n

Wi-Fi Protocols

Wi-Fi 4 (IEEE 802.11b/g/n)
Wi-Fi 5 (IEEE 802.11ac)

Spatial Streams

5 GHz dual-stream, 2x2 MIMO
2.4 GHz single-stream

2.4G Channel Width

Auto/20/40 MHz

5G Channel Width

Auto/20/40/80 MHz

Receiver Sensitivity

11a: -89 dBm (6 Mbps), -80 dBm (24Mbps), -76dBm (36 Mbps), -71 dBm(54 Mbps); 11n: -83dBm@MCS0, -65dBm@MCS7, -83dBm@MCS8, -65dBm@MCS15; 11ac: -86dBm (MCS0), -63 dBm (MCS9)

Nominal Receive Sensitivity @20 MHz Channel

-91dBm (MCS0) TO - 57dBm (MCS9)

Nominal Receive Sensitivity @40 MHz Channel

-83dBm (MCS0) TO - 57dBm (MCS9)

Nominal Receive Sensitivity @80 MHz Channel

-76dBm (MCS0) TO - 51dBm (MCS9)

Modulation Levels (Adaptive)

MCSO(BPSK) to MCS9 (256QAM)

Wireless Data Rate

867 Mbps

Frequency Bands

2.4 GHz: 802.11b/g/n:
2.4000 GHz to 2.483 GHz

5 GHz: 802.11a/n/ac:
5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz
Note: Country-specific restrictions apply.

2.4 GHz Max. Transmit Power

20 dBm

5 GHz Max. Transmit Power

26 dBm

Surge Protection

Common mode: ±6 kV
Differential mode: ±2 kV

Dimensions (W x D x H)

200 mm x 98.5 mm x 29mm (7.87 in. x 3.88 in. x 1.14 in.) (without bracket)

Weight

0.68 kg

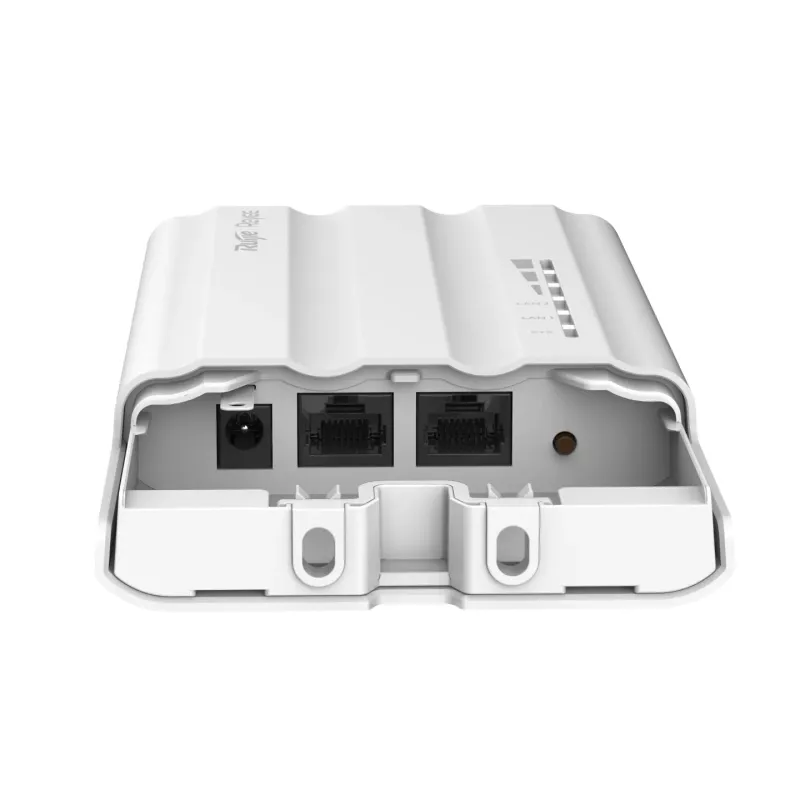

Number of Fixed LAN Ports

Max. LAN Port Rate

1000 Mbps

Power Supply

24 V passive PoE/12 V DC

Local Power Supply

Yes

Antenna Type

Built-in antenna (horizontal/vertical): 90°/7°, 120°/10°, 360°/7°

DC Voltage/Current

12 V/1 A

LEDs

1 x system LED
2 x port LEDs
3 x signal strength LEDs

2.4 GHz Antenna Gain

3 dBi

5 GHz Antenna Gain

Power Consumption

＜12W

IP Rating

IP55

Operating Temperature

Operating temperature:
–30°C to +65°C (–22ºF to +149ºF) (–40°C to +80°C [–40°F to +176°F] in publicity materials)

Storage Temperature

Storage temperature: –40°C to +85°C (–22ºF to +185ºF)

Bridging Performance

200 Mbps/1 km (HT40)
180 Mbps/3 km (HT40)
100 Mbps/5 km (HT40)
(Compared with competing products)

RSSI (dBm)

-60/1 km
-68/3 km
-75/5 km
(Compared with competing products; antenna gain 13 dBi or higher)

Throughput & Camera

Limits：3 MP

35/1 km
30/3 km
16/5 km

Throughput & Camera

Limits：4 to 5 MP

20/1 km
16/3 km
10/5 km

Throughput & Camera

Limits：6 to 7 MP

15/1 km
12/3 km
6/5 km

Throughput & Camera

Limits：7 to 8 MP

10/1 km
8/3 km
5/5 km

Number of PtMP Links

รับประกัน

3 ปี
