Product Specification
|
|
Overview
|

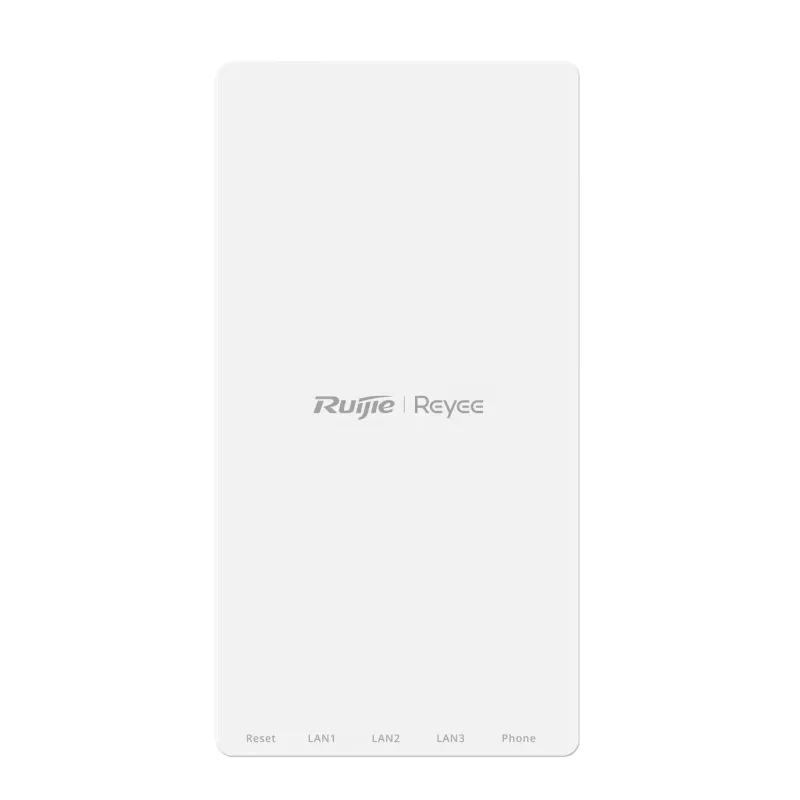

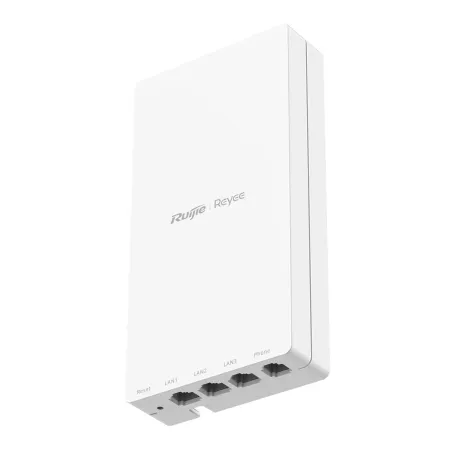

Reyee RG-APF1250 AC1200 e-Lighten Multi-Service Wall-Mount Access Point, มาตรฐาน AC 2x2MIMO, 4 Port Lan Gigabit, 1x1G SC port, 1xRJ11 port, รองรับ Roaming, Manage ผ่าน Ruijie Cloud
|
| Model |
RG-APF1250 |
Hardware Specifications
|
| Wireless Data Rate |
2.4 GHz: 300 Mbps5 GHz: 867 MbpsMax. Wireless Data Rate: 1167 Mbps |
| Number of Spacial Streams |
2.4 GHz, two spatial streams, 2x2 MIMO5 GHz, two spatial streams, 2x2 MIMO |
| 2.4 GHz Wi-Fi Protocols |
Wi-Fi 4: IEEE 802.11b/g/n |
| 5 GHz Wi-Fi Protocols |
Wi-Fi 4: IEEE 802.11a/nWi-Fi 5: IEEE 802.11ac Wave 2 |
| Antenna Gain |
2 dBi |
| 2.4 GHz Recommended Wi-Fi Coverage Range |
15 m (49.21 ft.)Note: The data is obtained under ideal environment without obstruction. Performance may vary depending on client capabilities and environmental interference. |
| 5 GHz Recommended Wi-Fi Coverage Range |
15 m (49.21 ft.)Note: The data is obtained under ideal environment without obstruction. Performance may vary depending on client capabilities and environmental interference. |
| Dimensions (W x D x H) |
165 mm x 86 mm x 29 mm (6.5 in. x 3.39 in. x 1.14 in.) (excluding the mounting bracket) |
| IP Rating |
IP41 |
| QAM Support |
256-QAM |
| Number of Phone & IPTV Transparent Transmission Ports |
0 |
| Power Supply Options |
DC: 12 V/1.5 A |
| Max. Power Consumption |
< 12.95 W |
| Mounting |
Wall-mount |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
Software Features
|
| Recommended Wireless Client Load |
8 (2.4 GHz) + 24 (5 GHz) =32 |
| Number of SSIDs |
8 |
| AP Mesh |
N |
| AP Group |
Y |
| Maximum No. of AP Groups |
8 |
| Disconnecting Clients with a Low RSSI |
Y |
| IPTV |
Y |
| TV Projection |
Y |
| AP Load Balancing |
N |
| OFDMA |
N |
| MU-MIMO |
Y |
| Multi-Link Operation (MLO) |
N |
| Multiple Resource Unit (MRU) |
N |
| WMM (Wi-Fi Multimedia) |
Y |
| Beamforming |
Y |
| Bypass AC Mode |
N |
| Wireless Intelligent Optimization (WIO) |
Y |
| Layer 2 Roaming |
Y |
| Layer 3 Roaming |
N |
| AI Roaming |
Y |
| 802.11k/v Roaming |
Y |
| Quick Roaming (802.11r) |
N |
| SNMP |
N |
| 802.1X Authentication |
N |
| AP Portal Authentication |
N |
| AP Portal Server |
N |
| Password Authentication |
N |
| Max. Number of Blocklists and Allowlists per WLAN |
256 |
| Max. Number of Blocklists and Allowlists per SSID |
256 |
| Number of Global Blocklists and Allowlists |
256 |
| Number of OUI-based Blocklists |
N |
| SSID-based Blocklist and Allowlist |
N |
| Default Login Address/Password |
One-Device entry: 10.44.77.254/eweb.ruijie.com.cn; Network-wide Management entry: 10.44.77.253/Password: admin |
| Management via Web Interface |
Y |
| Management via Ruijie Reyee App |
Y |
| Management via Ruijie Cloud |
Y |
|
ประกัน
|
ประกันศูนย์ Ruijie Thailand 3 ปี
|
