Physical Specifications
|
|
RG-AP880-AR
|
|
Dimensions (W × D × H)
|
230 mm × 230 mm × 51 mm
|
|
Weight
|
AC: 1.0 kg
Bracket: 0.1 kg
|
|
Installation
|
Ceiling/wall-mountable
|
|
Lock Option
|
Kensington lock and security screw
|
|
Radio Specifications
|
RG-AP880-AR
|
|
Radio Design
|
4 ย่านความถี่

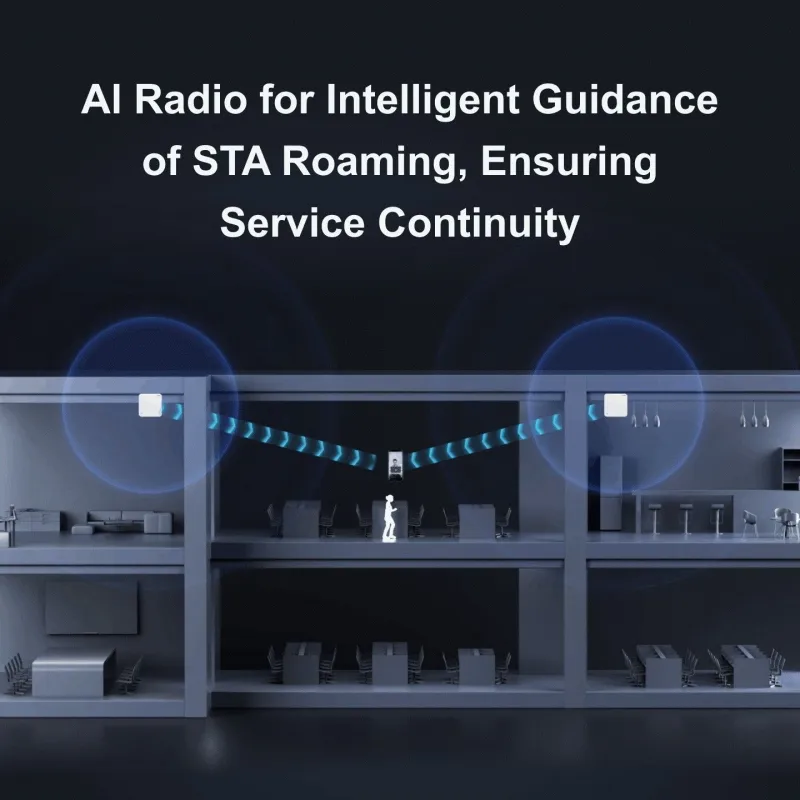

Quad-radio design, including one AI radio that can switch between the 2.4 GHz and 5 GHz frequency bands.
Up to 10 patial streams;
Radio1: 2.4 GHz: 2 spatial streams, 2 × 2 MIMO
Radio 2: 5 GHz: 2 spatial streams, 2 × 2 MU-MIMO
Radio 3: 5 GHz: 4 spatial streams, 4 × 4 MU-MIMO
Radio 4: 2.4 GHz/5 GHz: 2 spatial streams, 2 × 2 MU-MIMO
|
|
Operating Frequencies
|
IEEE 802.11b/g/n/ax: 2.4 GHz to 2.4835 GHz
IEEE 802.11a/n/ac/ax: 5.150 GHz to 5.350 GHz, 5.725 GHz to 5.850 GHz
(Note: The operating band varies in different countries.)
|
|
Data Rate
|
Radio 1: 2.4 GHz, 575 Mbps
Radio 2: 5 GHz, 2.4 Gbps
Radio 3: 5 GHz, 4.8 Gbps
Radio 4: 2.4 GHz/5 GHz, 300 Mbps/867 Mbps
Maximum wireless rate of the AP:
2.4 GHz + 5 GHz + 5 GHz + 2.4 GHz, 8.075 Gbps
2.4 GHz + 5 GHz + 5 GHz + 5 GHz, 8.642 Gbps
|
|
Antenna Type
|
Built-in smart antenna
|
|
Antenna Gain
|
2.4 GHz: 3 dBi
5 GHz: 3 dBi
|
|
Maximum Transmit Power
|
20 dBm
(Note: The transmit power varies based on the regulations in different countries and regions.)
|
|
Power Adjustment
|
Configurable in increments of 1 dBm
|
|
Modulation
|
802.11b: BPSK, QPSK, CCK
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
|
|
Receiver Sensitivity
|
IEEE 802.11b: –96 dBm (1 Mbps), –93 dBm (5 Mbps), –89 dBm (11 Mbps)
IEEE 802.11a/g: –91 dBm (6 Mbps), –85 dBm (24 Mbps), –80 dBm (36 Mbps), –74 dBm (54 Mbps)
IEEE 802.11n: –90 dBm@MCS0, –70 dBm@MCS7, –89 dBm@MCS8, –68 dBm@MCS15
IEEE 802.11ac: HT20: –88 dBm (MCS0), –63 dBm (MCS9)
IEEE 802.11ac: HT40: –85 dBm (MCS0), –60 dBm (MCS9)
IEEE 802.11ac: HT80: –82 dBm (MCS0), –57 dBm (MCS9)
IEEE 802.11ax: HE80: –82 dBm (MCS0), –57 dBm (MCS9), –52 dBm (MCS11)
IEEE 802.11ax: HE160: –79 dBm (MCS0), –53 dBm (MCS9), –50 dBm (MCS11)
|
|
Item
|
RG-AP880-AR
|
|
Bluetooth
|
Bluetooth 5.1
|
|
USB Port
|
USB 3.0
|
|

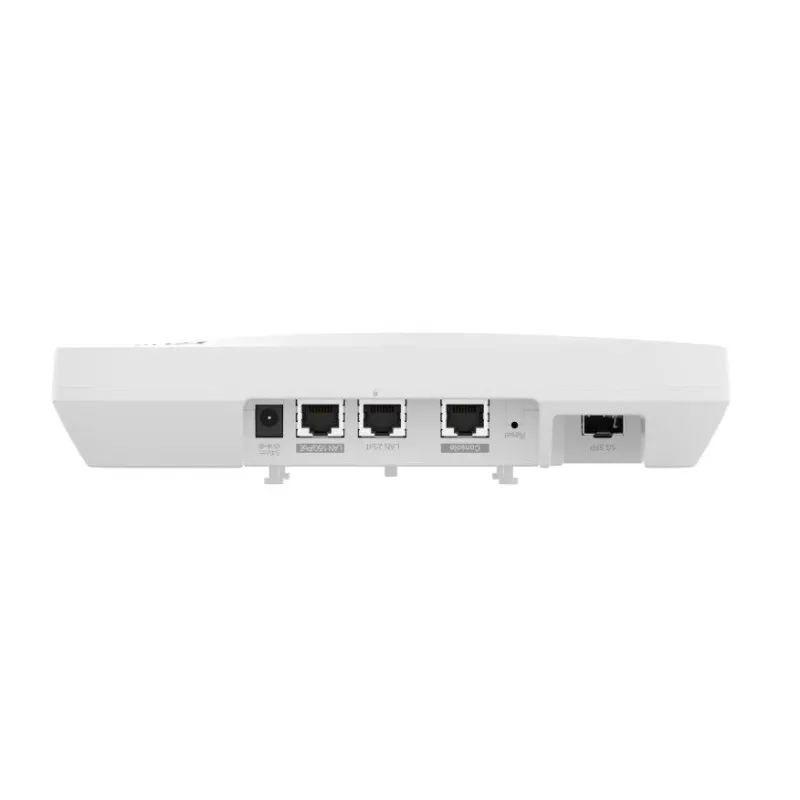

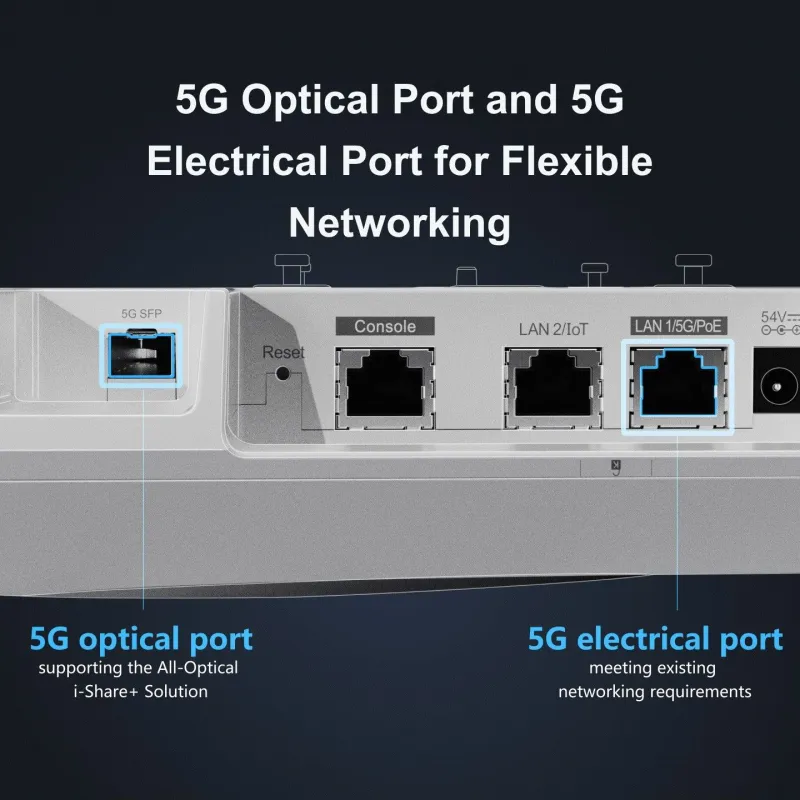

Fixed Service Port
|
One 100/1000/2500/5000Base-T Ethernet port with auto-neogitiation, IEEE 802.3af/802.3at/802.3bt-compliant
One 5GE SFP port, compatible with 1GE and 2.5GE SFP modules
One 10/100/1000Base-T Ethernet port with auto-neogitiation, supplying power to IoT modules (48 V/12.95 W)
|
|
Fixed Management Port
|
One RJ45 console port
|
|
Status LED
|
One system status LED
|
|
Button
|
One reset button
|
|
Power Supply and Consumption
|
RG-AP880-AR
|
|
Input Power Requirements
|
DC input: 54 V/1.1 A
PoE/PoE+/PoE++ (IEEE 802.3af/at/bt-compliant) แนะนำให้ใช้ POE มาตรฐาน 802.3bt เพื่อประสิทธิภาพสูงสุด
Note: If IEEE 802.3at-compliant PoE is adopted, the AP can be normally powered on, but AI Radio is disabled, and the downlink port and USB port cannot supply power to external devices.
|
|
Power Supply to External Device
|
Supported, supplying power to IoT modules through the PoE-capable Ethernet port
|
|
Maximum Power Consumption
|
40 W
|
|
Environment and Reliability
|
RG-AP880-AR
|
|
Temperature
|
Operating temperature: –10°C to +50°C (14°F to 122°F)
Storage temperature: –40°C to +70°C (–40°F to +158°F)
At a height between 3000 m (9842.52 ft.) to 5000 m (16404.20 ft.) above the sea level, every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).
|
|
Humidity
|
Operating humidity: 5%RH to 95%RH (non-condensing)
Storage humidity: 5%RH to 95%RH (non-condensing)
|
|
Safety Standard
|
GB 4943.1, IEC 62368-1
|
|
EMC Standard
|
EN300386, GB19286, GB17618
|
|
Software Specifications
|
RG-AP880-AR
|
|
WLAN Functions
|
Maximum number of connected STAs: 1552
SSID hiding
Separate authentication mode, encryption mechanism, and VLAN attributes for each SSID
Remote Intelligent Perception Technology (RIPT)
Intelligent terminal recognition technology
Intelligent load balancing based on terminal quantity or traffic
STA limit
- SSID-based STA limit
- Radio card-based STA limit
Bandwidth limit: STA/SSID/AP-based rate limit
Fat/Fit mode switching:
- When the device works in fit mode, it can be switched to fat mode via an AC.
- When the device works in fat mode, it can be switched to fit mode through the local console port or Telnet mode.
|
|
Security
|
PSK and web authentication
Data encryption: WEP (64/128-bit), WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3
WeChat-based authentication
QR code-based visitor authentication
SM-based authentication
MAB authentication
Data frame filtering: whitelist, static blacklist, dynamic blacklist
User isolation
Rogue AP detection and containment
Dynamic ACL assignment
Remote authentication dial in user service (RADIUS)
CPU Protect Policy (CPP)
Network Foundation Protection Policy (NFPP)
|
|
Routing Switching
|
IPv4 features: static IPv4 address and dynamic IPv4 address obtained via DHCP
Multicast-to-unicast conversion
PPPoE client
IPSec VPN
FTP ALG/DNS ALG
|
|

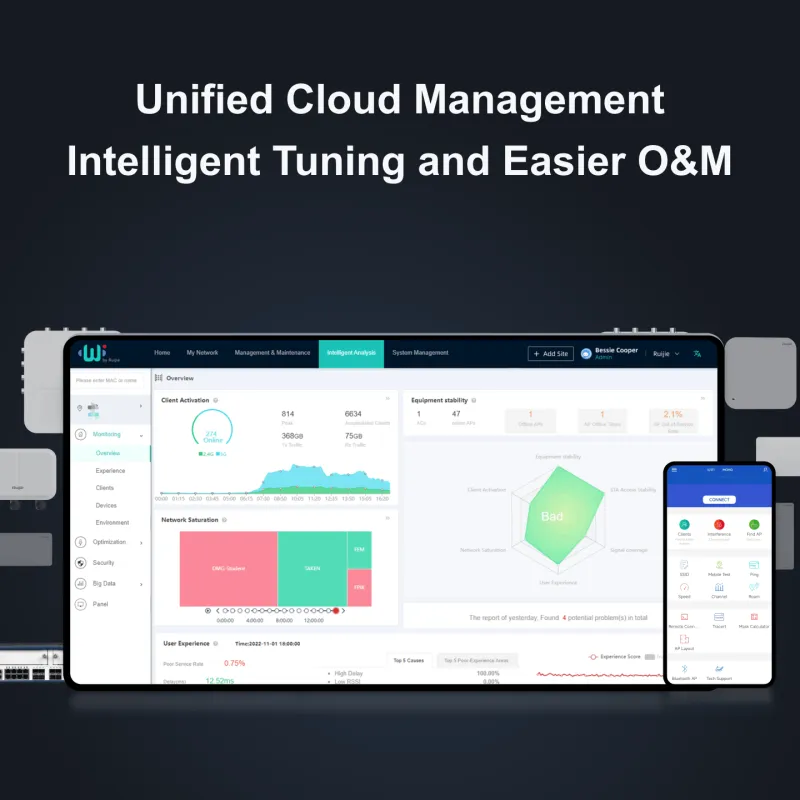

Management and Maintenance
|
Network management via Telnet or TFTP
Web-based management
Wireless positioning: RBIS
Wireless marketing: WMC/MCP
Fault detection and alarm
Information statistics and logs
|
|
Weight
|
Device : 0.6kg
Mounting Kit : 0.2kg
|
|
ประกัน
|
ทางร้านเป็นตัวแทนจำหน่ายอย่างเป็นทางการ ประกันศูนย์ Ruijie Thailand 3 ปี
|
