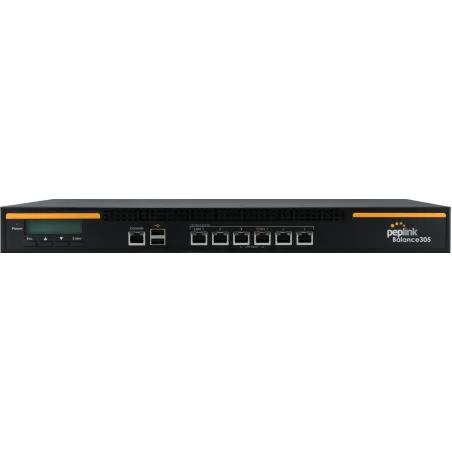

Peplink Balance 305 (BPL-305) Loadbalance 3 Wan VPN 20 Tunnels รองรับ Internet 1Gbps 500 Users

Product Specification

Overview

Peplink Balance 305 (BPL-305) Loadbalance 3 Wan, VPN 20 Tunnels รองรับ Internet ความเร็ว 1Gbps, รองรับ User ได้ถึง 500 Users พร้อม Port USB เชื่อมต่อ 4G Modem เทคโนโลยี SpeedFusion  เหมาะสำหรับเครือข่ายที่ต้องการความเสถียรสูงมาก

WAN Interface

3 Port ความเร็ว Gigabit 10/100/1000Mbps Ethernet Ports
1 x USB Interface รองรับ 3G Modem

LAN Interface

3 Port ความเร็ว Gigabit 10/100/1000Mbps

Wi-Fi Interface

-

Wi-Fi AP Operating Frequency

-

Router Throughput

1Gbps

Recommended Users

500 Users

802.1Q VLANs Supports

128

Port-Based VLAN

รองรับ VLAN Port Base

Number of VPN / SpeedFusion Peers

2/20

PepVPN / SpeedFusion Throughput

150Mbps

Number of IPsec Tunnels

20

Recommended PPTP VPN Users

50

Power Input

Device: 12V – 24V DC
AC Adapter: AC Input 100V – 240V, DC Output 12V

Power Consumption

50W (max.)

Dimension

44 x 426 x 305 mm (H x W x D)

Weight

4 Kg.

Operating Temperature

-0? – 40?C

Humidity

15% – 95% (non-condensing)

Certifications

FCC, CE, RoHS

Features

WAN

USB 4G/3G Modem Support
Support for PPPoE, Static IP, DHCP
Support for Dynamic DNS services
WAN Link Health Check

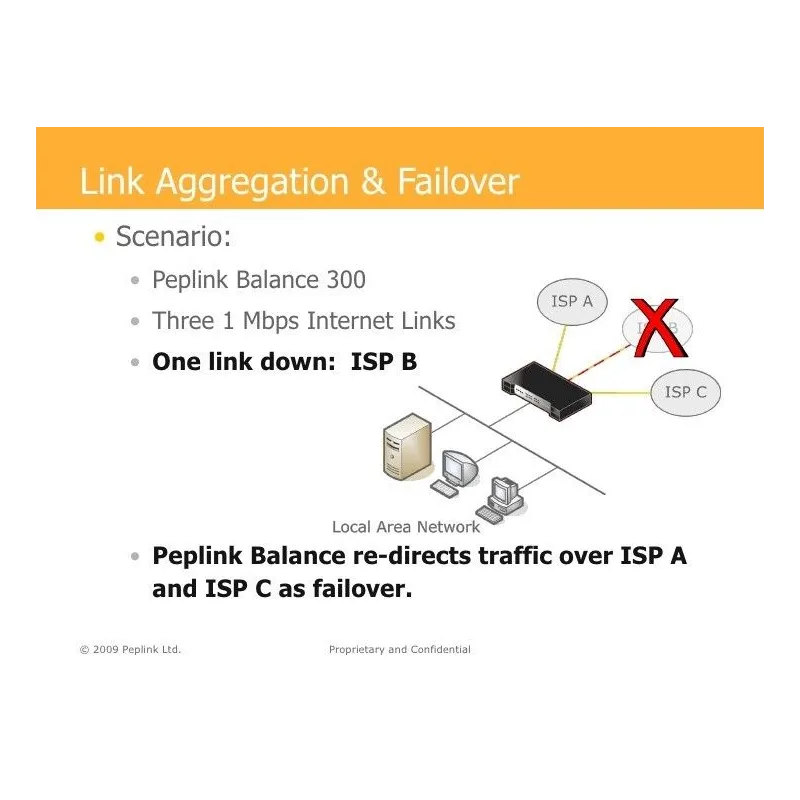

Intelligent Failover
Bandwidth Allowance Monitor

LAN

DHCP Server for LAN Clients
Extended DHCP Options
DHCP Reservation
DNS Proxy for LAN Clients
Per-Port VLAN

Security

Stateful Firewall
DoS Prevention

AP Controller

AP Controller Support
Wi-Fi Usage Statistics

Complete VPN Solution

PepVPN/SpeedFusion ^
Site-to-Site VPN
Bandwidth Aggregation ^
Hot Failover ^
256-bit AES Encryption
Pre-shared Key Authentication
Dynamic Routing
L2TP with IPsec VPN Server
PPTP VPN Server
RADIUS, LDAP Authentication
IPsec VPN (Network-to-Network)

Load Balancing

Intelligent Failover
Session Persistence
Per-Service Load Distribution
Multiple Algorithms

Networking

NAT and IP Forwarding
Static Routes
Port Forwarding
Many to One, One to One NAT
NAT Pool
SIP ALG, H.323 ALG
UPnP, NAT-PMP
WINS Server

Advanced QoS

User Groups
Bandwidth Reservation
Individual Bandwidth Limit
Application Prioritization
By User Groups
SIP, HTTPS, VPN QoS
Custom Application QoS
Web Blocking Blacklist

Captive Portal Support

Support for Wired and Wireless LAN Clients
Support RADIUS Authentication
Time and Usage Quotas on Open
Access Mode
Built-in Customizable Splash Page

Device Management

Web Administrative Interface
Command Line Interface

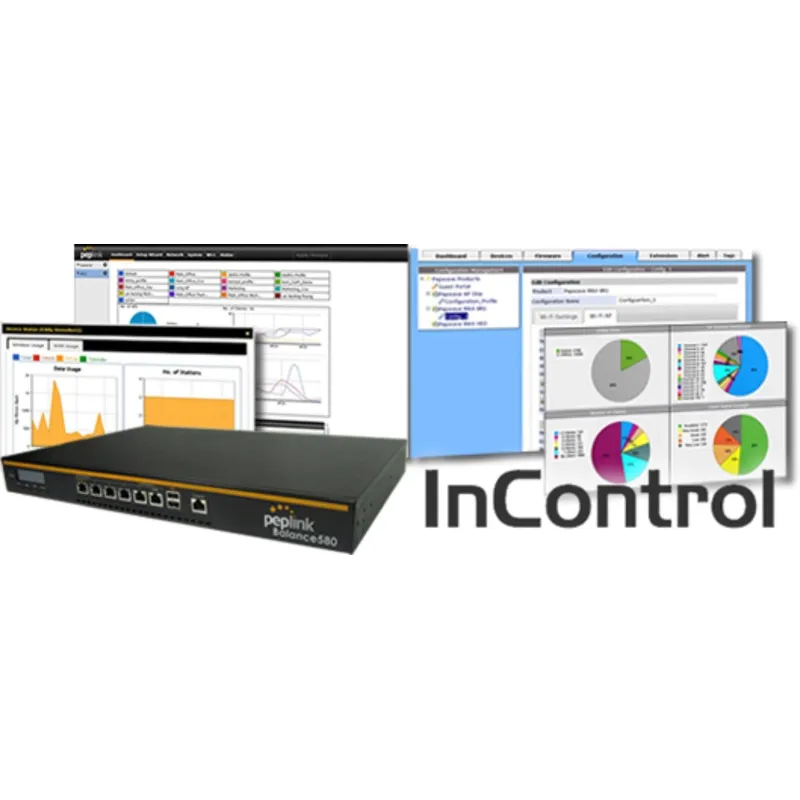

InControl Cloud Management
Email Notification
Active Client & Session Lists
Bandwidth Usage Statistics
Syslog Service
SNMP v1, v2c and v3

Package Content

-

รับประกัน

รับประกัน 1 ปี มีอุปกรณ์สำรองใช้ระหว่างประกัน (สามารถต่ออายุประกันด้วย PepLink Smart Care)
