Zyxel GS-1300-18HP Datasheet
Mode Extended Range รองรับสาย Lan ยาว 200 เมตร Switch Zyxel GS1300 Series

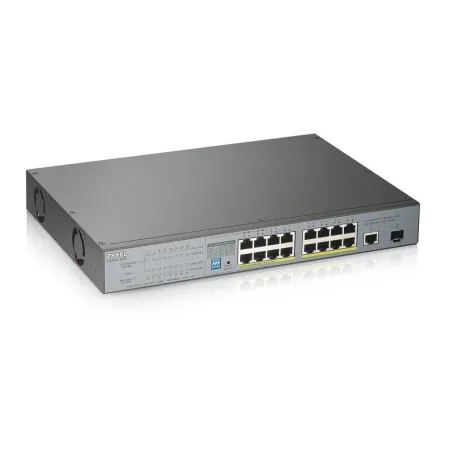

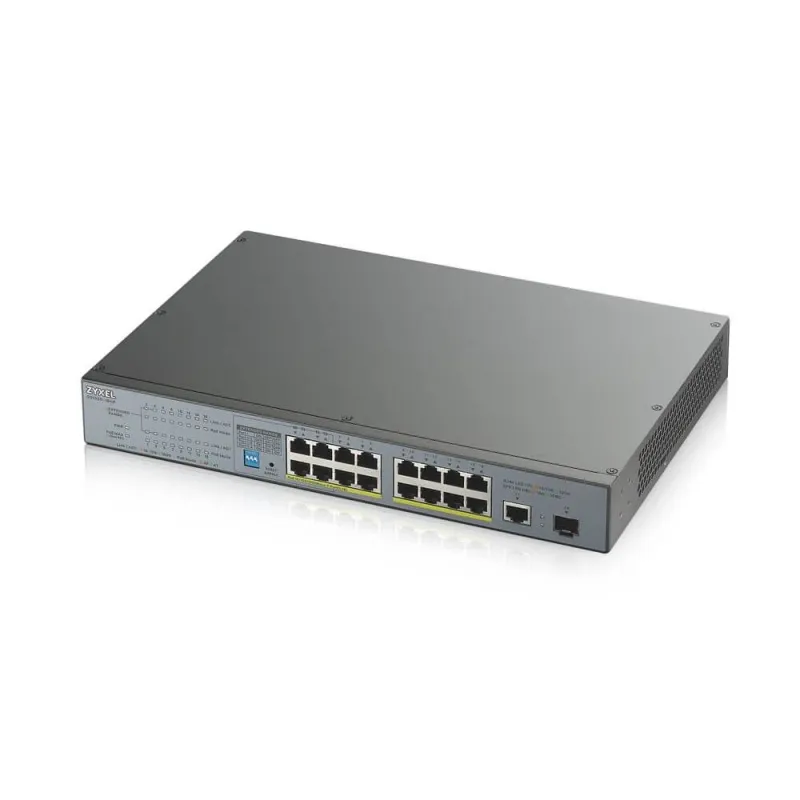

Zyxel GS1300-18HP Unmanaged Gigabit POE Switch
|
Overview
|
Zyxel GS1300-18HP Unmanaged Gigabit POE Switch 16 Port ความเร็ว Gigabit , 1 Port SFP
จ่ายไฟ POE มาตรฐาน 802.3af/at ได้ 16 Port กำลังไฟสูงสุด 170W
Mode Extended Range ใช้ร่วมกับสาย Lan ความยาวได้สูงถึง 250 เมตร
|
|
Total port count
|
18
|
|
100/1000 Mbps
|
17
|
|
Gigabit SFP
|
1
|
|
Configurable extended range ports
|
4
|
|
PoE ports
|
16
|
|
Total PoE budget (watt)
|
170
|
|
PoE 802.3at
|
Yes
|
|
Switching capacity (Gbps)
|
36
|
|
Forwarding rate (Mpps)
|
26.7
|
|
Packet buffer (byte)
|
525 K
|
|
MAC address table
|
8 K
|
|
Input
|
100 - 240 V AC, 50/60 Hz
|
|
Max. power consumption (watt)
|
205.7
|
|
Dimensions (WxDxH)(mm/in.)
|
330 x 230 x 44 /
12.99 x 9.06 x 1.73 |
|
Weight (kg/lb.)
|
2.31/5.09
|
|
Included accessories
|
Power cord
Rack mounting kit
|
|
Operating
|
Temperature -20?C to 50?C/-4?F to 122?F
Humidity 5% to 95% (non-condensing)
|
|
Storage
|
Temperature -40?C to 70?C/-40?F to 158?F
Humidity 5% to 95% (non-condensing)
|
|
MTBF (hr)
|
378,972
|
|
Heat dissipation (BTU/hr)
|
701.437
|
|
Acoustic noise @ 25?C (dBA)
|
48
|
Design For Surveillance
Crafted for CCTV, Zyxel introduces the brand-new GS1300 unmanaged switch for surveillance applications.
New outlook
Coated in titanium grey, the GS1300 excels with an eye-catching identity dedicated for surveillance Switch. On top of the conventional unmanaged switch, GS1300 comes with special design for CCTV adoption.
Easy for long-distance deployment
The GS1300 series overcomes the 100 meter limitation of Ethernet, and fulfills the need to deploy IP camera or powered devices using existing Cat 5e cable to distant locations. By toggling the DIP switch to turn on the extended-range mode, instantly achieve distant deployments up to 250 meters. Save your money and effort with simply one PoE Switch.
