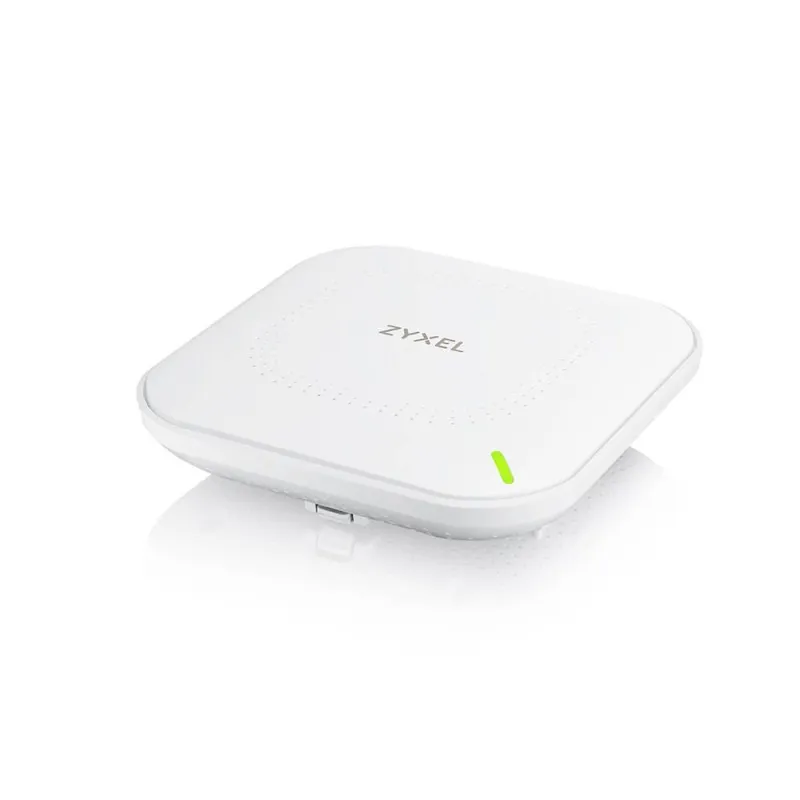

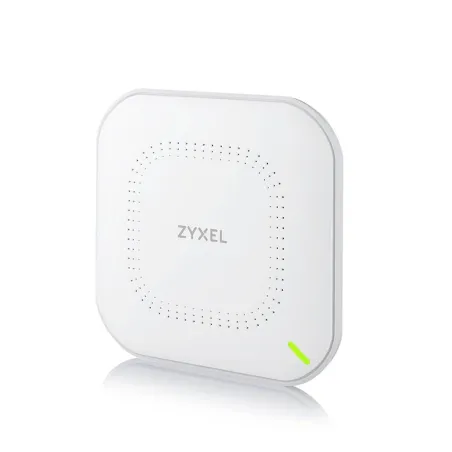

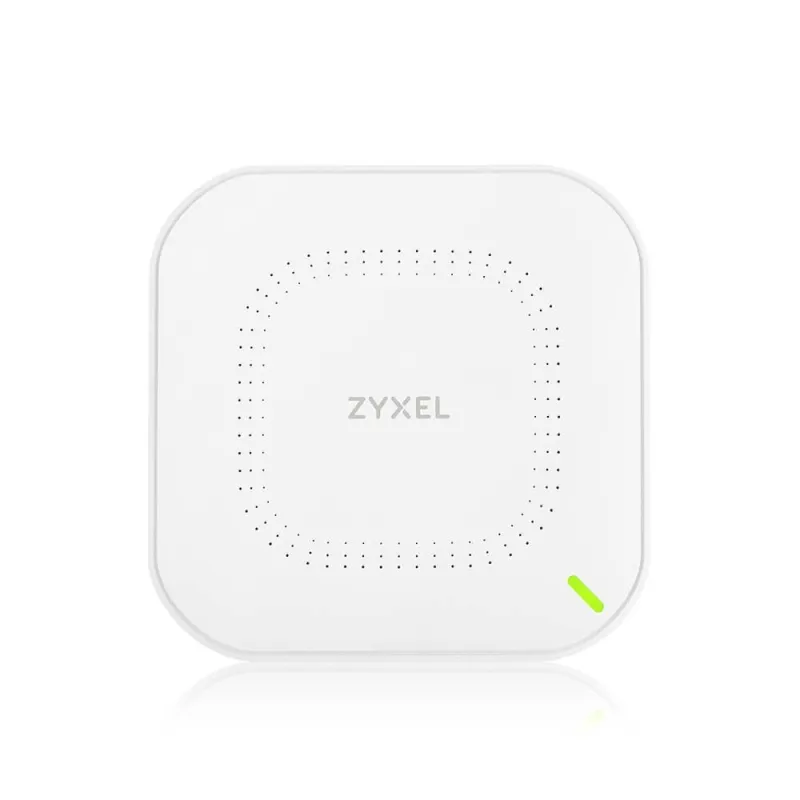

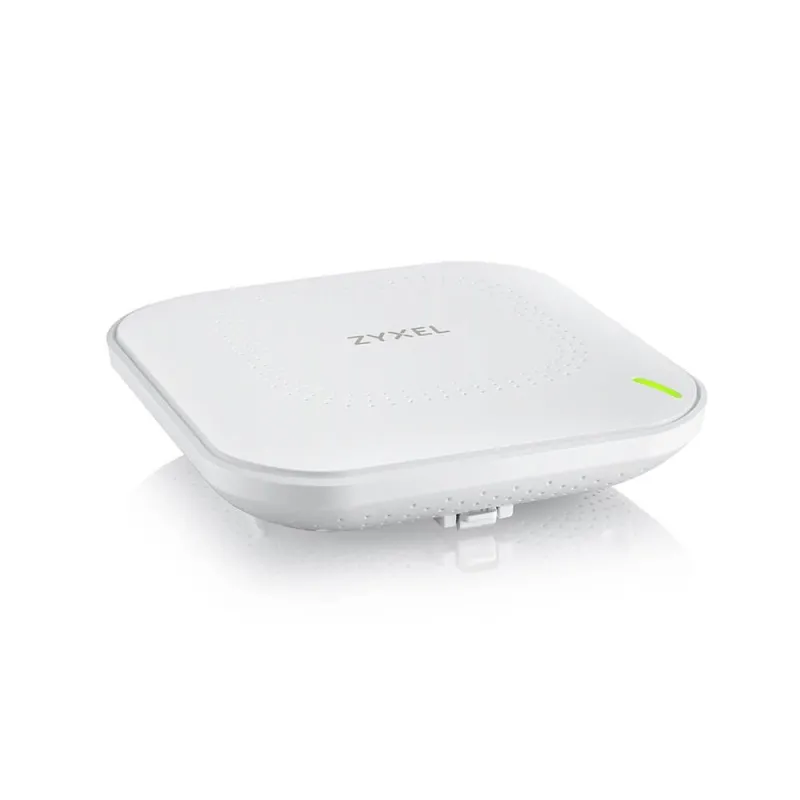

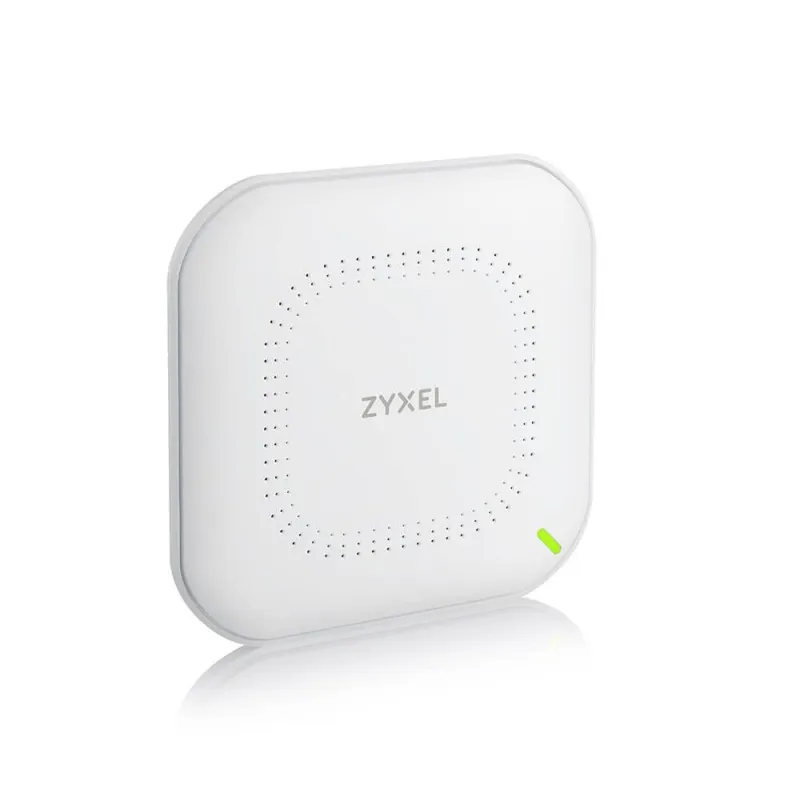

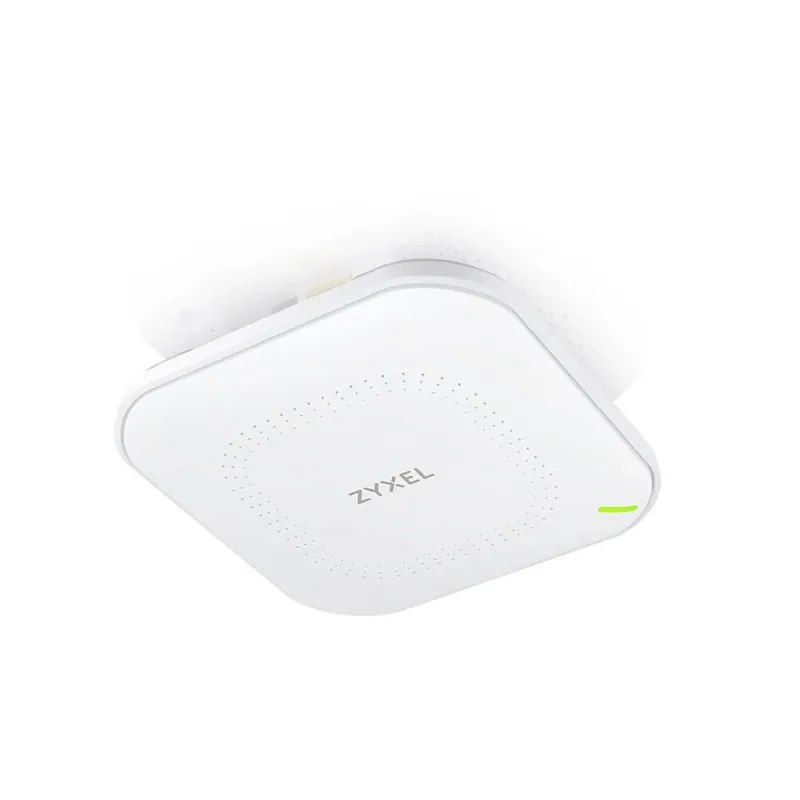

Zyxel NWA50AX 802.11ax (WiFi 6) 2x2 MIMO Dual-Radio Access Point, Port Lan Gigabit, รองรับการ Managed ทั้งแบบ Standalone และ NebulaFlex Cloud (Basic License) รองรับ PoE
Standard
IEEE 802.11 ax/ac/n/g/b/a
MIMO
MU-MIMO
Wireless speed
2.4GHz: 575 Mbps 5GHz: 1200 Mbps
Frequency band
2.4 GHz
USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz
5 GHz
USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz
Bandwidth
20-, 40-, 80-MHz
Conducted typical transmit output power
US (2.4GHz/5GHz): 23/26 dBm EU (2.4GHz/5GHz): 20/25 dBm
Antenna type
2x2 + 2x2 MIMO embedded antenna
Antenna gain
2.4GHz: 3 dBi 5GHz: 4 dBi
Minimum receive sensitivity
Min. Rx sensitivity up to -99 dBm
Band Steering
Yes
WDS / Mesh
Yes
Fast roaming
Yes
DCS
Yes
Load balancing
No
Encryption
WPA Personal WPA2 Personal WPA3 Personal
Authentication
No
Access management
MAC filtering Rogue AP detection
IPv6
Yes
VLANs
Yes
WMM
Yes
U-APSD
Yes
Operating mode
Nebula Cloud managed Standalone
ZON Utility
Discovery of Zyxel switches, APs and gateways Centralized and batch configurations IP configuration IP renew Device factory reset Device reboot Device locating Web GUI access Firmware upgrade Password configuration
Zyxel Wireless Optimizer
WiFi AP planning
Web UI/ CLI
Yes
SNMP
No
Item
Dimensions (WxDxH)(mm/in.) 140 x 140 x 37.5/5.51 x 5.51 x 1.48 Weight (g/lb.) 290/0.64
Packing
Dimensions (WxDxH)(mm/in.) 240 x 155 x 60/9.45 x 6.10 x 2.36 Weight (g/lb.) 600/1.32
Included accessories
Power adapter Mount plate Mounting screws
MTBF(hr)
1,010,980

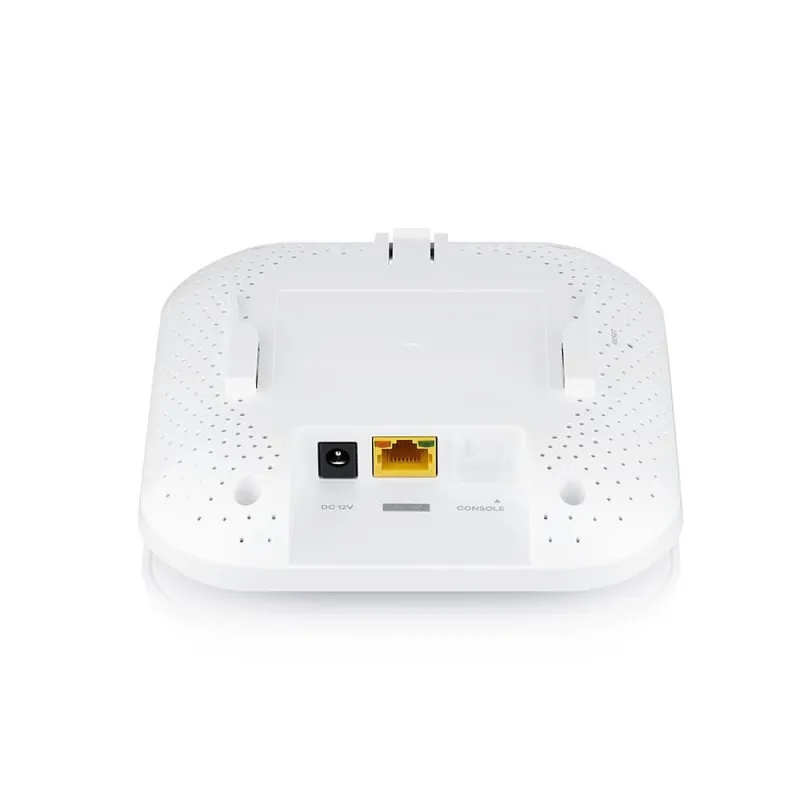

Ethernet port
1 x 10/100/1000M LAN
Power
Input: AC 100 - 240V - 50/60 Hz 0.3A; Output: DC +12V 1.5A PoE (802.3at): power draw 16 W
Operating
Temperature 0°C to 50°C/32°F to 122°F Humidity 10% to 90% (non-condensing)
Storage
Temperature -40°C to 70°C/-40°F to 158°F Humidity 10% to 90% (non-condensing)
Radio
FCC Part 15C FCC Part 15E ETSI EN 300 328 EN 301 893; LP0002 EN 60601-1-2
EMC
FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 BSMI CNS13438
