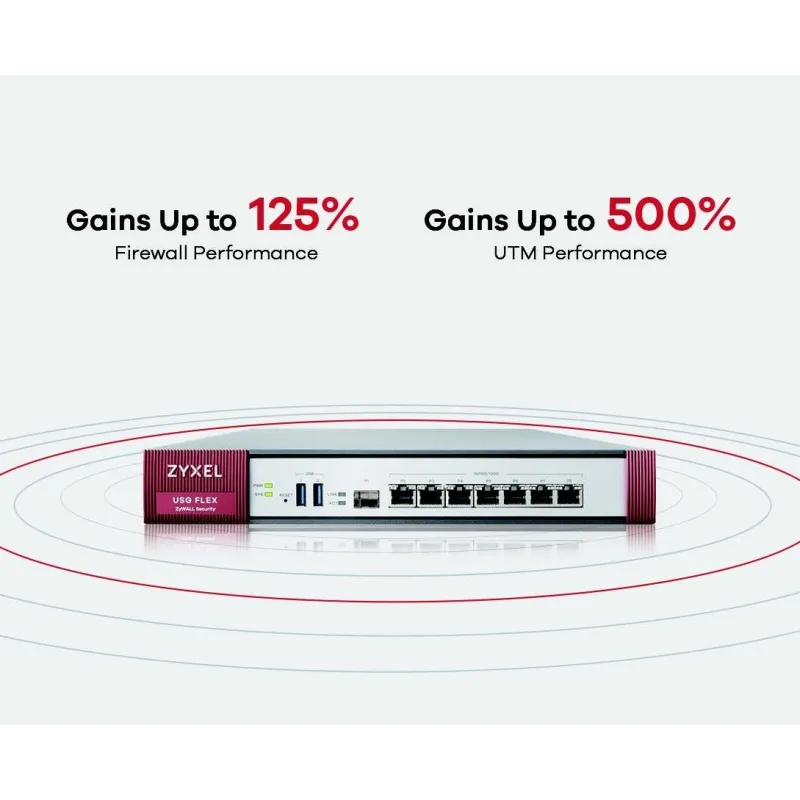

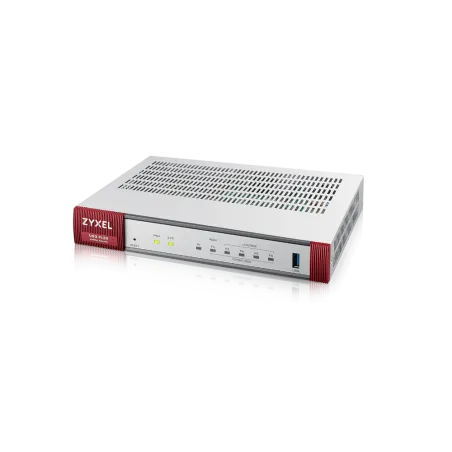

ZYXEL USG FLEX 100 Unified Security Gateway Firewall
ZYXEL USG FLEX 100 Unified Security Gateway รองรับการทำ Web Filtering, IPS (IDP), Application Patrol, Anti-Malware, Email Security, SecuReporter, SecuReporter Premium (Include 1 Year all Licensee)
สอบถามรายละเอียดสินค้าเพิ่มเติม LINE: @sysnet
Zyxel USG Flex Datasheet
Zyxel USG Flex Handbook
Zyxel USG Flex Quick Start Guide
Zyxel USG Flex User Guide'
ทดลองใช้งาน Zyxel USG Flex 100 Unified Security Gateway Firewall
ZYXEL USG FLEX 100 Product Specification |
|
Overview |

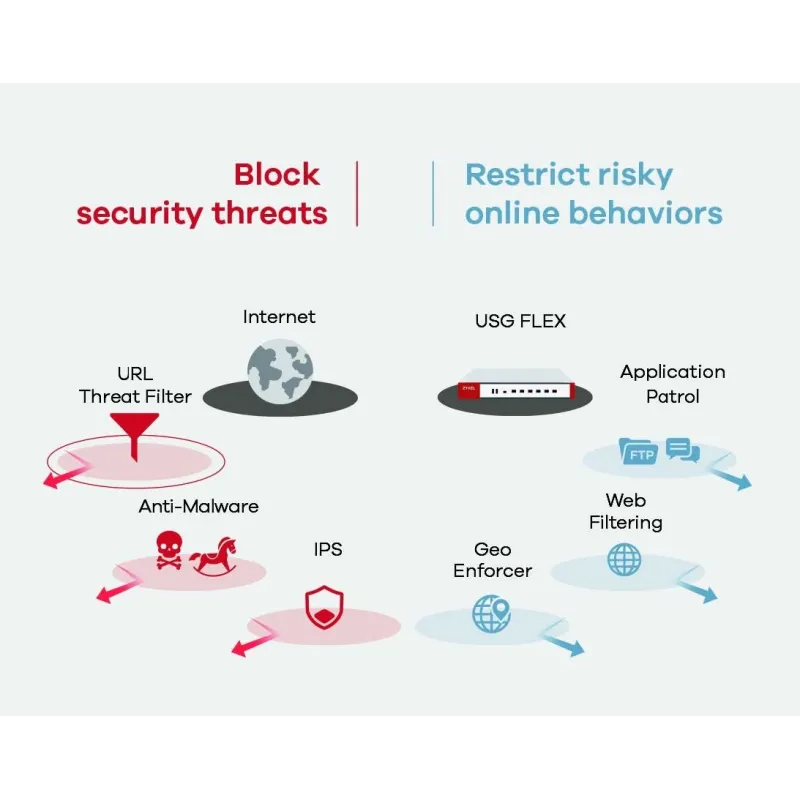

ZYXEL USG FLEX 100 Unified Security Gateway VPN รองรับการทำ Web Filtering, Geo Enforcer, IPS, Anti-malware, URL Threat Filtering (Include 1 Year all License and Service) Bundle ARS (NBD) พร้อม 9 x 6 Technical Support (ภาษาไทย) |
Bundle All License and Service |
|
Web Filtering |
Block access to malicious or risky web sites |
IPS(IDP) |
Deep-packet inspection against known attacks from Network |
Application Patrol |
Automatically categorize and manage the network application usage |
Anti-Malware |
Scan files at the gateway or Zyxel security cloud for malware and other threats |
Email Security |
Fast detection to block spam/phishing mail with malicious contents |
SecuReporter |
Cloud-based intelligent analytics and report |
Interface |
4 x LAN/DMZ, 1 x WAN, 1 x SFP |
USB 3.0 ports |
1 |
Console port |
Yes (RJ-45) |
Rack-mountable |
- |
Fanless |
Yes |
System Capacity & Performance |
|
SPI firewall throughput (Mbps) |
900 |
VPN throughput (Mbps) |
270 |
IDP throughput (Mbps) |
540 |
AV throughput (Mbps)* |
360 |
UTM throughput (AV and IDP)* |
360 |
Max. TCP concurrent sessions |
300,000 |
Max. concurrent IPsec VPN tunnels |
40 |
Concurrent SSL VPN users |
30 |
VLAN interface |
8 |
Concurrent devices logins (default/max.)* |
64 |
Speedtest Performance |
|
SPI firewall throughput (Mbps) |
760 |
WLAN Management |
|
Managed AP number (default/max.) |
8 / 24 |
Recommend max. AP in 1 AP Group |
10 |
Security & Service |
|
Anti-Malware*7 |
Yes |
IPS (IDP) |
Yes |
Application Patrol*7 |
Yes |
Email Security |
Yes |
Web filtering (CF)*7*9 |
Yes |
SecuReporter Premium*7 |
Yes |
Key Features |
|
VPN |
IKEv2, IPSec, SSL, L2TP/IPSec |
SSL (HTTPS) Inspection |
Yes |
2-Factor Authentication |
Yes |
Hotspot Management*7 |
- |
Ticket printer support*10 / |
- |
Microsoft Azure |
Yes |
Amazon VPC |
Yes |
Device HA Pro |
- |
Power Requirements |
|
Power input |
12V DC, 2A max. |
Max. power consumption (watt) |
12.5 |
Heat dissipation (BTU/hr) |
42.65 |
Physical Specifications |
|
Dimensions (WxDxH) (mm/in.) |
216 x 147.3 x 33/ 8.50 x 5.80 x 1.30 |
Weight (kg/lb.) |
0.85/1.87 |
Included accessories |
Power adapter |
Operating environment |
|
Temperature |
0°C to 40°C (32°F to 104°F) |
Humidity |
10% to 90% (non-condensing) |
Storage environment |
|
Temperature |
-30°C to 70°C (-22°F to 158°F) |
Humidity |
10% to 90% (non-condensing) |
MTBF (hr) |
989810.8 |
Certifications |
|
EMC |
FCC Part 15 (Class B), CE EMC (Class B),BSMI |
Safety |
LVD (EN60950-1), BSMI |
*: This matrix with firmware ZLD4.50 or later.
*1: Actual performance may vary depending on system configuration, network conditions, and activated applications.
*2: Maximum throughput based on RFC 2544 (1,518-byte UDP packets).
*3: VPN throughput measured based on RFC 2544 (1,424-byte UDP packets).
*4: AV (with Express Mode) and IDP throughput measured using the industry standard HTTP performance test (1,460-byte HTTP packets). Testing done with multiple flows.
*5: Maximum sessions measured using the industry standard IXIA IxLoad testing tool
*6: Including Gateway-to-Gateway and Client-to-Gateway.
*7: With Zyxel service license to enable or extend the feature capacity.
*8: This is the recommend maximum number of concurrent logged-in devices.
*9: SafeSearch function in CF need to enable SSL inspection firstly and not for small business models.
*10: With Hotspot Management license support
*11: The Speedtest result is conducted with 1Gbps WAN link in real world and it is subject to fluctuate due to quality of the ISP link.
