| Overview |

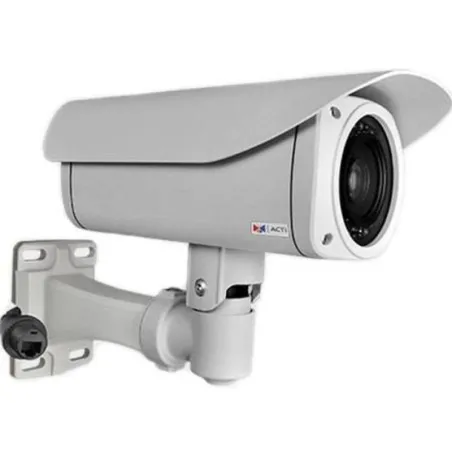

ACTi Bullet B45 กล้อง IP-Camera แบบภายนอกอาคาร ใช้ Censor CMOS ความละเอียด 2MP Mode Day/Night Adaptive IR 40 เมตร , Zoom 10x Optical รองรับ POE 802.3af
|
|
|
Zoom Bullet
|
|
|
2MP
|
|
|
Outdoor
|
|
|
Progressive Scan CMOS
|
|
|
1/2.8 "
|
|
|
1984(H) X 1225(V) (2.43 MP)
|
|
|
Yes
|
|
|
Superior
|
|
|
Color: 0.1 lux at F1.6 (30 IRE, 2400 K); B/W: 0 lux at F1.6 (IR LED on)
|
|
|
ISP based switch, configurable
|
|
|
Yes
|
|
|
700-1100nm
|
|
|
Adaptive IR LED
|
|
|
40m
|
|
|
1/5-1/2000sec (manual mode); 1/5-1/10000sec (auto mode)
|
Horizontal Resolution (TV Lines)
|
1450 TVL
|
|
|
52 dB
|
|
Lens
|
|
|
|
Zoom, f4.9-49mm
|
|
|
F1.6-F3.0
|
|
|
10x optical
|
|
|
2.5 sec (wide to tele)
|
|
|
Camera Installation, Auto Zoom by Event, Manual Operation
|
|
|
DC iris
|
|
|
Auto focus
|
|
|
Board mount
|
|
|
57.8° - 6.9°
|
|
|
33.8° - 4.0°
|
|
PTZ
|
|
Pan, Tilt or Zoom protocol
|
Visca, Pelco-D, Pelco-P
|
|
Video
|
|
|
|
H.264 (Baseline/ Main/ High profile), MJPEG
|
Maximum Frame Rate vs. Resolution
|
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240
|
|
|
Simultaneous dual streams based on two configurations
|
|
|
28Kbps - 6Mbps (per stream)
|
|
|
Constant, Variable
|
|
|
Basic WDR (75 dB)
|
|
|
White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless
|
|
|
DNR
|
|
|
4 configurable regions for each of 17 preset points
|
|
|
Yes
|
|
|
Object Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Line Crossing, Enter Area, Missing Object, Unattended Object, Smoke Detection, Heat Map, Dwell time, Direction Detection, License Plate Recognition, People Queue management, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
|
|
|
Flip, Mirror
|
|
Audio
|
|
|
|
2-way, Line-in, Line-out
|
|
|
8 kHz, 16 bit encoding, Mono, PCM, G.711
|
|
Network
|
|
Network Protocol & Service
|
IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
|
|
|
1 x RJ-45 connector
|
|
|
IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
|
|
Event
|
|
|
|
Video motion detection (3 regions), External device through digital input, Sound detection
|
|
|
Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output
|
|
Integration
|
|
|
|
Fully compatible with ACTi software
|
|
|
Yes
|
|
|
Manual setting
|
|
|
Yes, Profile S, Profile G
|
|
|
Yes
|
|
|
IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime
|
|
|
Yes
|
|
Interface
|
|
|
|
Terminal block
|
|
|
MicroSDHC, MicroSDXC memory card slot (card not included)
|
|
|
1/1
|
|
General
|
|
|
|
DC 12V (adapter not included), PoE Class 3 (IEEE802.3af)
|
|
|
12 W (PoE)
|
|
|
2360g (5.19lb)
|
|
|
(W x H x D): 122.4mm x 223.7mm x 317mm (4.82" x 8.81" x 12.48")
|
|
|
Weatherproof (IP67), Vandal proof metal casing (IK10)
|
|
|
Integrated bracket
|
|
|
Ceiling Bracket, Gang Box, Integrated Bracket, Pole Mount
|
|
|
Yes
|
|
|
-40°C ~ 50°C (-40°F ~ 122°F) within 30 minutes
|
|
|
-40°C ~ 50°C (-40°F ~ 122°F)
|
|
|
10% - 85% RH
|
|
|
3 Year(s)
|
|
|
CE, FCC, IP67, IK10 (metal casing), NEMA 4X, UL (for optional PoE injector and power adapter)
|
|
|
สินค้ารับประกัน 2 ปี
|
