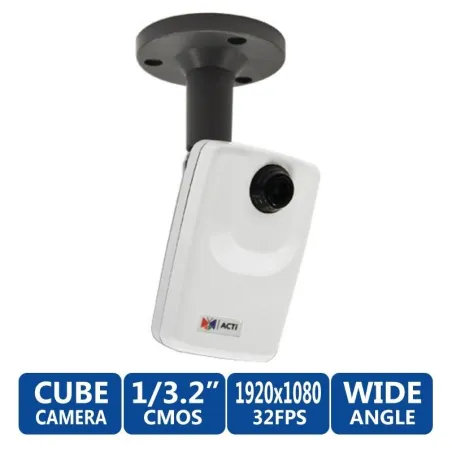

ACTi Cube D12 ความละเอียด 3 Megapixel 1080P HD IP Security Camera

Cube camera

Progressive Scan CMOS

1/3.2"

3 Mp

Indoor

Progressive scan CMOS

Color: 0.1 lux at F2.0 (30 IRE, 2400 °K)

1/5 to 1/2,000 sec (manual mode); 1/5 to 1/10,000 sec (auto mode)

Fixed focal lens, f3.6 mm/F2.0, fixed iris

Fixed iris

Fixed focus

Board mount

70.8°

H.264 high profile, MJPEG

15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 640 x 480

Simultaneous dual streaming based on two configurations

28 Kb/s to 6 Mb/s (per stream)

Constant, Variable

White balance: automatic, hold, and manual
Brightness
Contrast
Sharpness(auto)
Auto gain control
Digital noise reduction
Flickerless

4 configurable regions

User defined text on video

Image flip and mirror

TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, and Bonjour

1 x Ethernet (10/100 Base-T), RJ-45 connector

IP address filtering
HTTPs encryption; Password protected user levels
Anonymous login
IEEE802.1X network access control

Video motion detection (3 regions)

Notify control center, change camera settings; command other devices, Email notifications with snapshots, upload video, and snapshot to FTP server

Fully compatible with ACTi software

Software Development Kit (SDK) available, ONVIF compliant

Microsoft Internet Explorer 8.0 or newer (full functionality)
Other browsers with VLC installed (partial functionality)

PoE Class 2 (IEEE802.3af) / 3.7 W

Bracket

Wall, ceiling

14 to 113°F (-10 to 45°C)

10 to 85% RH

2.62 x 4.09 x 1.53" (66.54 x 103.88 x 38.86 mm)

0.31 lb (140.60 g)
