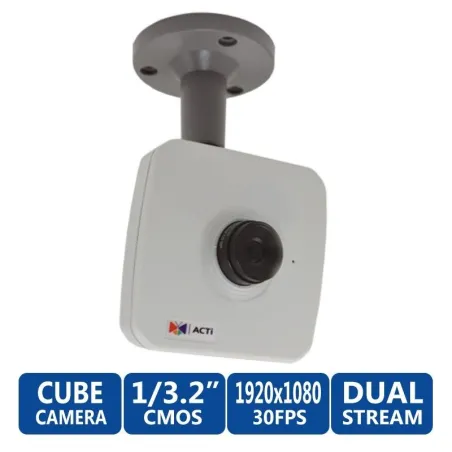

ACTi Cube E13 ความละเอียด 3MP 1080p/30fps Basic WDR, Fixed lens, f2.8mm/F2.0, H.264, DNR, Audio รองรับ PoE กล้องคุณภาพสูง
ACTi Live! Demo เข้ามาชมวามคมชัด และความสามารถในการบันทึกภาพในสภาวะแสง หลากหลายรุ่น
ใช้ Internet Explorer พิมพ์ URL มาที่
http://nvkvpn0.dyndns.org
UserName: guest / Password: guest123
ACTi Cube E13 Datasheet
งานตัวอย่างที่ใช้กล้อง ACTi IP-Camera
ACTi E13 WDR 5 Megapixel Full HD IP Security Camera
Device Type |
Cube Camera |
Image Sensor |
Progressive Scan CMOS |
Day/Night |
No |
Minimum Illumination |
Color: 0.1 lux at F2.0 (30 IRE, 2,400°K) |
Mechanical IR Cut Filter |
No |
IR Sensitivity Range |
No |
Electronic Shutter |
1/5 to 1/2,000 sec (Manual / Auto mode) |
Focal Length / Aperture |
Fixed focal, f 2.8 mm / F2.0 |
Iris |
Fixed iris |
Focus |
Manual focus |
Lens Mount |
CS-Mount (interchangeable lens) |
Horizontal Viewing Angle |
81.6° |
Compression |
H.264 HP and MJPEG |
Maximum Frame Rate vs. Resolution |
15 fps at 2592 x 1944; 15 fps at 2048 x 1536 |
Multi-Streaming |
Simultaneous dual steams based on 2 configurations |
Bit Rate |
28 Kbps to 6 Mbps (per stream) |
Bit Rate Mode |
Constant, Variable |
Image Enhancement |
Basic WDR; White balance: automatic, hold, and manual; Brightness; Contrast; Automatic gain control; Digital noise reduction; Flicker-less |
Privacy Mask Type |
4 configurable regions |
Text Overlay |
User-defined text on video |
Image Orientation |
Image flip and mirror |
Compression |
8kHz, Mono, PCM,16 bit encoding; G.711 |
Audio In |
Built-in Microphone |
Audio Out |
3.5 mm Phone Jack |
Protocol |
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS,DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
Ethernet Port |
1, Ethernet (10/100 Base-T), RJ-45 connector |
Security |
IP address filtering; HTTPS encryption; Password-protected user levels; IEEE 802.1X network access control |
Alarm Triggers |
Video motion detection (3 regions) |
Alarm Response |
Notify control center; Change camera settings; Command other devices; email notification with snapshots; upload video, snapshot to FTP server |
Power Source and Consumption |
PoE Class 2 (IEEE802.3af) / 3.67W |
Mount Type |
Wall, Ceiling |
Operating Temperature |
14 to 113°F (-10 to 45°C) |
Operating Humidity |
10 to 85% RH |
Approvals |
CE, FCC |
Unified Solution |
Fully compatible with ACTi software |
ISV Integration |
Software Development Kit (SDK) available; ONVIF compliant |
Firmware Access Browser |
Microsoft Internet Explorer 6.0 or newer |
Dimensions (W x H x D) |
3.8 x 3.8 x 1.8" (96 x 96 x 45.07 mm) |
Weight |
0.45 lb (0.20 kg) |
สินค้ารับประกัน 3 ปี
