ACTi Dome D51 ความละเอียด 1MP 720p/30fps Indoor Dome with Fixed lens, f3.6mm/F2.0, H.264, DNR, รองรับ PoE กล้องคุณภาพสูง ราคาประหยัด
ACTi Live! Demo เข้ามาชมวามคมชัด และความสามารถในการบันทึกภาพในสภาวะแสง หลากหลายรุ่น
ใช้ Internet Explorer พิมพ์ URL มาที่
http://nvkvpn0.dyndns.org
UserName: guest / Password: guest123
ACTi Dome D51 Datasheet
งานตัวอย่างที่ใช้กล้อง ACTi IP-Camera

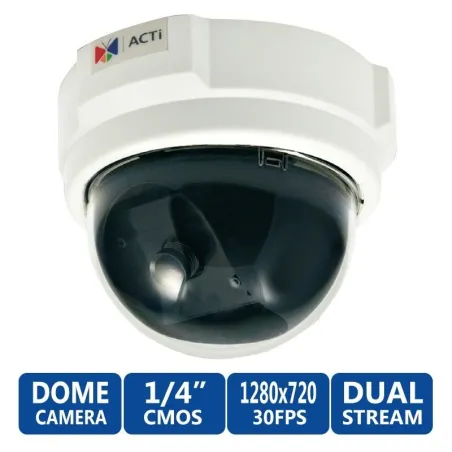

ACTi D51 1MP PoE Indoor Dome Camera with Fixed Lens
|
Device Type |
Fixed Indoor Dome Camera |
|
Image Sensor |
Progressive Scan CMOS |
|
Day/Night |
No |
|
Minimum Illumination |
Color: 0.1 lux at F2.0 (30 IRE, 2,400°K) |
|
Mechanical IR Cut Filter |
No |
|
IR Sensitivity Range |
No |
|
IR LED |
No |
|
Electronic Shutter |
1/5 to 1/2,000 sec (Manual / Auto mode) |
|
Focal Length / Aperture |
Fixed focal, f3.6 mm / F2.0 |
|
Iris |
Fixed iris |
|
Focus |
Fixed focus |
|
Lens Mount |
Board Mount |
|
Horizontal Viewing Angle |
61° |
|
Viewing Angle Adjustment |
Pan: 0 to 330°; Tilt: 0 to 180° |
|
Compression |
H.264 HP, MJPEG |
|
Maximum Frame Rate vs. Resolution |
30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA) |
|
Multi-Streaming |
Simultaneous dual steams based on 2 configurations |
|
Bit Rate |
28 Kbps to 6 Mbps (per stream) |
|
Bit Rate Mode |
Constant, Variable |
|
Image Enhancement |
Basic WDR; white balance: automatic, hold, and manual; Brightness; Contrast; Auto gain control; Digital noise reduction; Flicker-less |
|
Privacy Mask Type |
4 configurable regions |
|
Text Overlay |
User-defined text on video |
|
Image Orientation |
Image flip and mirror |
|
Protocol |
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
|
Ethernet Port |
1, Ethernet (10/100 Base-T), RJ-45 connector |
|
Security |
IP address filtering; HTTPS encryption; Password-protected user levels; IEEE 802.1X network access control |
|
Alarm Triggers |
Video motion detection (3 regions) |
|
Alarm Response |
Notify control Center; Change camera settings; Command other devices; email notification with snapshots; Upload video, snapshot to FTP server |
|
Power Source and Consumption |
PoE Class 2 (IEEE802.3af) / 3.79 W |
|
Mount Type |
Surface, Pendant, Wall, Corner, Pole, Flush |
|
Operating Temperature |
14 to 122°F (-10 to 50°C) |
|
Operating Humidity |
10 to 85% RH |
|
Approvals |
CE, FCC |
|
Unified Solution |
Fully compatible with ACTi software |
|
ISV Integration |
ISV Integration |
|
Firmware Access Browser |
Microsoft Internet Explorer 6.0 or newer |
|
Dimensions (Ø x H) |
5.12 x 3.90" (128 x 99 mm) |
|
Weight |
0.64 lb (0.29 kg) |
สินค้ารับประกัน 2 ปี
