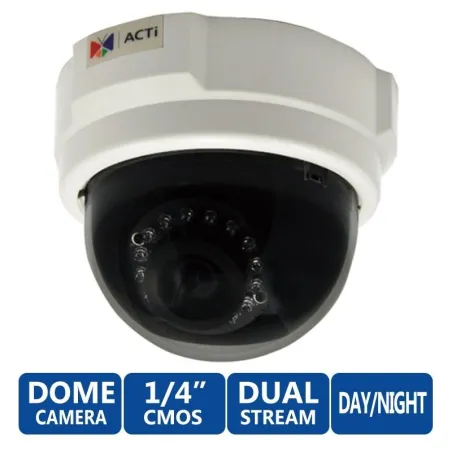

ACTi Dome E52 1MP Indoor Day/Night Adaptive IR Camera, Fixed Lens

Fixed Indoor Dome Camera

Progressive Scan CMOS

Yes

Color: 0.1 lux at F1.8 (30 IRE, 2400°K); B/W: 0 lux (IR LED on)

ISP based switch, configurable

Yes

700 to 1,100 nm

10x IR LED (850 nm)

49.2' (15 m) (0 lux, 30 IRE, maximum exposure gain)

1/5 to 1/2,000 sec (manual), 1/5 to 1/10,000 sec (auto mode)

Fixed focal, f3.6 mm / F1.8

Fixed iris

Fixed focus

Board Mount

60.2°

Pan: 0 to 330°; Tilt: 20 to 90°

H.264 HP, MJPEG

30 fps at 1280 x 720 (HD 720p); 30 fps at 640 x 480 (VGA)

Simultaneous dual steams based on 2 configurations

28 Kbps to 6 Mbps (per stream)

Constant, Variable

Basic WDR; white balance: automatic, hold, and manual;Brightness; Contrast; Auto gain control; Digital noise reduction; Flicker-less

4 configurable regions

User-defined text on video

Image flip and mirror

TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour

1, Ethernet (10/100 Base-T), RJ-45 connector

IP address filtering; HTTPS encryption; Password-protected user levels; IEEE 802.1X network access control

Video motion detection (3 regions)

Notify control Center; Change camera settings; Command other devices; Email notification with snapshots; Upload video, snapshot to FTP server

PoE Class 2 (IEEE802.3af) / 4.26 W (IR On)

Surface, Pendant, Wall, Corner, Pole, Flush

14 to 122°F (-10 to 50°C)

10 to 85% RH

CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)

Fully compatible with ACTi software

Software Development Kit (SDK) available; ONVIF compliant

Microsoft Internet Explorer 8.0 or newer (full functionality)
Other browsers with VLC installed (partial functionality)

5.12 x 3.90" (128 x 99 mm)

0.64 lb (0.29 kg)
