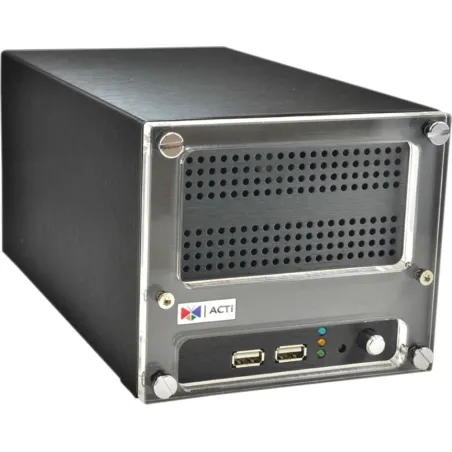

ACTi ENR-120 Desktop Standalone Network Video Recorder (NVR) 9-Channel 2 Bay (No HDD)
General
Maximum Number of Clients
1 local, 2 remote
Maximum Number of Cameras
9
Video Compression Format
H.264
Audio Compression Format
PCM, G.711 a-law/u-law (Only supports local recording and remote live view/playback, does not support local live view/playback)
Maximum Display Resolution
Up to 4 MP (local display), Up to 10 MP (remote display)

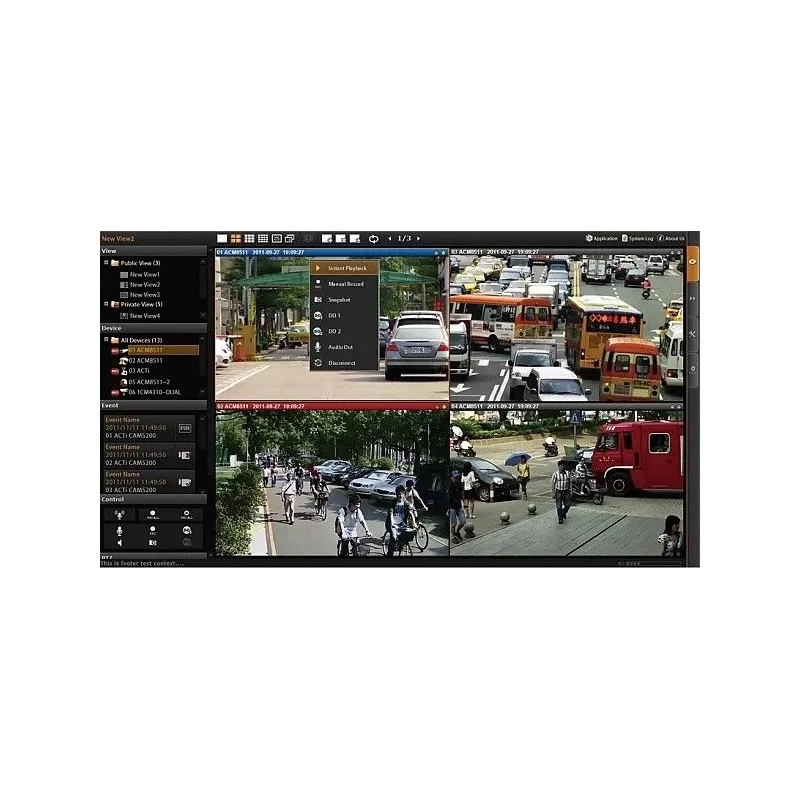

Live View
Display Layout Mode
1, 2, 4, 6, 8, 9
Layout Tour
Automatic switch between different display layouts
Digital Zoom
Via mouse
Event logging
Display status for network/record/motion/DI/video loss upon every video region
Dual Streaming
Live view of stream 1 or stream 2 of dual stream devices
PTZ
Control
Pan, tilt, and zoom controls; speed control
Preset Points and Tours
Go/set preset points
Number of Preset Points
32
Joystick
USB based joystick supported
Default Protocol
URL command
Recording
Scheduled Recording
Record video with user defined schedule
Event Recording
Event Recording: Record video when the alarm event is triggered, including the pre-event buffered video clip Event Speed-up Recording: Record I frame only in normal status, and record full frames when the alarm event is triggered Event Speed-Up Recording: Record 1 frame only in normal status, and record full frames when the alarm event is triggered
Manual Recording
Instant recording upon mouse click
Recording Frame Rate
Maximum 480 fps total, maximum 30 fps per camera
Maximum Recording Throughput
48 Mb/s
Dual Streaming
Recording of stream 1 or stream 2 of dual stream devices
Storage
Interface
Serial ATA
Hard Drive Capacity
2 x 4 TB (HDDs available separately)
Storage Capacity
8 TB (HDDs available separately)
Search & Playback
Video Search
Time Based: Search video recordings by time, channel, or bookmark Event Based: Search event triggered video recordings, event response video loss
Playback Control
Forward and backward playback with speeds 1/2x-1x-32x; pause; stop
Synchronized Playback
9 channels
Snapshot
Create snapshot from playback for export
Cropping
Crop a short video clip from long recording file and save it as an independent file Video Clip Length: 1-30 minutes
Video Export
Export video clips in AVI/RAW format
Event Management
Event Trigger

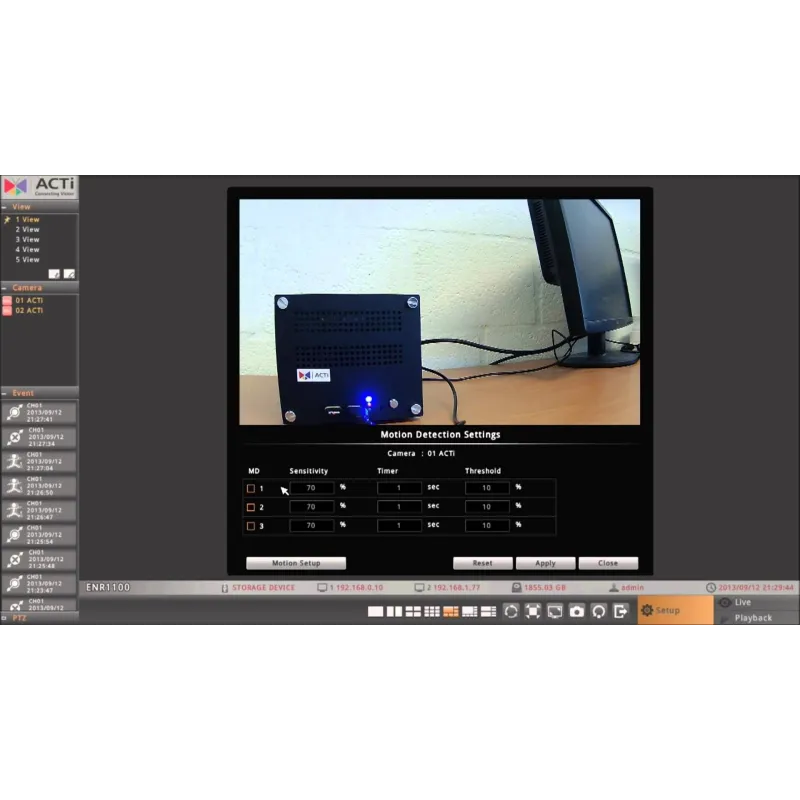

Video motion detection; External device through digital input; Network loss and recovery
Event Response
Record video; Play alert beep; Activate external device through digital output; email notification with snapshots; Enlarge; video loss; Go to PTZ preset point
Mobile device application (ACTi Mobile Client) supports live view, PTZ control, event or time based search and playback Supported Devices: iPhone, iPad, iTouch, and Android
Integration
Unified Solution
Fully compatible with ACTi camera with H.264 compression
