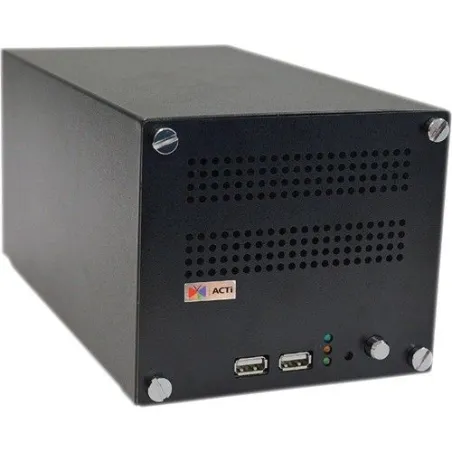

ACTi ENR-130 Network Video Recorder (NVR) 16CH. 2Bay รองรับ Throughput 48 Mbps

1 local, 2 remote

16

H.264

PCM, G.711 a-law/u-law (Only supports local recording and remote live view/playback, does not support local live view/playback)

1920 x 1080

1, 2, 4, 6, 8, 9, 10, 12, 13, 16

Automatic switch between different display layouts

Zoom in digitally by mouse

Display status for network/record/motion/DI/video loss upon every video region

Pan, tilt, and zoom controls; speed control

Go/set preset points

32

USB based joystick supported

URL command

Record video with user defined schedule

Record video when the alarm event is triggered, including the pre-event buffered video clip

Record I frame only in normal status, and record full frames when the alarm event is triggered

Instant recording upon mouse click

Maximum 480 fps in total; Maximum 30 fps per camera

48 Mb/s

Serial ATA

2 x 4 TB supported (4 TB storage included)

Maximum 2 disks

2 x USB 2.0 (USB 1.1 not supported)

LAN1: 1000Base-T ; LAN2: 10/100Base-T (WAN port)

HDMI

Time Based Video Search: Search video recordings by time, channel, or bookmark
Event Based Video Search: Search event triggered video recordings, event response video loss

Forward and backward playback with speeds 1/2x-1x-32x; pause; stop

16 channels

Create snapshot from playback for export

Crop a short video clip from long recording file and save it as an independent file; video clip length: 1 to 30 min

Export video clips in AVI/RAW format via USB storage

Video motion detection; External device through digital input; Network loss and recovery

Record video; Play alert beep; Activate external device through digital output; E-mail notification with snapshots; Enlarge; Video loss; Go to PTZ preset point

FW Upgrade via USB storage

Configuration backup/restore via USB storage

Multi-group/users, liveview/playback/setup/remote level permission

Embedded Linux

Real-time status reports on remote browser

Multi-language support

Intel Core 2 Quad 2.66 GHz

4 GB

Ethernet (1000 Base-T recommended)

Windows 7 and Windows 8 (All versions)

1080p

Internet Explorer 9.0 or 10.0

Mobile device application (Mobile client!) supporting live view, NVR layouts, PTZ control, event or time based search and playback
Supported devices: iPhone, iPad, iPod; Android devices (Live view)

12 VDC

22 W

CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); Adapter: CE, FCC, UL, PSE, Efficiency Level V

Fully compatible with ACTi cameras, encoders and CMS V2.0

32 to 104°F (0 to 40°C)

10 to 85% RH

5.3 x 4.8 x 9.9" (135.0 x 121.0 x 251.0 mm)

2.91 lb (1.32 kg)
