Display Layout Mode
|
1, 2, 4, 6, 8, 9, 10, 12, 13, 16
|
|
Layout Tour
|
Automatic switch between different display layouts
|
|
Digital Zoom
|
Zoom in digitally by mouse
|
|

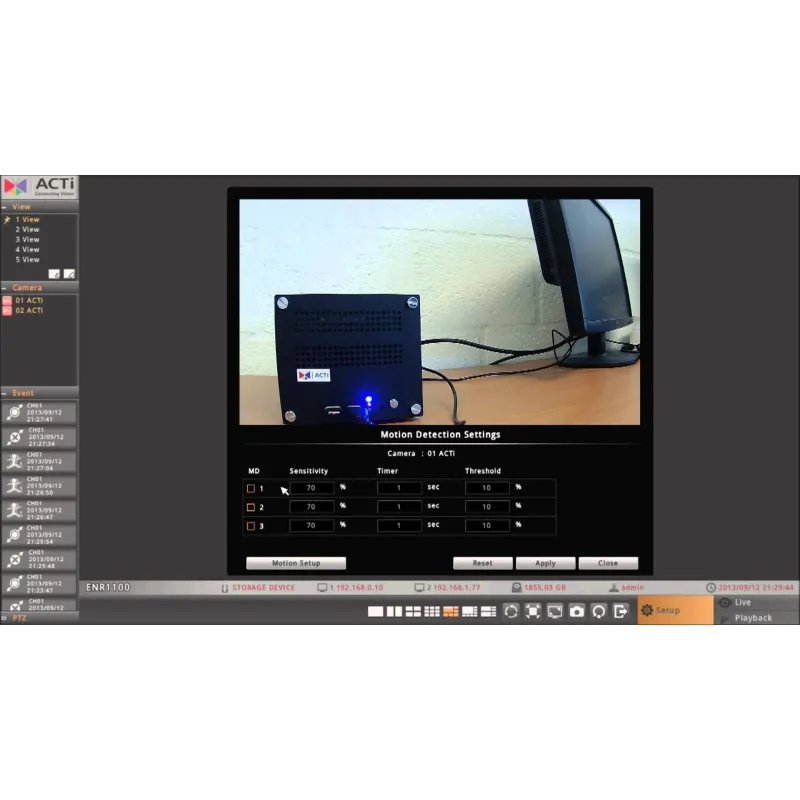

Event
|
Display status for network/record/motion/DI/video loss upon every video region
|
|
Control
|
Pan, tilt, and zoom controls; speed control
|
|
Preset Points and Tours
|
Go/set preset points
|
|
Number of Preset Points
|
32
|
|
Joystick
|
USB based joystick supported
|
|
Default Protocol
|
URL command
|
|
Scheduled Recording
|
Record video with user defined schedule
|
|
Event Recording
|
Record video when the alarm event is triggered, including the pre-event buffered video clip
|
|
Triggers & Events
|
Record I frame only in normal status, and record full frames when the alarm event is triggered
|
|
Manual Recording
|
Instant recording upon mouse click
|
|
Recording Frame Rate
|
Maximum 480 fps in total; Maximum 30 fps per camera
|
|
Maximum Recording Throughput
|
48 Mb/s
|
|
Interface
|
Serial ATA
|
|
HDD
|
4 x 4 TB supported
|
|
HDD Bay
|
Maximum 4 disks 1
|
|
USB
|
2 x USB 2.0 (USB 1.1 not supported)
|
|
Ethernet Port
|
LAN1: 1000Base-T ; LAN2: 10/100Base-T (WAN port)
|
|
Port
|
HDMI
|
|
Video Search
|
Time Based Video Search: Search video recordings by time, channel, or bookmark
Event Based Video Search: Search event triggered video recordings, event response video loss
|
|
Playback Control
|
Forward and backward playback with speeds 1/2x-1x-32x; pause; stop
|
|
Synchronized Playback
|
16 channels
|
|
Snapshot
|
Create snapshot from playback for export
|
|
Cropping
|
Crop a short video clip from long recording file and save it as an independent file; video clip length: 1 to 30 min
|
|
Video Export
|
Export video clips in AVI/RAW format via USB storage
|
|
Event Trigger
|
Video motion detection; External device through digital input; Network loss and recovery
|
|
Event Response
|
Record video; Play alert beep; Activate external device through digital output; E-mail notification with snapshots; Enlarge; video loss; Pop-up instant playback
|
|
Upgrades
|
FW Upgrade via USB storage
|
|
Configuration
|
Configuration backup/restore via USB storage
|
|
Permission Control
|
Multi-group/users, liveview/playback/setup/remote level permission
|
|
Operating System
|
Embedded Linux
|
|
System Status Monitor
|
Real-time status reports on remote browser
|
|
Language
|
Multi-language support
|
|
CPU
|
Intel Core 2 Quad 2.66 GHz
|
|
RAM
|
4 GB
|
|
Network
|
Ethernet (1000 Base-T recommended)
|
|
Operating System
|
Windows 7 and Windows 8 (All versions)
|
|
Display Resolution
|
1080p
|
|
Browser
|
Internet Explorer 9.0 or 10.0
|
|
Mobile Client Program
|
Mobile device application (Mobile client!) supporting live view, NVR layouts, PTZ control, event or time based search and playback
Supported devices: iPhone, iPad, iPod; Android devices (Live view)
|
|
Power Source
|
100-240 VAC 50/60 Hz
|
|
Power Consumption
|
40 W
|
|
Approvals
|
CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B); Adapter: CE, FCC, UL, PSE, Efficiency Level V
|
|
Unified Solution
|
Fully compatible with ACTi cameras, encoders and CMS V2.0
|
|
Operating Temperature
|
32 to 104°F (0 to 40°C)
|
|
Operating Humidity
|
10 to 85% RH
|
|
Dimensions (W x H x D)
|
12.9 x 8.0 x 8.4" (328.0 x 204.0 x 214.0 mm)
|
|
Weight
|
11.72 lb (5.32 kg)
|
