ACTi Bullet E37 10MP 1080p/30fps Day/Night, Adaptive IR, Basic WDR, Fixed lens, f3.6mm/F1.85, H.264, DNR, MicroSD, PoE, IP66, IK10 (metal casing)
ACTi Live! Demo เข้ามาชมวามคมชัด และความสามารถในการบันทึกภาพในสภาวะแสง หลากหลายรุ่น
ใช้ Internet Explorer พิมพ์ URL มาที่
http://nvkvpn0.dyndns.org
UserName: guest / Password: guest123
ACTi Bullet D37 Datasheet
งานตัวอย่างที่ใช้กล้อง ACTi IP-Camera

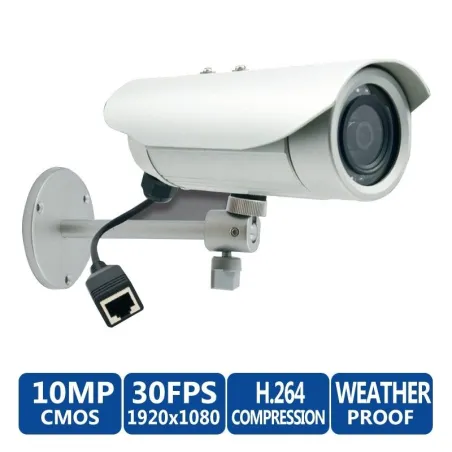

ACTi Bullet E37 10MP Day/Night IP Weatherproof & Vandal-Proof with Adaptive IR LEDs & 3.6mm Fixed Lens
|
Device Type |
Bullet Camera |
|
Image Sensor |
1/2.3" Progressive Scan CMOS |
|
Minimum Illumination |
Color: 0.1 lux at F1.85 (30 IRE, 2400 K); B/W: 0 lux (IR LED on) |
|
Color to B/W switch |
ISP-based switch, configurable |
|
IR Sensitivity Range |
700 to 1100 nm |
|
IR LED |
20 (850 nm) |
|
IR Working Distance |
49.2' (15.0 m) (0 lux, 30 IRE, Gain 255, Auto shutter mode) |
|
Electronic Shutter |
Manual Mode: 1/5 to 1/2,000 sec |
|
Focal Length / Aperture |
Fixed focal, f3.6 mm / F1.85 |
|
Iris |
Fixed |
|
Focus |
Fixed |
|
Lens Mount |
Board mount |
|
Horizontal Viewing Angle |
101.4° |
|
Compression |
H.264 High Profile, MJPEG |
|
Maximum Frame Rate vs. Resolution |
6 fps at 3648 x 2736, 2592 x 1944, 2048 x 1536 |
|
Multi-Streaming |
Simultaneous dual steams based on 2 configurations |
|
Bit Rate |
28 kb/s to 6 Mb/s (per stream) |
|
Bit Rate Mode |
Constant, variable |
|
WDR Technology |
Basic WDR: 65.2 dB |
|
Image Enhancement |
Basic WDR |
|
Privacy Mask Type |
4 configurable regions |
|
Text Overlay |
User-defined text on video |
|
Image Orientation |
Image flip and mirror |
|
Protocol |
TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour |
|
Ethernet Port |
1 x Ethernet (10/100 Base-T), RJ-45 connector |
|
Security |
IP address filtering; HTTPS encryption; password-protected user levels; Anonymous login; IEEE 802.1X network access control |
|
Alarm Triggers |
Video motion detection (3 regions) |
|
Alarm Response |
Notify control center; change camera settings; command other devices; send email notifications with snapshots; Save video, upload videos, & snapshots to FTP server |
|
Local Storage |
microSDHC/SDXC memory card slot (card not included) 1 |
|
Unified Solution |
Fully compatible with ACTi software |
|
ISV Integration |
Software Development Kit (SDK) available (sold separately), ONVIF compliant |
|
Firmware Access Browser |
Microsoft Internet Explorer 8.0 or newer versions (full functionality) and other browsers with VLC installed (partial functionality) |
|
Power Source |
PoE Class 2 (IEEE802.3af) |
|
Power Consumption |
4.8 W (IR on) |
|
Environmental Casing |
Metal casing; weatherproof (IP66 rated) and vandal-proof (IK10 rated) |
|
Mount Type |
Supports wall, ceiling, corner, and pole mounting 2 |
|
Starting Temperature |
-4 to 122°F (-20 to 50°C) |
|
Operating Temperature |
-40 to 122°F (-40 to 50°C) |
|
Operating Humidity |
10 to 85% RH |
|
Approvals |
CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), IP66, NEMA 4X, IK10 (metal casing) |
|
Dimensions (Ø x L) |
3.03 x 7.48" (77.00 x 190.00 mm) |
|
Weight |
1.872 Ib (0.849 kg) |
สินค้ารับประกัน 3 ปี
