Product Specification

Overview

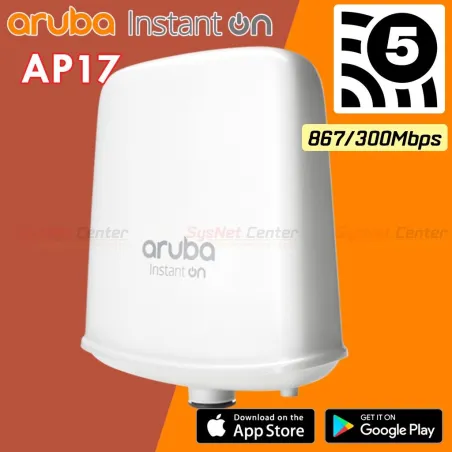

Aruba Instant On AP17 (RW) 2x2:2 11ac Wave2 Outdoor Access Point ความเร็วสูงสุด 1,167Mbps (867Mbps@5GHz/ 300Mbps@2.4GHz) รองรับ Smart Mesh, Manage ด้วย Instant On Mobile App และ Cloud-based Web Portal (Free) กันนำ้ กันฝุ่น มาตรฐาน IP55

Smart Mesh technology
802.11ac Wave 2, 2X2:2 MU-MIMO technology
Remote management and monitoring capability
Separate guest and employee Wi-Fi networks
Mobile app in multiple languages and cloud portal
Easy client/device blocking
Built-in DHCP/NAT support
App bandwidth limiting per network/user session

RADIOS

Dual Radio for simultaneous dual-band operation
5 GHz 802.11ac 2x2 MIMO for up to 867 Mbps wireless data rate, with Multi User MIMO support (Wi-Fi 5)
2.4 GHz 802.11n 2x2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)

INTERFACES

10/100/1000 BASE-T Ethernet (RJ45)
Bluetooth Low Energy (BLE) radio
LED status indicator
Reset button

PHYSICAL SPECIFICATIONS

156mm x 67mm x 187mm, excluding mount accessories
Weight: 650g

POWER

Power over Ethernet (PoE): 802.3af power
consumption 13.5W max (Not Include)

ANTENNAS

Two dual-band omni- directional antennas (4.7 dBi gain at 2.4 GHz, 4.2 dBi gain at 5 GHz)

MOUNTING

The access point ships with a mount bracket, can be mounted on the wall or a pole

COMPLIANCE AND SAFETY

IEC 60950/62368 CB
UL2043 for air-handling space (plenum rating)

ENVIRONMENTAL & RELIABILITY

IP55 Enclosure
Operating Temperature: -40° C to +50° C (-40° F to +122° F)
MTBF: 300khrs (34yrs) at +25° C

INDUSTRY CERTIFICATIONS

WPA2, WPA3
Wi-Fi Alliance certified (WFA) 802.11ac Wave 2 (Wi-Fi5)

MANAGEMENT OPTIONS

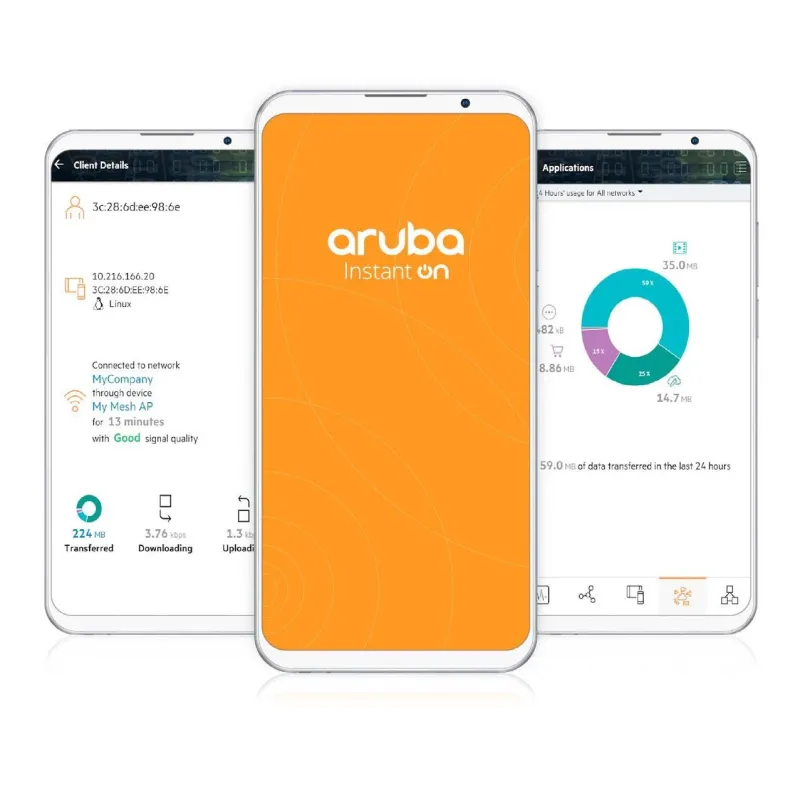

Instant On mobile application (Android & iOS)
Cloud Portal: Portal.ArubaInstantOn.com

IN THE BOX

Aruba Instant On AP17 Access Point
Aruba Instant On AP17 Quick Start Guide
Cable gland
Wall mount bracket (solid surface)
M4X6 screw
M6X45 screw
Copper lug

Warranty

1 ปี
