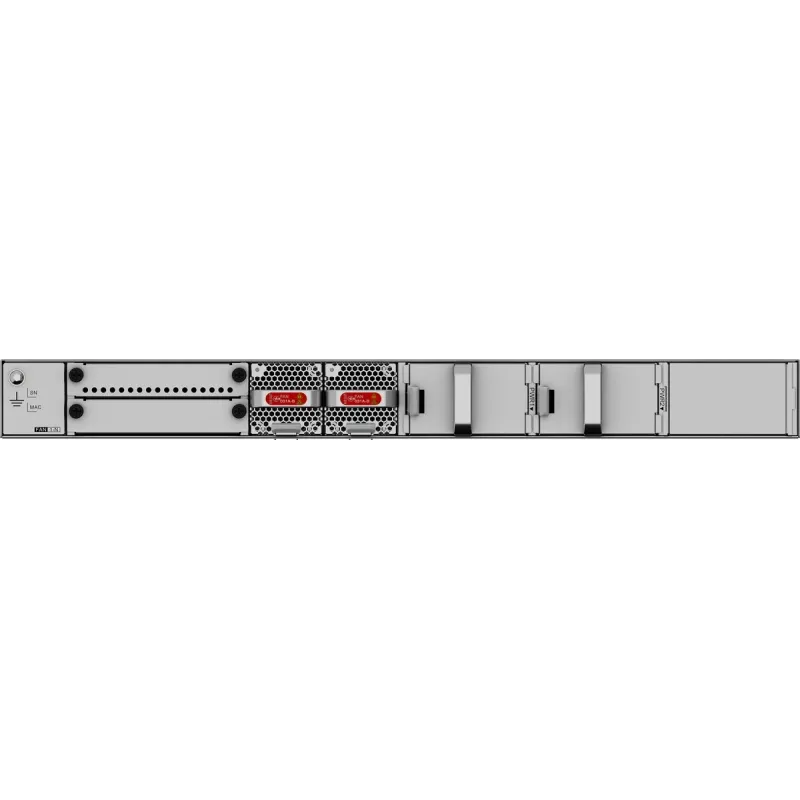

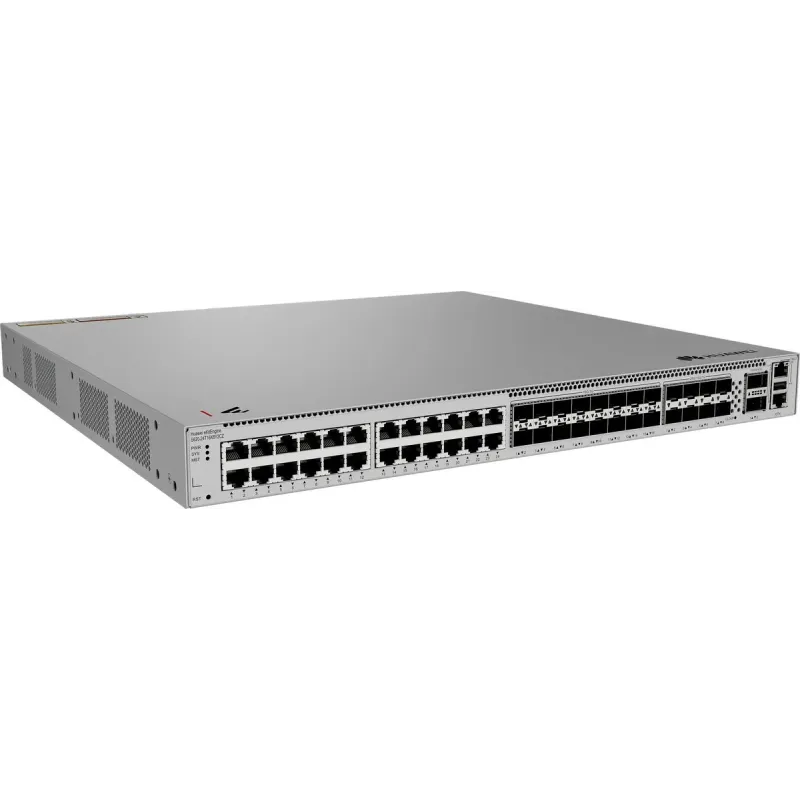

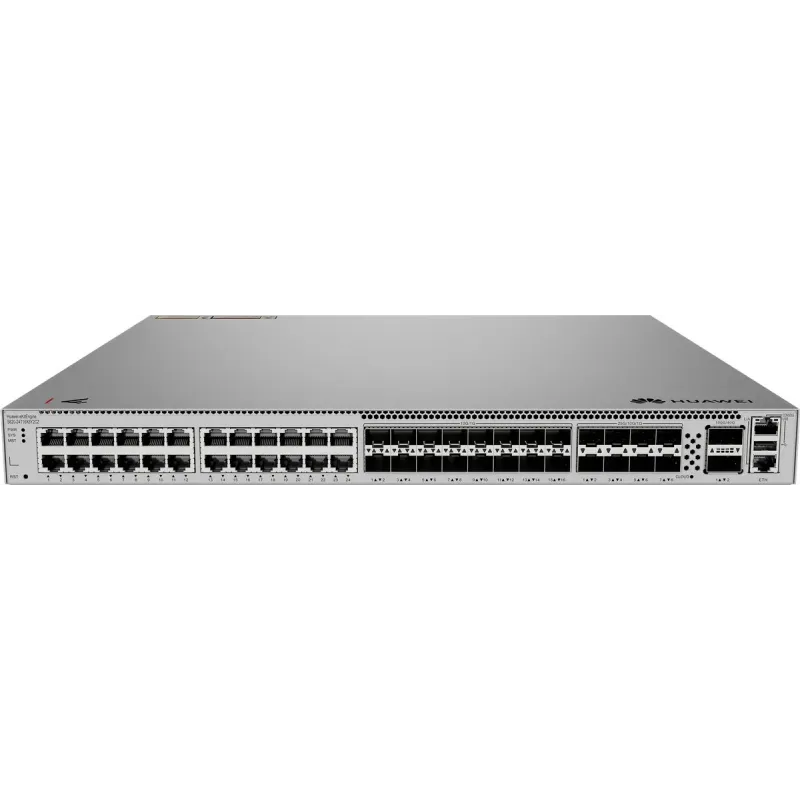

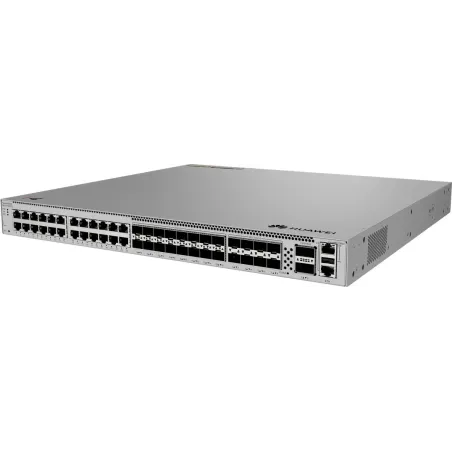

S620-24T16X8Y2CZ Huawei eKit L3 Managed Switch 24 Port Gigabit,16SFP+

S620-24T16X8Y2CZ Huawei eKit Product Specification

Product Overview

Huawei eKit S620-24T16X8Y2CZ L3-Managed Switch 24 Port Gigabit, 16 SFP+ 10Gbps, 2 Port QSFP28 40GE/100GE รองรับ Stacking, Static/Dynamic Routing OSPF,BGP, VLAN, PBR, IGMP, 802.1x

รองรับการ Managed ผ่าน Cloud, Standalone

Technical specifications

Switching capacity

1168 Gbps

Packet forwarding rate

867 Mpps

Downlink port

24 x 10/100/1000M BASE-T ports
16 x FE/GE/2.5GE/10GE SFP+ ports
8 x GE/2.5GE/10GE/25GE SFP28 ports
2 x 40GE/100GE QSFP28

Dimensions (H x W x D)

43.6 mm x 442.0 mm x 420.0 mm

Chassis height

1 U

Weight in full configuration
(including packaging materials)

6.31kg

Power module type

180 W AC power module (subcard not supported)
240 W DC power module
400 W DC power module
600 W AC power module (delivered with the product)

Typical power consumption

122W

Maximum power consumption

127W

Noise

41.2 dBA

Long-term operating temperature

–5°C to +45°C (23°F to 113°F)

Storage temperature

–40°C to +70°C (–40°F to +158°F)

Relative humidity

5% to 95% (non-condensing)

Power port surge protection

AC power port: ±6 kV in differential mode, ±6 kV in common mode
DC power port: ±2 kV in differential mode, ±4 kV in common mode

Heat dissipation mode

Air cooling, intelligent fan speed adjustment

Service Feature

User management

Unified user management
802.1X and MAC address authentication
Traffic- and duration-based accounting
User authorization based on user groups, domains, and time ranges

MAC address entry

Automatic MAC address learning and aging
Up to 64K MAC address entries
Static, dynamic, and blackhole MAC address entries
Source MAC address filtering
MAC address learning limiting based on ports and VLANs

VLAN

4K VLANs
Access, trunk, and hybrid ports
Default VLAN
QinQ and enhanced selective QinQ
VLAN stacking
MAC address–based dynamic VLAN allocation

ARP

ARP snooping

IP routing

IPv4 dynamic routing protocols such as RIP, OSPF, IS-IS, and BGP
IPv6 dynamic routing protocols such as RIPng, OSPFv3, IS-ISv6, and BGP4+

IPv6 features

ND (Neighbor Discovery)
Path MTU (PMTU)
IPv6 ping, IPv6 tracert, and IPv6 Telnet

Multicast

IGMPv1/v2/v3 and IGMPv1/v2/v3 snooping
PIM DM, PIM SM, and PIM SSM
Fast leave mechanism for users
Multicast traffic control
Multicast querier
Multicast protocol packet suppression

QoS

Traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
Actions such as ACL, CAR, re-marking, and scheduling
Queue scheduling modes such as PQ, DRR, and PQ+DRR
Congestion avoidance mechanisms such as WRED and tail drop
Traffic shaping
Network slicing

Native-IP IFIT

Direct marking of service packets to obtain real-time statistics about dropped packets and packet loss rate
Two-way latency measurement for packets
Statistical interval modification

Ring network protection

STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
BPDU protection, root protection, and loop prevention
G.8032 Ethernet Ring Protection Switching (ERPS)

Reliability

M-LAG
Stacking
LACP and inter-device aggregation
Virtual Router Redundancy Protocol (VRRP) and Bidirectional Forwarding Detection (BFD) for VRRP
BFD for BGP, IS-IS, OSPF, and static routing
Ethernet OAM (IEEE 802.1ag)
Smart Link

System management

Terminal access services such as console port login, Telnet, and SSH
Network management protocols, such as SNMPv1/v2/v3
File upload and download through FTP, TFTP, and SFTP
Boot Read-Only Memory (BootROM) upgrade and remote online upgrade
Hot patching
User operation logs
Open Programmability System (OPS)
Streaming Telemetry

Security and management

Network Access Control (NAC)
RADIUS and HWTACACS authentication for user login
MAC security (MACsec)
Command line authority control based on user levels, preventing unauthorized users from using commands
Defense against DoS attacks, TCP SYN flood attacks, UDP flood attacks, broadcast storms, and heavy-traffic attacks
IPv6 RA Guard
CPU hardware queues to implement hierarchical scheduling and protection for protocol packets on the control plane
Remote Network Monitoring (RMON)

รับประกัน

3 ปี
