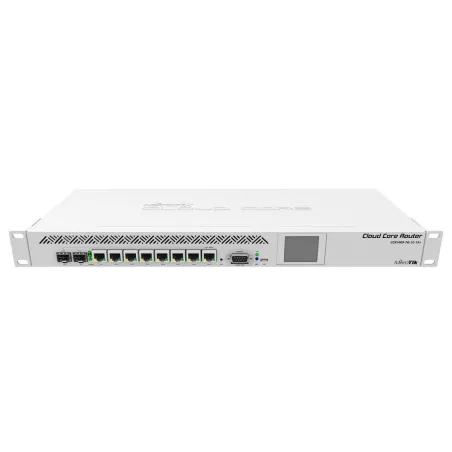

Mikrotik CCR1009-7G-1C-1S+ Cloud Core Router CPU 9-Core 1.2GHz Ram 2GB, 7 Port Giagbit 1 Port SFP+ ROS LV.6

Product Specification

Overview

Mikrotik Cloud Core Router  CCR1009-7G-1C-1S+ อุปกรณ์ Router ระดับ Top สำหรับทำระบบ Firewall, Bandwidth Management, Web Proxy, Dynamic Routing Protocol (RIP, OSPF, BGP), Secure Tunnel (EoIP, PPPoE, PPTP, L2TP, OVPN 200 Connection), VLAN, P2P Firewall Rules, Nat Rules, Hotspot Gateway (Unlimit User), Radius Client, Unlimited Queues, User Manager (Unlimit Active Session), Synchronous Interface, Core Router

Product code

CCR1009-7G-1C-1S+

CPU nominal frequency

1.2 GHz

CPU core count

9

Size of RAM

2 GB

10/100/1000 Ethernet ports

7

Number of USB ports

1

Power Jack

3

Supported input voltage

15 V - 57 V

PoE in

Yes

Voltage Monitor

Yes

CPU temperature monitor

Yes

PCB temperature monitor

Yes

Dimensions

444 x 175 x 47mm

Operating System

RouterOS

License level

6

Current Monitor

Yes

CPU

TLR4-00980CG-10CE-A3b

Max Power consumption

34W

SFP+ ports

1

USB slot type

microUSB type AB

USB Power Reset

Yes

Serial port

RS232 + Header

Storage type

NAND

Storage size

128 MB

CPU Threads count

9

รับประกัน

1 ปี

เงื่อนไขการ Support สำหรับอุปกรณ์ Mikrotik
