Mikrotik CRS326-24G-2S+RM Datasheet
Mikrotik CRS326-24G-2S+RM Quick Guide
SFP module compatible list
Product Specification | |

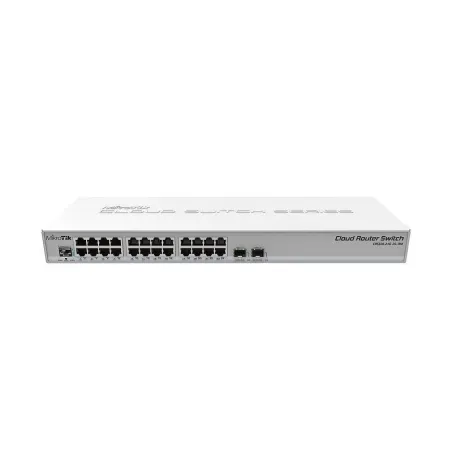

Overview | MikroTik Cloud Router Switch CRS326-24G-2S+RM 24 Port Gigabit, CPU 800MHz ROS LV.5, 2 Port SFP Plus และ รองรับการทำ Routing และ Managed Switch |
Product code | CRS326-24G-2S+RM |
Architecture | ARM 32bit |
CPU | 98DX3236A1-BTD4C000 |
CPU core count | 1 |
CPU nominal frequency | 800 MHz |
Dimensions | 440 x 144 x 44 mm |
License level | 5 |
Operating System | RouterOS / SwitchOS |
Size of RAM | 512 MB |
Storage size | 16 MB |
Storage type | FLASH |
SwOS Features | Non-blocking Layer 2 switching capacity |
Tested ambient temperature | -40?C .. +60?C |
Max Power consumption | 24W |
PoE in | Passive PoE |
PoE in input Voltage | 10-30 V |
Number of DC inputs | 2 (DC jack, PoE-IN) |
DC jack input Voltage | 10-30 V |
SFP+ ports | 2 |
Serial port | RJ45 |
รับประกัน | 1 ปี |
