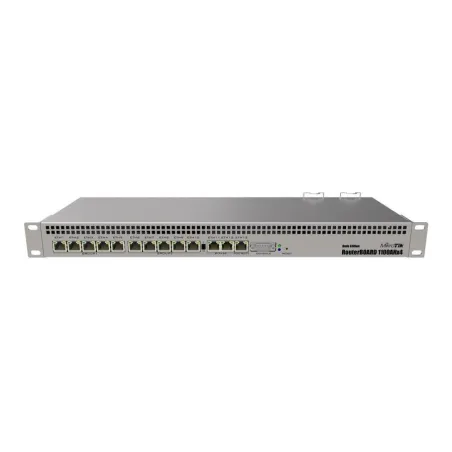

MikroTik RB1100Dx4 Dude edition CPU 4-Core 1.4GHz 13 Port Gigabit Ram 1GB LV 6 รองรับ Dude Package ใส่ Haddisk เพิ่มได้ Slot M.2, SATA3
สอบถามข้อมูลสินค้าเพิ่มเติม
LINE ID: @sysnet โทร: 02 102 4284
Click ต้องการใบเสนอราคา
รวมคู่มือการใช้งาน อุปกรณ์ Mikrotik มากกว่า 200 หัวข้อ
Mikrotik RB1100AHx4 Datasheet
Mikrotik Routerboard คืออะไร? ใช้ทำอะไรได้บ้าง?
Product Specification | |
Overview | MikroTik RB1100AHx4 Dude edition (1100Dx4) CPU 4-Core 1.4GHz 13 Port Giagbit Ram 1GB, Router OS LV 6, รองรับติดตั้ง Dude Package สามารถใส่ Haddisk เพิ่มได้ ทั้งแบบ Slot M.2 x 2 Slot และ แบบ Hardisk 2.5 inch SATA3 สำหรับเก็บ Proxy Cache , DUDE Software |
Product code | RB1100AHx4 Dude edition |
CPU nominal frequency | AL21400, 4 cores, 1.4GHz |
Size of RAM | 1GB |
Storage type | NAND |
Storage size | 128MB + 60GB m.2 SATA 3 drive included |
10/100/1000 Ethernet ports | 13 |
Ethernet bypass | Ethernet 11/12 |

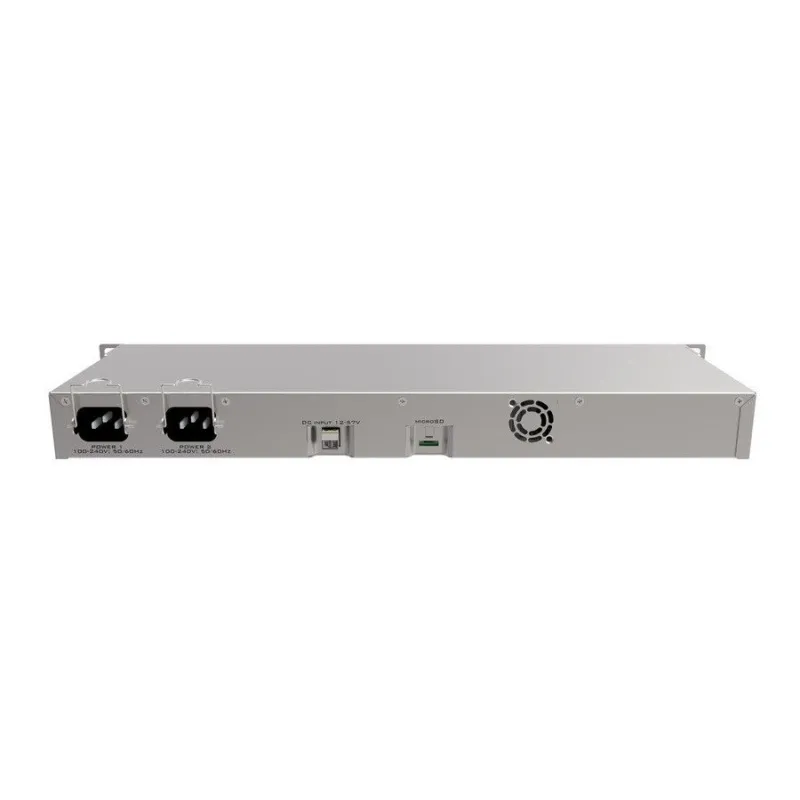

Power jack | 2x IEC. 100V - 240V |
DC telecom power | 20V - 57V (-48V supported) |
PoE input | Passive, 802.3at. 20 - 57V |
Redundant power supply | Yes |
Voltage monitor | Yes |
PCB temperature monitor | Yes |
Current monitor | Yes |
Dimensions | 444 x 148 x 47 mm |
Operating system | RouterOS, level 6 license |
Max Power consumption | 25W |
microSD | 1 |
SATA | 2x 2.5 inch SATA 3 |
M.2 slots | 2x SATA 3 compatible |
Serial port | RS232 |
Beeper | Yes |
รับประกัน | 1 ปี |
| |
