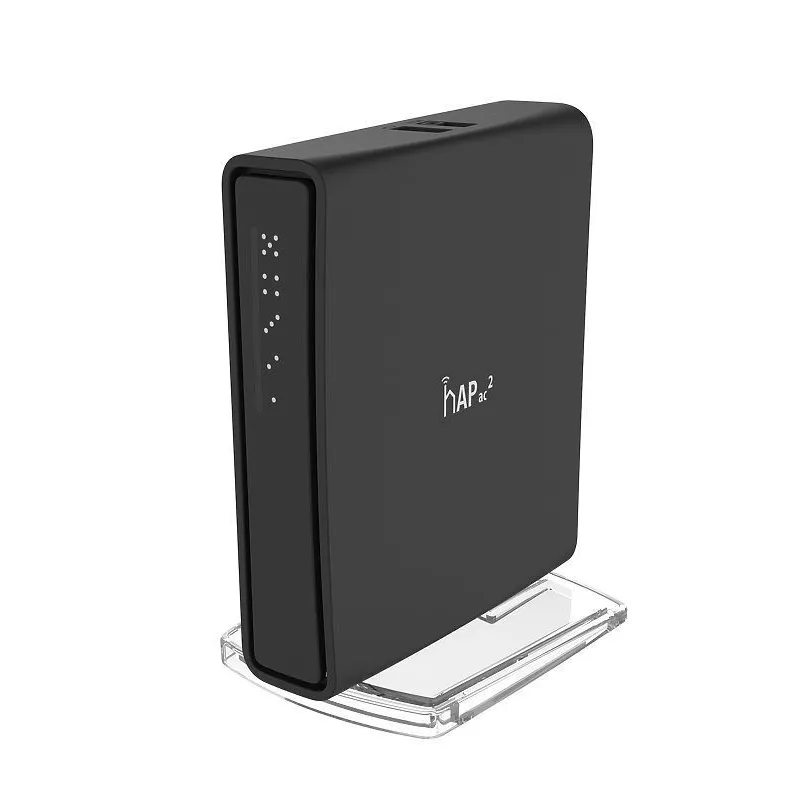

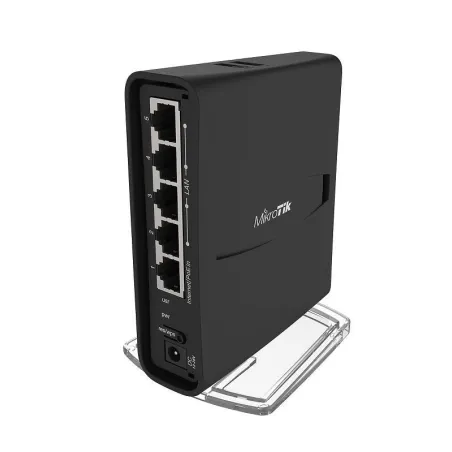

Mikrotik Router hAP ac2 ROS LV.4 CPU ARM 32Bit 716MHz Ram 128MB Wireless AC 5 Port Gigabit

Product Specification

Overview

Mikrotik Router hAP ac2 (RBD52G-5HacD2HnD-TC) CPU ARM 32Bit 716MHz Ram 128MB Wireless Dual-Band มาตรฐาน AC, Switch 5 port Gigabit รองรับ POE พร้อม Power Supply
รองรับระบบ Firewall, รองรับการจำกัดความเร็ว Internet แต่ละ Client (Bandwidth Management), Block Bittorrent, Dynamic Routing Protocol (RIP, OSPF, BGP), Secure Tunnel (EoIP, PPPoE, PPTP, L2TP, OVPN 200 Connection), VLAN, P2P Firewall Rules, Nat Rules, รองรับ Hotspot Gateway (Create 200 User), Radius Client, Unlimited Queues, Synchronous Interface, รองรับการทำ Radius Server และ Radius Client

Product code

RB962UiGS-5HacT2HnT

Architecture

MIPSBE

CPU

QCA9558

CPU core count

1

CPU nominal frequency

720 MHz

Dimensions

114 x 137 x 29mm

License level

4

Operating System

RouterOS

Size of RAM

128 MB

Storage size

16 MB

Storage type

FLASH

10/100/1000 Ethernet ports

5

SFP ports

1

Number of USB ports

1

Tested ambient temperature

-20C .. +60C

Max Power consumption

17W

PoE in

Passive PoE

PoE out

Passive PoE

PoE in input Voltage

11-57 V

Number of DC inputs

2 (DC jack, PoE-IN)

DC jack input Voltage

11-57 V

Wireless 2.4 GHz number of chains

3

Wireless 2.4 GHz standards

802.11b/g/n

Antenna gain dBi for 2.4 GHz

2.5

Wireless 2.4 GHz chip model

QCA9558

Wireless 5 GHz number of chains

3

Wireless 5 GHz standards

802.11ac

Antenna gain dBi for 5 GHz

2

Wireless 5 GHz chip model

QCA9880

USB Power Reset

Yes

USB slot type

USB type A

PCB temperature monitor

Yes

Voltage Monitor

Yes

Max Power consumption

15W

PoE in

Passive PoE

PoE in input Voltage

18-28 V

Number of DC inputs

2 (DC jack, PoE-IN)

DC jack input Voltage

12-30 V

Wireless 2.4 GHz number of chains

2

Wireless 2.4 GHz standards

802.11b/g/n

Antenna gain dBi for 2.4 GHz

2.5

Wireless 2.4 GHz chip model

IPQ-4018

Wireless 5 GHz number of chains

2

Wireless 5 GHz standards

802.11a/n/ac

Antenna gain dBi for 5 GHz

2.5

Wireless 5 GHz chip model

IPQ-4018

10/100/1000 Ethernet ports

5

Number of USB ports

1

USB Power Reset

Yes

USB slot type

USB type A

Max USB current (A)

1

รับประกัน

1 ปี, Adaptor 3 เดือน
