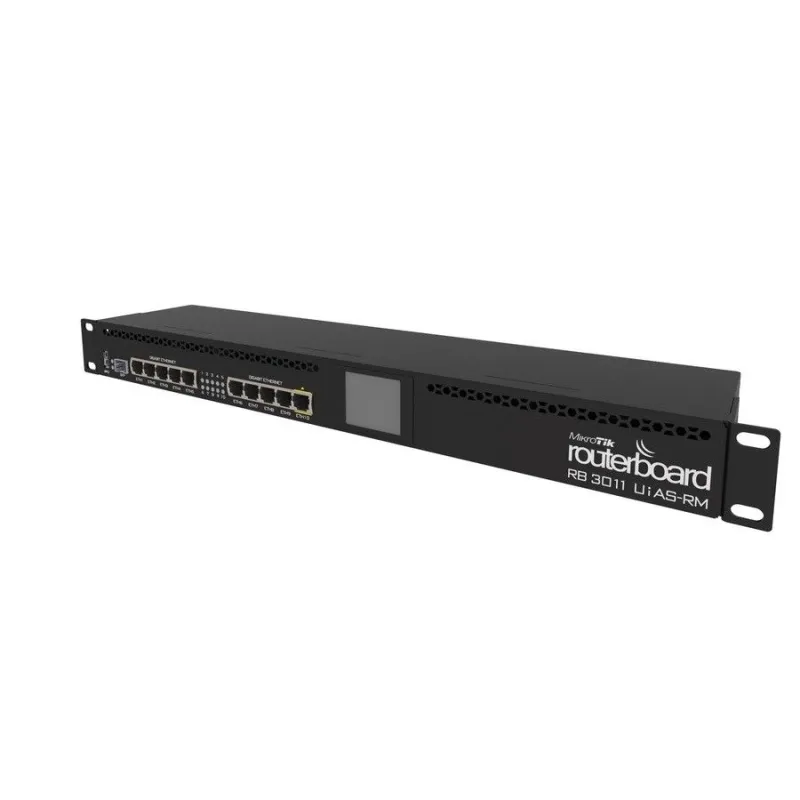

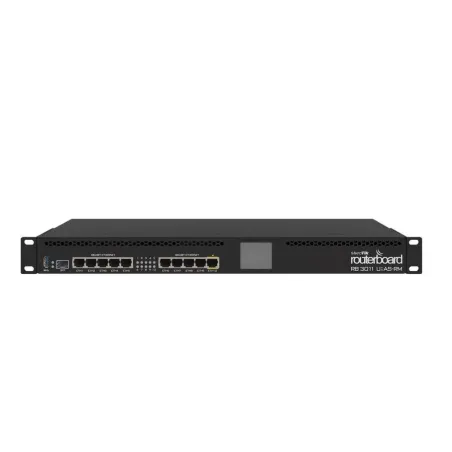

Mikrotik RouterBoard RB3011UiAS-RM CPU Dual-Core 1.4GHz Ram 1GB ROS Lv.5 10Port Gigabit

Product Specification

Overview

Mikrotik Router รุ่น RB3011UiAS-RM รองรับ Firewall, การจำกัดความเร็ว Internet แต่ละ Client (Bandwidth Management), Block Bittorrent, Dynamic Routing Protocol (RIP, OSPF, BGP), Secure Tunnel (EoIP, PPPoE, PPTP, L2TP, OVPN 200 Connection), VLAN, P2P Firewall Rules, Nat Rules, รองรับ Hotspot Gateway (Create 500 User), Radius Client, Unlimited Queues, Synchronous Interface

CPU

IPQ-8064-0-519FCBGA-TR-01-0 Dual-Core 1.4GHz

Operating System

MikroTik RouterOS v5, Level 5 license

Memory

1GB

Data storage

128 MB

Switch chip model

QCA8337-AL3C-R

Ethernet

10 Port 10/100/1000 Mbit Gigabit Auto-MDI/X

PoE in

Yes (passive only)

PoE out

Yes (port 10)

Voltage Monitor

Yes

PCB temperature monitor

Yes

Wireless

n/a

กำลังส่ง

n/a

Antenna

n/a

miniPCI

n/a

Serial port

1 Serial Port

SFP port

1 Port SFP

USB

USB 3.0 type A x 1 Port

LEDs

Power, NAND activity, Ethernet LEDs

Extras

Reset button, Reset jumper, RJ45 serial port, LCD panel, Temperature and Voltage sensors, powered micro-B USB connector

Power options

Jack 10-30VDC

Dimensions

443x92x44mm

Operating Temperature

-30C ถึง +70C

รับประกัน

1 ปี
