ยี่ห้อ: Ruijie Networks
Ruijie RG-E-130(GE) POE Injector 802.3at POE+ 53VDC 30W Port Gigabit
Ruijie RG-E-130(GE) POE Injector 802.3at POE+ 53VDC 30W Port Gigabit สำหรับจ่ายไฟให้กับอุปกรณ์ที่ใช้ POE มาตรฐาน 802.3af/at, Port Lan ความเร็ว Gigabit
Reyee RG-EAP602 Wireless Access Point แบบติดตั้งภายนอกอาคาร มาตรฐาน ac Wave 2 ความเร็ว 1.167Gbps, Port Lan Gigabit, กันน้ำกันฝุ่น มาตรฐานสูงที่สุด IP68 รองรับ Ruijie Cloud

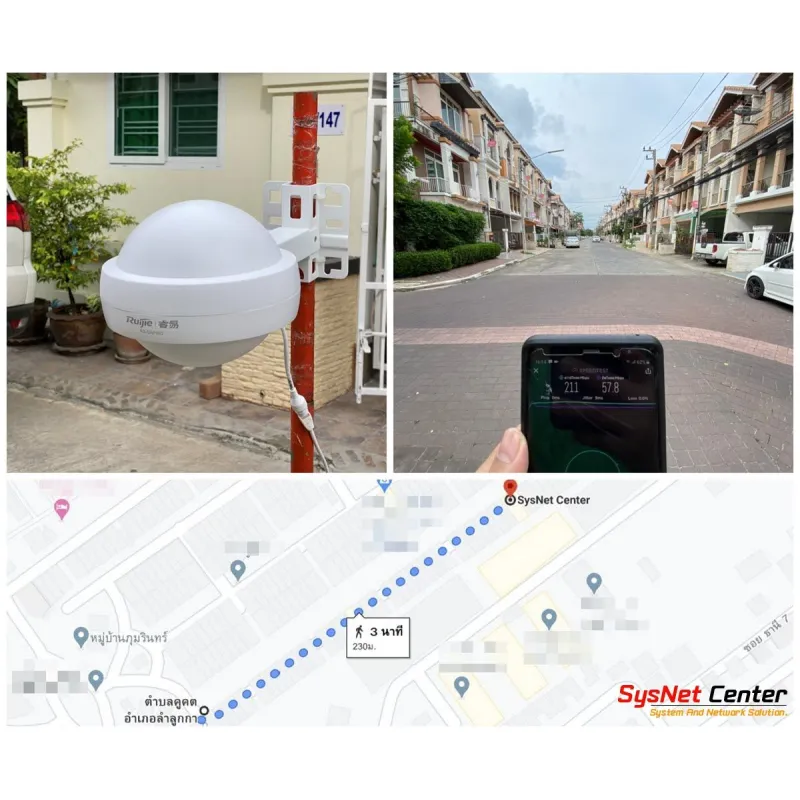

Review Ruijie Reyee EAP602 Access Point ระยะ 230 เมตร ความเร็ว 230Mbps
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud
Reyee Series Implementation Cookbook V1.0
Ruijie RG-EAP602 Access Point Datasheet
Ruijie Reyee Series Access Points Web-Based Configuration Guide
Ruijie RG-EAP602 Series Access Points Hardware Installation and Reference Guide
คู่มือการใช้งาน Ruijie Cloud App V7 บน Smartphone Android/iOS
Product Specification | |

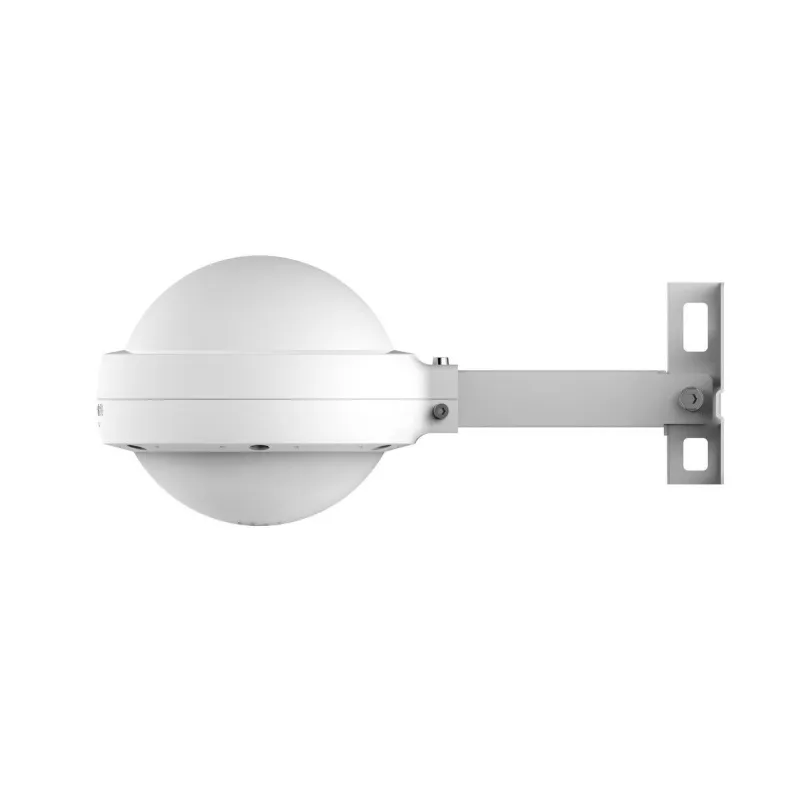

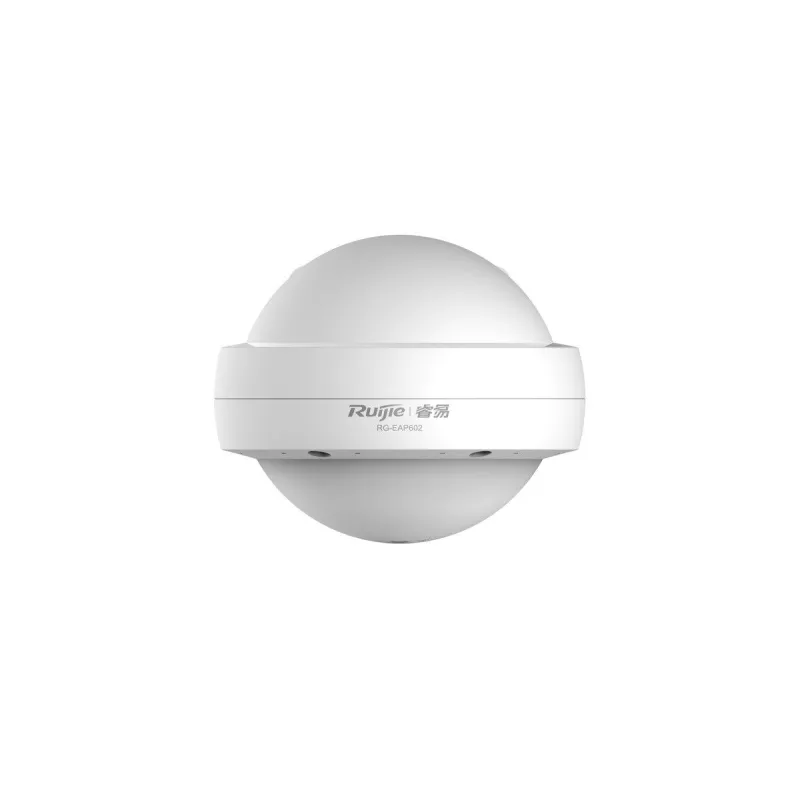

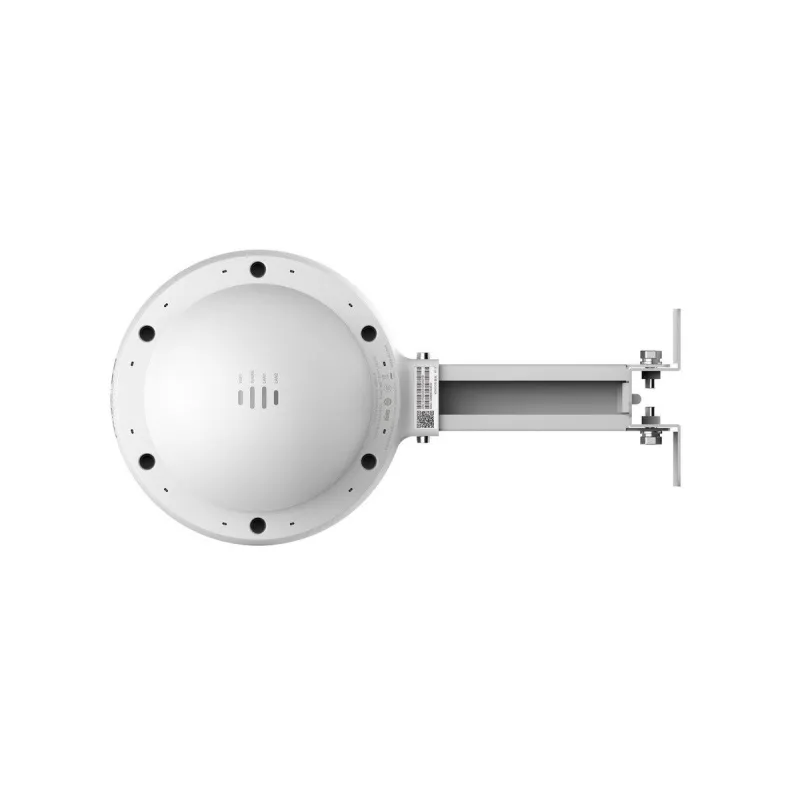

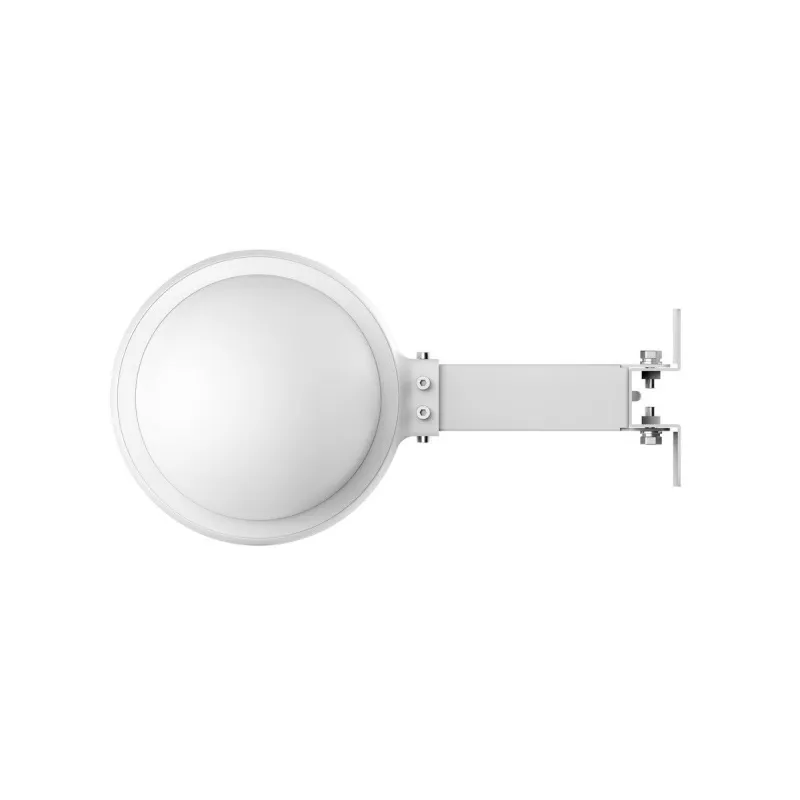

Overview | Reyee RG-EAP602 Outdoor Wireless Access Point แบบติดตั้งภายนอกอาคาร มาตรฐาน ac MU-MIMO Wave 2 ความเร็ว 1.167Gbps, Port Lan Gigabit, กันน้ำ กันฝุ่น มาตรฐานสูงที่สุด IP68 พร้อม Ruijie Cloud License แบบ Lifetime |
Model | RG-EAP602 |
Radio | 2.4GHz & 5GHz dual-band dual-stream |
Protocol | 2.4GHz: 802.11 b/g/n;5GHz: 802.11a/b/g/n/ac |
Spatial Streams | 2.4GHz: 2 Spatial Streams, 2x2 MIMO 5GHz: 2 Spatial Streams, 2x2 MIMO |
Max Throughput | 2.4GHz: 300Mbps |
Transmit Power | <500mw |
Dimensions | 200mm*220mm*166mm (excluding mounting kits) |
Weight | 1kg (excluding mounting kits) |
Service Ports | 2 x 10/100/1000Mbps Ethernet ports (one of which supports 802.3af/at PoE) |
Reset | Reset button |
LED Indicators | Wi-Fi indicator, warning indicator, LAN1 connection indicator, LAN2 connection indicator |
Power Supply | 802.3af หรือ 802.3at (Not Include) |
Built-in Antennas | Built-in Omnidirectional antennas (basic gain 3dBi) |
Power Consumption | 12.95W |
Coverage Radius | Open and unobstructed direction: (the actual coverage distance may vary according to different obstruction situations and different performances of wireless terminals) |
Surge Protection | 6000V |
IP Rating | IP68 |
Environment | Operating temperature: -30°C~65°C |
MTBF | 250000H |
WLAN | Maximum number of clients: 164 |
Security | Support PSK authentication |
Routing | Support static IP address and DHCP |
Management and maintenance | Support local or remote management with app |
Platform management features | Automatic RF adjustment via the platform |
ประกัน | 3 ปี |
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud | ||
Presales Tools | Support | Support |
Fast Provisioning | Scan QR-code Device | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | WAN Load Balance | WAN Load Balance |
Gateway Authen | Local Authen (Captive Portal) | Local Authen (Captive Portal) |
Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway | ||
Multi-tenant | Support | Support |
Scenario-based | N/A | Support (App) |
Wireless | ||
Standard | WIFI 4 (n) | WIFI 5 Wave2 (ac) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet | ||
WLAN Features | L2/L3 Roaming | L2 Roaming |
WLAN Controller | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink |
L2 | IGMP Snooping | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A< |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
Model | ||||||
สัญญาณครอบคลุม | 20 เมตร | 20 เมตร | 30 เมตร | 30 เมตร | 30 เมตร | 30 เมตร |
จำนวน Clients ที่แนะนำ | 40 | 80 | 48 | 80 | 100 | 100 |
มาตรฐาน WIFI | 802.11b/g/n/ac | 802.11b/g/n/ac | 802.11ac wave2 | 802.11ac wave2, wave1 | 802.11ax | 802.11ax |
ความเร็วสูงสุด (2.4GHz) | 400Mbps | 400Mbps | 400Mbps | 400Mbps | 574Mbps | 800Mbps |
ความเร็วสูงสุด (5GHz) | 867Mbps | 867Mbps | 867Mbps | 867Mbps | 1201Mbps | 2402Mbps |
กำลังส่งสูงสุด (2.4G) | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW |
กำลังส่งสูงสุด (5G) | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW | 20dBm = 100mW |
จำนวน SSID | 8 | 8 | 8 | 8 | 8 | 8 |
Spatial Streams | 2.4G: 2x2 MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 2x2MIMO | 2.4G 4x4 MIMO |
Antenna | PCB antenna | PF antenna | Array antennas 2.4G: 2dBi | Array antennas | Internal antennas 2.4G: 3dBi | Internal antennas 2.4G: 3dBi |
Service Ports | Front: Rear: | Front: Rear: | 2 Port 10/100 Mbps PoE/LAN1 port supports PoE | 2 Port 10/100/1000 Mbps | 2 Port 10/100/1000 Mbps | 1 Port 10/100/1000M/2.5G supports PoE; 1 Port 10/100/1000Mbps |
SON Number | 150 | 150 | 150 | 300 | 300 | 300 |
Power Supply | PoE 803.1af | PoE 803.1af | PoE 803.1af | PoE 803.1af | PoE 803.1at | PoE 803.1at |
Port Aggregation | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
VLAN | Support | Support | Support | Support | Support | Support |
Port Base VLAN | Support | Support | Not Support | Not Support | Not Support | Not Support |
DHCP Snooping | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
ARP Check | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
IP Source Guard | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
LLDP | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
Static ARP Bind | Support | Support | Support | Support | Support | Support |
ARP Proxy | Support | Support | Support | Support | Support | Support |
Ping | Support | Support | Support | Support | Support | Support |
Traceroute | Support | Support | Support | Support | Support | Support |
NAT | Support | Support | Support | Support | Support | Support |
Static Route | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
DHCP Server | Support | Support | Support | Support | Support | Support |
Telnet | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
SSH | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
รองรับการจัดการผ่าน Ruijie Cloud | Support | Support | Support | Support | Support | Support |
รองรับการจัดการผ่าน Ruijie Cloud APP | Support | Support | Support | Support | Support | Support |
802.1x | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
PPPoE | Support | Support | Support | Support | Support | Support |
Same SSID with differnet VLAN | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
Same VLAN with differnet SSID | Support | Support | Support | Support | Support | Support |
L2 Roaming | Support | Support | Support | Support | Support | Support |
L3 Roaming | Support | Support | Support | Support | Support | Support |
Global whitelist/blacklist | Support | Support | Support | Support | Support | Support |
SSID-based whitelist/blacklist | Support | Support | Support | Support | Support | Support |
Wireless bridge | Not Support | Not Support | Not Support | Not Support | Not Support | Not Support |
PoE Out | Not Support | Support | Not Support | Not Support | Not Support | Not Support |
