Ruijie RG-EG Series Routers Datasheet
Product Specification | |

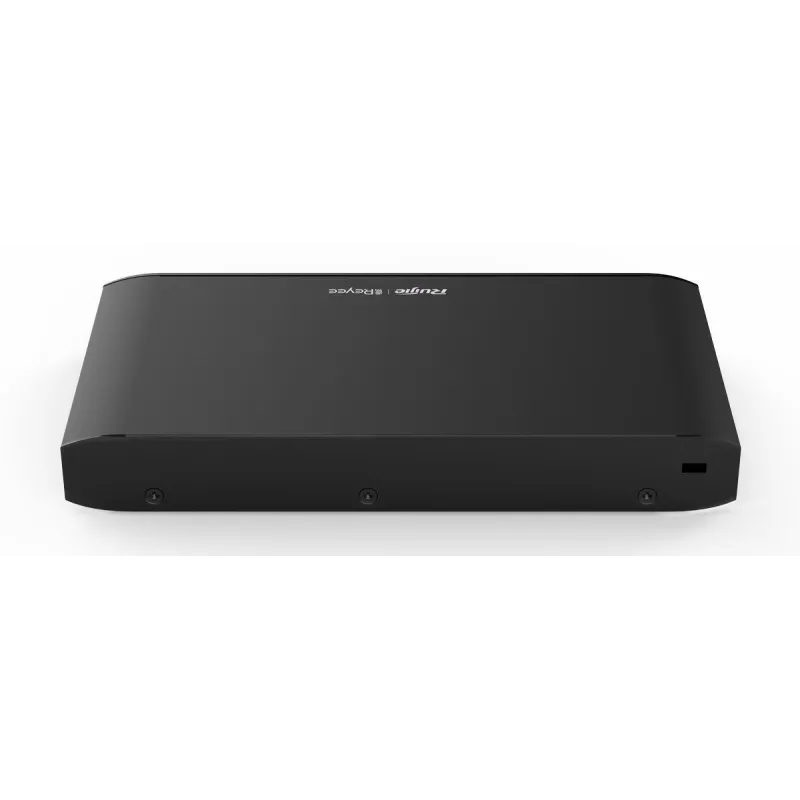

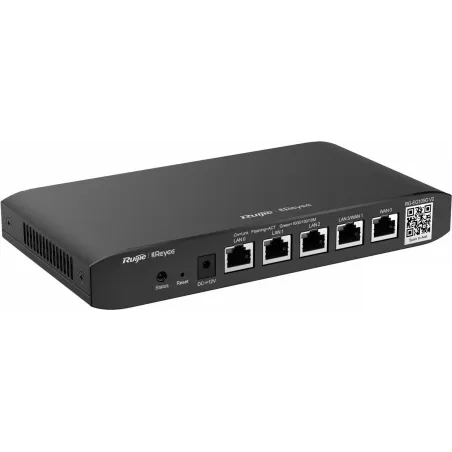

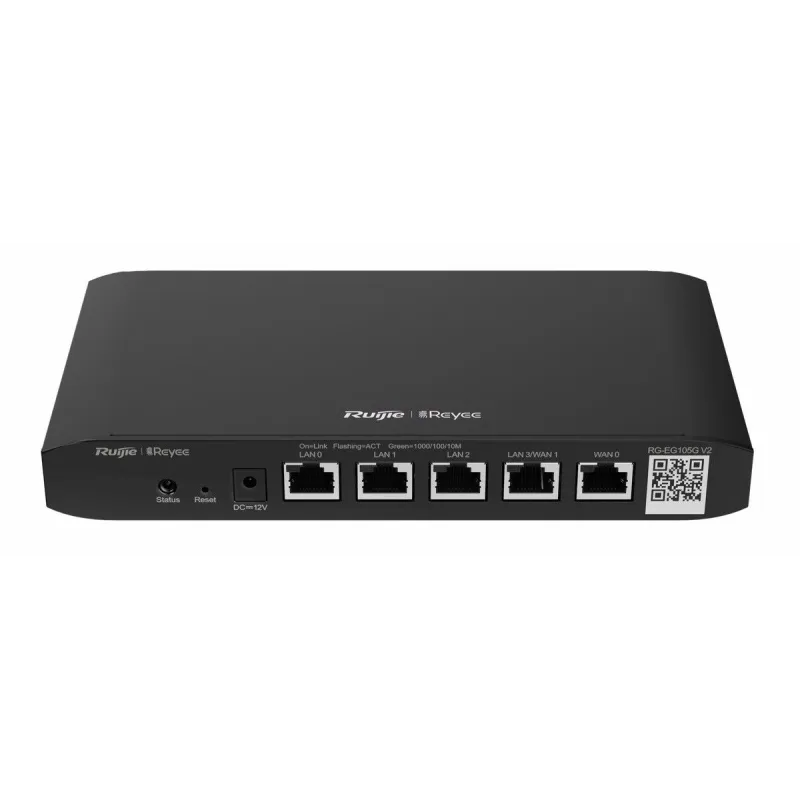

Overview | Reyee RG-EG105G V2 Cloud Managed Router 2 Wan, 4 Port Gigabit รองรับ 100 Concurrent users, Throughput 600Mbps, IPSec VPN 8 Tunnels, ทำ Captive Portal
รองรับการ Managed และ Monitor by Ruijie Cloud มาพร้อม Cloud License ตลอดชีพ |
Fixed ports | 5 Port 10/100/1000M Base-T, supporting up to 2 WAN ports |
RAM | 128MB |
Flash | 16MB |
PoE | - |
Maximum number of clients | Up to 100 concurrent clients |
Recommended bandwidth | 600M asymmetric bandwidth (flow control disabled) |
Local power supply | Support 220V AC local power supply |
Power consumption | <6W |
Basic network features | |
Network access | PPPoE dial-up, DHCP client, static IP, automatic identification of access methods, automatic avoidance of WAN port address conflicts, MAC cloning, obtaining account passwords from existing routers |
Routing | Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams |
Security | ACL, IP-MAC binding, MAC address filtering, dynamic ARP, static ARP binding, NAT, NAPT, port mapping |
Other protocols | DHCP Server, DHCP Client, DHCP Option43 / 138, DNS Client, DNS Server, DNS Proxy, TFTP, NTP, DDNS |
Gateway | |
Application recognition | Built-in self-developed application signature database to identify applications |
Flow control | Support custom flow control policies, IP-based automatic bandwidth assignment |
Traffic audit | Real-time traffic audit, IP traffic visualization |
Behavior management | Time-based and IP policy-based access control |
VPN | IPsec VPN (8 tunnels) server and client |
Wireless management | |
Management capacity | In AC mode, the maximum management capacity is 300 |
AP management | Support multi-SSID configuration, SSID hiding, channel setting, power setting, AP wired port setting, AP online upgrade, STA quantity setting, STA blacklist and whitelist |
Roaming | Support local forwarding roaming, Layer 2 roaming, Layer 3 roaming between APs, viewing of STA roaming track |
Switch management | |
Management capacity | Maximum manageable cloud managed switches: 128 |
Port management | Loop protection, port mirroring, port isolation, port configuration, PoE configuration, port limit, storm control, static MAC, MAC search |
Status display | Port statistics, monitoring information, cable detection, VLAN configuration, MAC list |
Device management | Per-device upgrade, batch upgrade |
Special features | |
Featured solutions | Single-cable IPTV solution, port service VLAN and network segment isolation solution, smart fault diagnosis solution, intranet penetration solution, auto-networking solution |
Flexible management | Eweb and Ruijie Cloud |
Physical specifications | |
Dimensions | 206.5×108.5×28 (mm) |
Weight | 0.84kg |
Temperature | Operating temperature: 0 - 40C |
Humidity | Operating humidity: 10% ~ 90% (non-condensing) |
ประกัน | 3 ปี, Adapter 1 ปี |
รับติดตั้ง , Setup ระบบเชื่อมต่อเครือข่ายระหว่างสาขาด้วย VPN Site To Stite
ระบบจะทำการเชื่อมวง Network แต่ละสาขาเข้าด้วยกัน สามารถ Share File, Printer, Database, VOIP
Share File / Printer ระหว่างสาขา
โทรศัพท์ระหว่างสาขาหากันฟรีด้วย VOIP ผ่าน VPN
ใช้ Smart-Phone เชื่อมเครือข่ายกับสาขาด้วย VPN Client To Site ถ้าใช้ร่วมกับ App Zoiper โทรผ่าน VOIP ทำให้โทรหาสาขาได้ฟรี
เชื่อมต่อฐานข้อมูลที่เป็น RDBMS เช่น MS SQL, Oracle, MySQL ได้ง่าย โดยการสร้าง Connection String ชี้ไปที่ Databse Server ได้เลย
ความเร็วในการเชื่อมต่อ VPN ได้เทียบเท่าค่า Upload ตาม Package ที่สมัคร
Feature | Ruijie Enterprise | Reyee |
Ruijie Cloud | Support | Support |
Mobile App | Support | Support |
Review Ruijie Cloud ระบบ Managed & Monitor อุปกรณ์ Ruijie ผ่าน Cloud | ||
Presales Tools | Support | Support |
Fast Provisioning | Scan QR-code Device | Self-organizing network (SON) |
Monitoring & Alarm | Support | Support |
Device Management | Additional: | Basic |
Gateway Management | WAN Load Balance | WAN Load Balance |
Gateway Authen | Local Authen (Captive Portal) | Local Authen (Captive Portal) |
Review Ruijie RG-EG3230/RG-EG3250 Loadbalance Gateway | ||
Multi-tenant | Support | Support |
Scenario-based | N/A | Support (App) |
Wireless | ||
Standard | WIFI 4 (n) | WIFI 5 Wave2 (ac) |
Capacity | Max Client 1024 (Wi-Fi 6) | Max Client 128 |
WLAN Auth | 802.1x Auth | PSK/WPA2 |
Review Ruijie Cloud WIFI Authentication ระบบ Login เข้าใช้งาน Internet | ||
WLAN Features | L2/L3 Roaming | L2 Roaming |
WLAN Controller | Yes | Yes |
Switches | ||
Capacity | Chassis model option (upto 48 10GE) | Box Switches model (upto 24GE +10G uplink |
L2 | IGMP Snooping | VLAN |
L3 | IPv6, RIP, OSPF, PBR, VRRP | N/A< |
Security / Availability | 802.1x, CPP/NFPP, REUP, VSU | N/A |
Management | Managed with Web & CLI (Console port), SSH, SNMP | Web Smart Managed & Unmanaged |
